Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine

KAYA INTERNATIONAL HK LIMITED / 2022-07-05

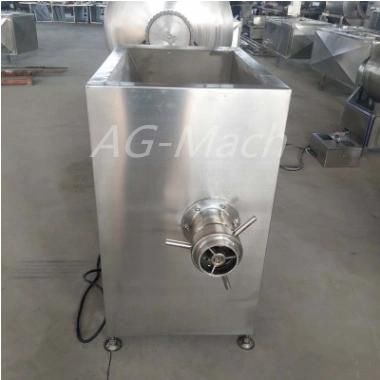

Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine

  • Power Source:Electric
  • Automatic Grade:Automatic
  • Type:Meat Grinder
  • Voltage:380V
  • Customized:Non-Customized
  • Model:Jr-D120

=== Base Info ===

  • Model NO.:JR-D120
  • Production Volume:800-1000(Kg,H)
  • Power:7.5 Kw
  • Power Supply:380V 50Hz
  • Weight:380kg
  • Dimension:1020*800*1020(mm)
  • Keywords 1:Meat Grinder
  • Keywords 2:Meat Grinder in Meat Processing Machinery
  • Keywords 3:Electric Meat Grinder
  • Keywords 4:Stainless Steel Meat Grider
  • Keywords 5:Meat Cutting Machine
  • Transport Package:Wooden Case
  • Specification:1020*800*1020(mm)
  • Trademark:AG
  • Origin:China
  • Production Capacity:20 Sets Per Month

=== Description ===

Basic Info.

Model NO. JR-D120 Production Volume 800-1000(Kg/H) Power 7.5 Kw Power Supply 380V 50Hz Weight 380kg Dimension 1020*800*1020(mm) Keywords 1 Meat Grinder Keywords 2 Meat Grinder in Meat Processing Machinery Keywords 3 Electric Meat Grinder Keywords 4 Stainless Steel Meat Grider Keywords 5 Meat Cutting Machine Transport Package Wooden Case Specification 1020*800*1020(mm) Trademark AG Origin China Production Capacity 20 Sets Per Month

Product Description

Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat grinder /food grinder machine
Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine

Product Description:

1.The meat grinder is a meat processing equipment with a wide range of versatility in the meat production industry.
2.The utility model relies on the screw to push the raw meat in the hopper box to the pre-cutting plate, and the rotary plate of the screw makes the     orifice plate and the reamer relatively operate, thereby cutting the raw meat into a granular shape, ensuring the uniformity of the meat filling. 3.Different types of meat fillings can be achieved by different combinations of orifice plates.


Technical Parameters:
ModelJR-D120
Production volume (kg/h)800-1000
Power7.5 KW
Power supply (v/hz)380V 50HZ
Weight380KG
Dimension1020*800*1020(mm)

Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder MachineFrozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine

Working Principle:

1. The meat grinder is the most common cutting machine in meat processing.
2. The raw material in the hopper box is pushed to the pre-cutting plate by the screw, and the rotation of the screw causes the reamer and the   orifice to move relative to each other.
3. The raw material is cut into a pellet shape to ensure the uniformity of the meat.
4. The main body of the meat grinder is made of stainless steel, with reasonable equipment structure, stable and reliable mechanical properties   and low noise.
5. The large meat grinder can cut fresh meat and frozen meat. According to the process requirements, the user can select different specifications     of the orifice plate to process the ideal meat filling to meet the processing needs of different meat products.
6. All parts in contact with meat: such as hopper, main knife seat and casing are made of stainless steel, fully comply with food hygiene         requirements, high strength, no deformation, stable performance and easy to clean.


Advantages of the meat grinder:

1. Good versatility, wide application range and high production efficiency;
2. It has the function of frozen meat and meat, saving time, labor, preservation and quality;
3. The cutter cutting process is short in time and low in temperature rise, which is conducive to preservation and prolongs the shelf life.


Detailed of the meat grinder:
Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine
Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine
Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder MachineFrozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine

The function of the meat grinder:

1. Stir-frozen function

2. positive and negative function, so that the probability of blocking the meat grinder is zero;
3. a variety of orifice plate combination, more suitable for different meat products.


Scope of Application:

1. The meat grinder produced by our factory is exquisite, beautiful, sturdy and durable, easy to operate, easy to use and high in efficiency.
2. It is an ideal helper for restaurants, restaurants, restaurants, canteens, butchers and modern families.
3. It is widely used, new design, scientific and environmentally friendly, and has a long service life.
4. According to the market's many years of investigation and customer's response requirements, the meat grinder produced by our factory has     been equipped with stainless steel blades after a long period of market inspection, effectively solving the problem of rusting of the blades and the   hole.


Raw Marerial:
Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine
Frozen Fresh Pork /Beef/Chicken/Fish/Sausage Meat Grinder /Food Grinder Machine

Feature:


1. This machine is an essential equipment for meat processing.
2. It can directly cut the unthawed meat pieces into different sizes of meat, and prepare for the mixing or mixing.
3. Since it does not need to be thawed, it maintains nutrients and meat flavor.
4. The material channel and the hopper are integrated into one body.
5. The meat portion and the outer package are all made of high quality stainless steel, which is bright and flat, easy to clean and meets food     hygiene requirements.
6. The auger shaft has a large lead, large inlet, smooth feed and high production efficiency.
7. The design is reasonable, the friction force is small during the twisting process, the meat temperature rise is low, and the preservation is good.
