Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank

NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD. / 2022-07-05

Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank

  • Usage:Biscuit, Cake, Pizza, Bread, Food Industry
  • Power Source:Gas
  • Timing Device:Without Timing Device
  • Type:Mixer
  • Voltage:All
  • Customized:Customized

=== Base Info ===

  • Model NO.:KQ 1000
  • Name:Steam Tank Jacketed Tank Heating Tank Reaction Tan
  • Agitator Speed:36rpm, 48rpm, 960rpm
  • Stainless Steel Degree:SS304,Ss316
  • Heating and Mixing Tank:for Heating and Mixing Liquid, Liquid and Powder
  • Names:Jacketed Tank Price
  • Size:50L to 10000L
  • Heating:Electric ,Steam,Gas
  • Wall:Double ,Jacketed
  • Certification:Ce & ISO
  • Orign:Shanghai China
  • Transport Package:Standard Export Wooden Box
  • Specification:ISO
  • Trademark:KQ
  • Origin:Shanghai China
  • HS Code:8479820090
  • Production Capacity:200L To30000L

=== Description ===

Basic Info.

Model NO. KQ 1000 Name Steam Tank Jacketed Tank Heating Tank Reaction Tan Agitator Speed 36rpm, 48rpm, 960rpm Stainless Steel Degree SS304,Ss316 Heating and Mixing Tank for Heating and Mixing Liquid, Liquid and Powder Names Jacketed Tank Price Size 50L to 10000L Heating Electric /Steam/Gas Wall Double /Jacketed Certification Ce & ISO Orign Shanghai China Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 200L To30000L

Product Description

Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank
 Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank
Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank
Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank

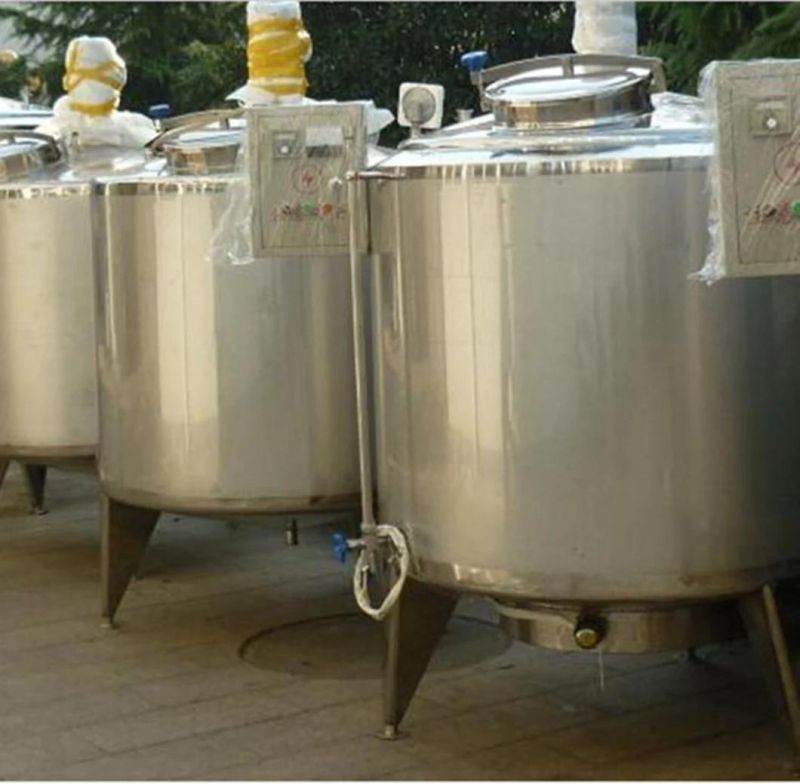

Three-layered cooling and heating tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.
Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL: 50MM
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor
Agitator blending tank
1. More than 10 years experience
2. Capacity: 100-5000L
3. Manufacturer
4. Custom-made solution
OEM is welcome too.
1sugar mixing tank
TankCapacity(L)200, SS304300, SS304500, SS3041000,SS304
REV36r/min36r/min36r/min36r/min
Electric motor of the agitator0.55KW,380v,50hz0.75KW,380v,50hz0.75KW,380v,50hz1.1KW,380v,50hz

Heating Area(M2)0.91.11.94.5
Material Input/output(DN MM)38383850
OUTSIDE DEMENSION(L*W*H)MM900*900*16001000*1000*15001100*1100*17001400*1400*1750
GROSS WEIGHT(KGS)150200300450
Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank
Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank
Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank

Steam heating chemical agitator tank blending tank
PME Multi-function Blending Reactive Mixer/ vacuum homogenizer mixer

High speed disperser, might mixing and disperse viscously. Solid and liquid raw material can dissolve material which is hard to dissolve such as AESAESALSA during liquid production which can save energy consumption and shorten production period.
Main blender adopts stepless speed variator device and under low temperature and high viscosity condition, less air bubble will be formed;
It is suitable to produce liquid washing products;
It can give out material directly or matched with screw pump.
Double wall steam heating tank
Le-layer tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process indusries used as blender tank, buffer tank, and storage tank, which cleanable to sanitary standards.
Doublewall steam heating tank configuration:
Manhole
CIP cleaner
Adjustable trangle bracket
Ladder
The rmometer
Liquid lever meter and controller
Eddy-proof board
Dismountable inlet assembly
Sanitary breathing cover
Specifications
We can supplies single-layer, dual-layer, and three-layer stainless tanks with or with out agitation to blend product.

Specifications
Product name: Blending tank / Mixing tank
MOQ: 1 set
MOC: Stainless steel grade 304/306L
OEM experience: 30yea
Product Name
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Remarks
It can be made according to special requirements of customers.
We can design the products according to your special request.
Steam Tank Jacketed Tank Heating Tank Reaction Tank Mixing Tank .
