Enclosed 3W UV Laser Machine Marking Machine for Medical Plastic Cover

• Laser Visibility：Invisible
• Applicable Material：Nonmetal
• Cooling System：Air Cooling
• Technical Class：Continuous Wave Laser
• Laser Wavelength：UV Laser Marking Machine
• Laser Classification：Semiconductor Laser

=== Base Info ===

• Model NO.：LS-UV-3
• Type：Semiconductor Laser Marking Machine
• Marking Method：Scanning Marking
• Transport Package：Wooden Case
• Specification：680*220*500mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

=== Description ===

Basic Info.

Model NO. LS-UV-3 Type Semiconductor Laser Marking Machine Marking Method Scanning Marking Transport Package Wooden Case Specification 680*220*500mm Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / Month

Product Description

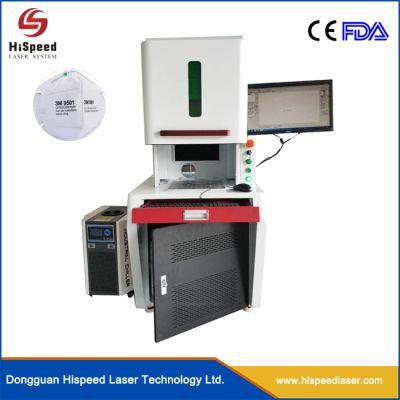

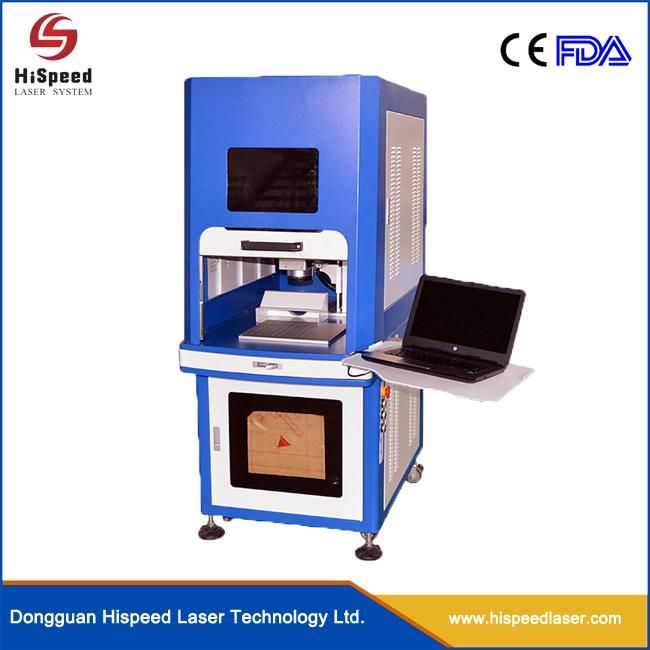

3W Enclosed UV Laser Marking Machine for Medical plastic cover



>>>>>>Machine Features<<<<<<

UV laser marking machine Features

1. The high beam quality and light spot is very small, can realize the ultra fine and precise engraving;

2. Perfect marking quality: 355 nm wavelength output to reduce the thermal effect of machined part; high precision galvanometer marking head, fine marking effect and it's able to repeatable processing; High precision light spot ensure the perfect marking results; Marking process non-contact, marking effect is permanent;

3. Heat affected area is very small, there will be no heating effect, material is not deform and burning;

4. Fast marking speed, and high efficiency

5. The whole machine performance is stable, small volume and low power consumption.

6. More suitable to process the materials of big reaction thermal radiation; Cooperate with production line, automatic up-down , and automatic feeding and unloading;

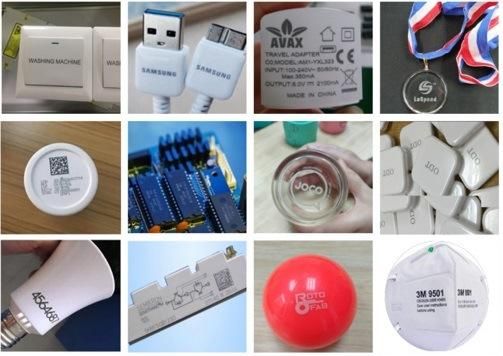

Applicable materials
High-end electronic logo marking: charger, wires, mobile phone accessories, computer accessories; Food, PVC pipes, pharmaceutical packaging materials (such as HDPE, PO, PP) marking; Flexible PCB marking; Metal or nonmetal coating removal; Porous silicon wafers and the blind hole processing and scribing; Fire prevention materials marking; Other plastic material marking.





Model	UV-3/UV-5/UV-10
Power	3W,5W,10W
Wavelength	355nm
Beam Quality	M2<1.3
Output Power	10%-100%
Output Frequency	15KHz-100KHz
Power Stability(8h)	<±2%rm
Pulse to pulse instabilit	<±3%rms
Spatial Mode	TEMoo(M2<1.3)
Beam Divergence	<2 mrad (full angle)
Beam Diameter	0.6±0.1mm
Beam Roundness	>90%
Pointing stability	<50urad
Polarization Direction	Horizontal
Polarization Ratio	100:1
Cooling	Air-cooling/Water-cooling(8W)

>>>>>>Exhibition<<<<<<

>>>>>>Company Information<<<<<<

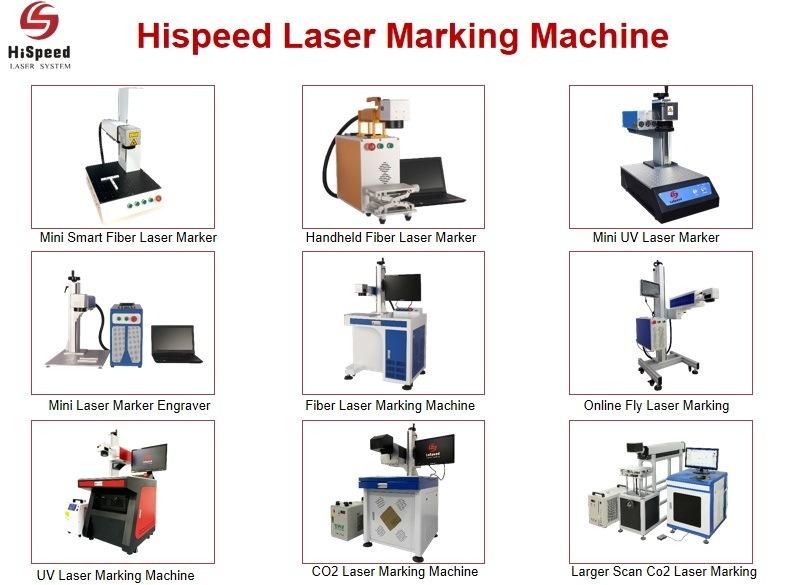

HiSpeed Laser Company is a modern professional Hi-Tech enterprise, specializing in manufacturing of Fiber Laser Marking Machine,CO2 Laser Marking Machine,UV Laser Marking Machine, Portable Laser Marking Machine,Mini Handheld Laser Machine,and Laser Engraver Machine, Laser Tube, Laser Power Supply, Laser Optics and Laser accessories etc.


Lospeed Laser mainly product is including:
UV Laser Marking Machine for Glass Ceramic Cup Mobile Communications Factory PriceLaser Marking Machine, Laser Engraving Machine,Fiber Laser Marking Machine 20W 30W 50W 60W , Mini Laser Engraver, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer,Laser Rotary Table,3D Laser Table,Laser Rotary Chuck,Laser accessories etc.

>>>>>>Contact Us<<<<<<

Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.

Please advise us following inforamtion to recommend you most suitable machine:

1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
