Dimple Segment Diamond Core Drill/Diamond Tool/Core Drill Bit
Pinghu Kaixin Plastic Industry Co., Ltd. / 2022-06-27
- Type:Core Drill
- Usage:Masonry Drilling, Concrete Drilling
- Certification:SGS
- Manufacturing Technology:Laser Welding
- Segment Height:10mm
- Application:Wet Drilling Concrete, Reinforced Concrete
=== Base Info ===
- Model NO.:CWDD
- Install Quipment:Stand Driller, Hand-Held Driller
- Transport Package:Carton, Pallet
- Specification:25mm-350mm
- Trademark:COREDIAM
- Origin:China
- HS Code:82071910
- Production Capacity:2000 Pieces Per Month
=== Description ===
Basic Info.
Model NO.
CWDD
Install Quipment
Stand Driller, Hand-Held Driller
Transport Package
Carton, Pallet
Specification
25mm-350mm
Trademark
COREDIAM
Origin
China
HS Code
82071910
Production Capacity
2000 Pieces Per Month
Product Description

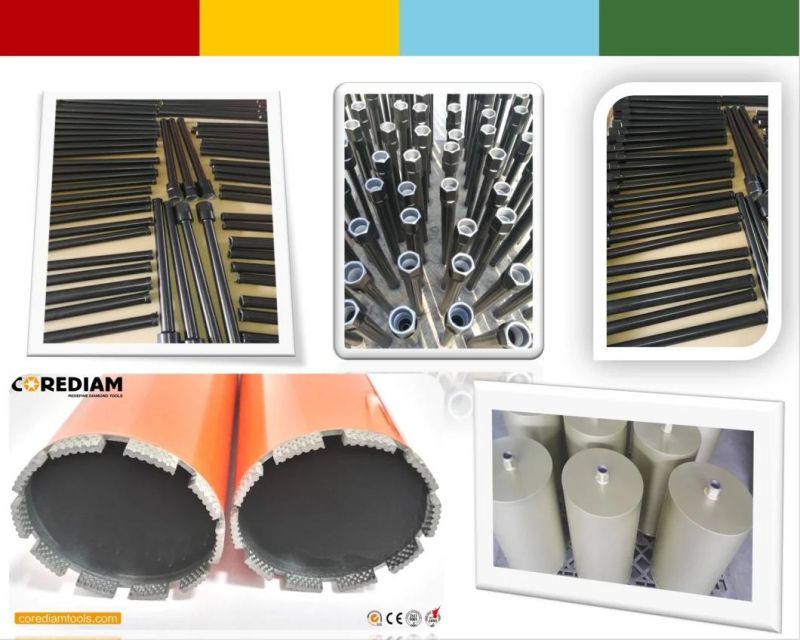

1. Brazed diamond core drill introduction
Brazed Wet Dimple Segment Core Drill is laser welded, the segment type is profiled turbo segment, which has fast drilling speed, also this laser-welded wet core drill has long drilling life.
Common sizes of laser welded diamond core drills are ranging 1 '' (25mm) to 14''(350mm) in size.
The core drill is used for professionally wet drilling kinds hardness of concrete, reinforced concrete.
Special turbo segments design make the segments have very excellent sharpness, achieving fast drilling.
Segments height, working length, and connection type can be adjustable on your request. 2.SpecificationItem No. | Diameter | Segment Height | Arbor | Effective Length |
CWDD03245010 | 32mm | 10 | 1 1/4"-7 | 450mm |
CWDD03645010 | 36mm | 10 | 1 1/4"-7 | 450mm |
CWDD04245010 | 42mm | 10 | 1 1/4"-7 | 450mm |
CWDD05245010 | 52mm | 10 | 1 1/4"-7 | 450mm |
CWDD06245010 | 62mm | 10 | 1 1/4"-7 | 450mm |
CWDD07245010 | 72mm | 10 | 1 1/4"-7 | 450mm |
CWDD08245010 | 82mm | 10 | 1 1/4"-7 | 450mm |
CWDD09245010 | 92mm | 10 | 1 1/4"-7 | 450mm |
CWDD10245010 | 102mm | 10 | 1 1/4"-7 | 450mm |
CWDD11245010 | 112mm | 10 | 1 1/4"-7 | 450mm |
CWDD12745010 | 127mm | 10 | 1 1/4"-7 | 450mm |
CWDD13245010 | 132mm | 10 | 1 1/4"-7 | 450mm |
CWDD15245010 | 152mm | 10 | 1 1/4"-7 | 450mm |
CWDD16245010 | 162mm | 10 | 1 1/4"-7 | 450mm |
CWDD17245010 | 172mm | 10 | 1 1/4"-7 | 450mm |
CWDD18245010 | 182mm | 10 | 1 1/4"-7 | 450mm |
CWDD20045010 | 200mm | 10 | 1 1/4"-7 | 450mm |
CWDD25045010 | 250mm | 10 | 1 1/4"-7 | 450mm |
CWDD30045010 | 300mm | 10 | 1 1/4"-7 | 450mm |
CWDD35045010 | 350mm | 10 | 1 1/4"-7 | 450mm |
3.FeaturesSuitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have the reasonable lifespan
4.Delivery time2 weeks for samples after order confirmed.
3 weeks for batch order after payment is confirmed.5.Application6.Corediam serviceWe accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.7. Corediam introductionCorediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
