Cassman 200L Stainless Steel Mini Beer Home Brewing Equipment

• Processing Material：Stainess Steel 304
• Application：Beverage, Beer
• Customized：Customized
• Certification：CE, MET, CSA, UL, SA8000, ISO9001
• Power Source：Customized
• Automatic Grade：Customized

=== Base Info ===

• Key Words：Home Brewpub Craft Beer
• Thickness of Tanks：3mm,2mm
• Material：SUS304,SUS316,Red Copper
• Function：Brewing Beer Brewing Equipment
• Polishing：0.4-0.6 Micron
• Accessories：Included
• Surface：Pickling Passivation
• Heat Insulation：Heat Insulation
• Heating Method：Electrical Steam Gas Heating
• Product Name：Cassman 200L Stainless Steel Mini Beer Home Brewi
• Transport Package：Fixed with Iron Shelf Packed in Plywood Wooden Box
• Specification：200L 300L 500L
• Trademark：Cassman
• Origin：Jinan, Shandong, China
• HS Code：8438400000
• Production Capacity：50000 Set, Year

=== Description ===

Basic Info.

Key Words Home Brewpub Craft Beer Thickness of Tanks 3mm/2mm Material SUS304/SUS316/Red Copper Function Brewing Beer Brewing Equipment Polishing 0.4-0.6 Micron Accessories Included Surface Pickling Passivation Heat Insulation Heat Insulation Heating Method Electrical Steam Gas Heating Product Name Cassman 200L Stainless Steel Mini Beer Home Brewi Transport Package Fixed with Iron Shelf Packed in Plywood Wooden Box Specification 200L 300L 500L Trademark Cassman Origin Jinan, Shandong, China HS Code 8438400000 Production Capacity 50000 Set/ Year

Product Description

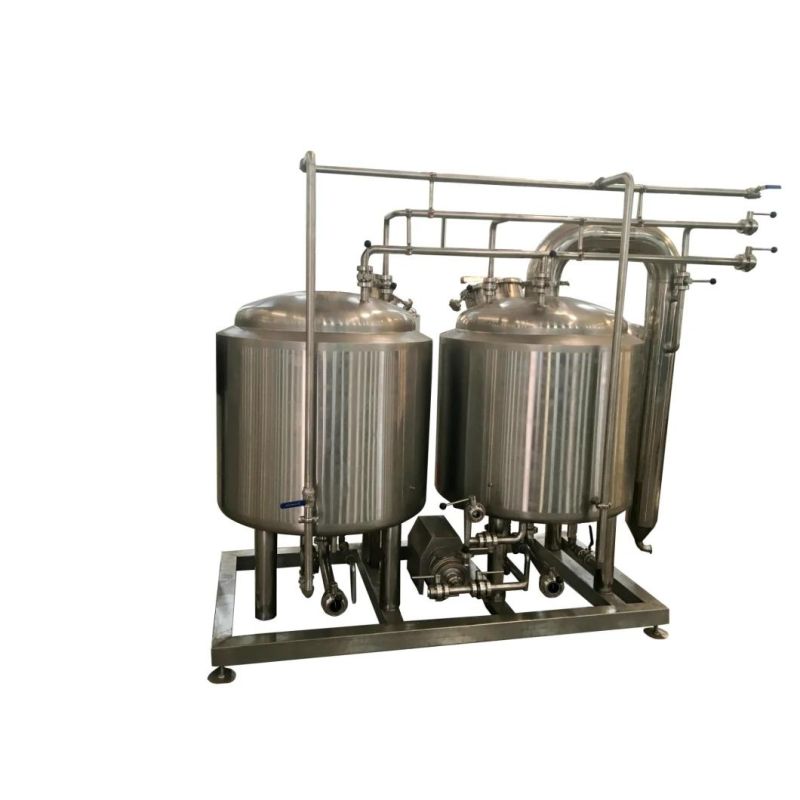

 Cassman 200L Stainless Steel Mini Beer Home Brewing Equipment

Part 1 Malt Miller System

Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.

Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.

Optional: Flexible Auger.



Part 2 Brew House System

-Two-Four vessles or combined system.

-Capacity 100L-5000L, 1bbl-40bbl.

- Steam heated, electrical heated or natural gas

-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.

-Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.

-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.

-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.

-Insulated HLT and CLT with the pipelines and pumps

-External grant, hops back, heat exchanger.Wort oxygenation system, working platform.

-All the necessary pipelines and pumps.



Part 3 Fermenter&BBT System

-Capacity: 100L-30000L, 1bbl-100bbl, +25% Head space

-Interior shell thickness 3-6mm, Exterior shell=2mm

-100% TIG welding with pure argon gas shield

-Interior finish: pickled and passivated, external polished, 80mm insulated

-Test pressure 3 bar, working pressure 1.5 bar

-Glycol zones (Both on side and concial/bottom)

-60°conical bottom for Fermener, Shadow less side man way

-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

-Mechanical relief valve 3 bar on CIP arm with pressure gauge

-Adjustable tank leveling pads

Part 4  Cooling System

Description: Air type chiller + Ice water tank or Glycol tank

Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank

Brand: Copeland, SANYO.

Part 5 Control System

-PID or PLC system

-SIEMENS program S7-200, Siemens touch screen.

-Penumatic valves for optional

Part7  Packge and Shipping

Part 8  Our Certification



Part 9 Company Profile

Cassman is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.

We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.

Established in 2010, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc.
