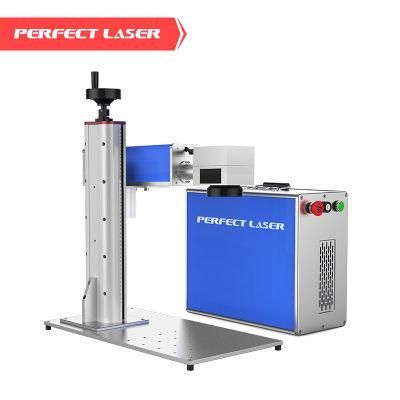

20W 30W 50W 100 Watts Desktop Steel Metal Raycus Max Ipg Jpt Mopa Laser Marker Engraver Etching Engraving Marking Machines

• After-sales Service：Lifetime After-Sales
• Warranty：3 Years
• Laser Visibility：Invisible
• Applicable Material：Metal and Non-Metal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser

=== Base Info ===

• Model NO.：PEDB-400B
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Control：CNC
• Current：AC
• Laser Type：Fiber Laser
• Usage：Metal
• Engraving Machine Type：Fiber Laser Marking Machine
• Gross Weight：55kg
• Laser Power：20W 30W 50W
• Pulse Width, (Fwhm)：100 Ns
• Laser Switching on Time：180 μsec
• Laser Source：Raycus
• Transport Package：Wooden Case with Exporting Standard
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：1000 Sets, Month

=== Description ===
Machine TypeFiber Laser Marking MachineLaser SoursePEDB-400  10W  PEDB-400  20WIPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operation                                          PulsedPolarization                            randomQ-switched operationOutput power adjustment range10%-100%Nominal average output power W10W20WCentral emission wavelength        1060-1070 nmEmission Bandwidth (FWHM)      < 10 nmLong-term average power instability< 5%Pulse width, (FWHM)                              100 nsLaser switching ON time                        180 μ secLaser switching OFF time                180 μ secPulse Repetition Rate* kHz                    20-80 kHzEnergy per pulse (PRR = 20 kHz)    0.95 mJTypical beam quality, M2                            < 1.8Output fiber delivery length                  3mOperating voltage                                        220VMax. Power consumption        600W


Company Information:
Perfect laser Co. Ltd. (China) was founded in 1995, located in the core area of "China Optic Valley" - Wuhan city. Occupied with 3000 m2 ground, including R&D building and production area. It has more than 180 employees, most of them are with a bachelor degree or even a doctorate degree. Executed by reliable quality and reasonable price, our products get favorable sales success and outstanding reputation not domestically in China but also popular in more than 180 countries such as the USA, Italy, Korea, Singapore, Poland, Turkey, Sweden, Saudi Arabia to worldwide.



Contact us:
Perfect Laser Co.,Ltd. (China)
Contact: Betty/ Sales Manager
Add: No.13 YangQiaohu Road, East Lake High-tech Development Zone, Optics Valley, Hubei, China
