Horizontal Directional Drilling Rig Machine Xz200

=== Base Info ===

=== Description ===

Basic Info.

Model NO. XZ200 Bit Type Cone Bit Drilling Way Compound Type Crawler Drilling Depth 280m Drilling Diameter 75-300mm Feature High Drilling Efficiency Spindle Speed 570 R/Min Max. Torque 178 Max.Drilling Diameter 8045 Crowd Force 295 Line Pull 393 Stroke 6716 6716 389 Transport Package Bulk Vessel Specification 120CBM Trademark Chinese Brand Origin China HS Code 9480024 Production Capacity 50

Product Description

Horizontal Directional Drilling Rig Machine XZ200

Features

XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation.

They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.

Main Features:
* Cummins 6BTAA5.9-C150 Engine.
* Rack and pinion push-pull system.
* Self-propelled rubber tracks chassis .
* Floating clamp.
* 250L/min mud pump.
* Optional single/double automatic anchor, cab, A/C, mud cleaning, cold start.

 XZ200 Horizontal directional drilling structure compact, high performance, full-featured, Hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level.

1.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.

2.Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.

3.Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices, can also be optioned more Eco Saving  Cummins with EU Stage 3A.

Parameters

Model	Unit	XZ200	XZ3Z0D
Engine		CUMMINS	CUMMINS
Rated power	kW	112	153
Push-pull		Rack and pinion	Rack and pinion
Max.pullback/thmsting	kN	140	320
Spindle torque (max)	N.m	6350	12000
Spindle speed	r/min	0-160	0-140
Travelling speed of power head	m/min	0-26	0-22
Backreaming diameter	mm	Ø600	Ø800
Pipe length(single)	m	3	3
Pipe diameter	mm	Ø60	Ø73
Entry angle	°	10~22	10~20
Mud flow rate (max)	L/min	250	320
Mud pressure (max)	bar	80	80
Overall weight	T	8.5	10
Dimension (LxWxH)	mm	5900x2020x2400	6500x2250x2450

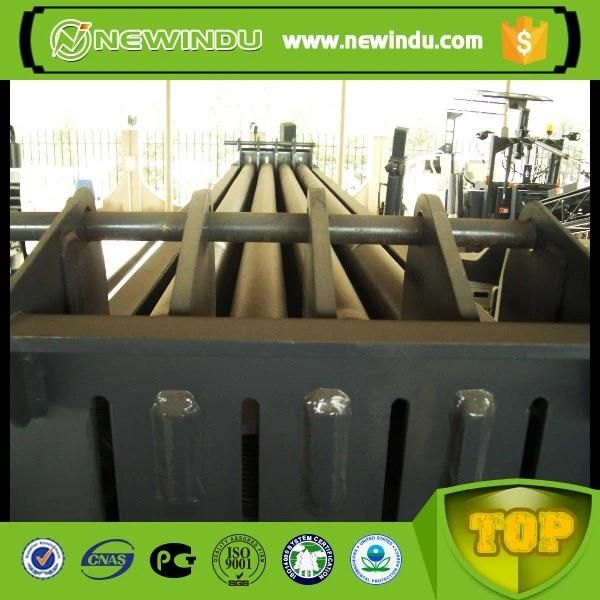

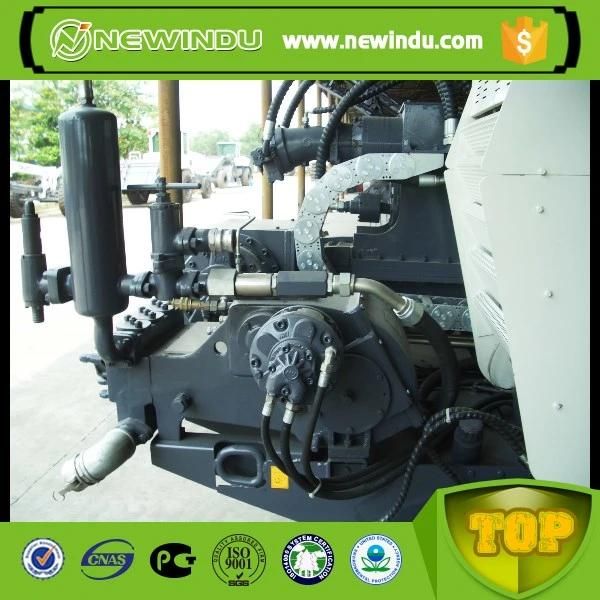

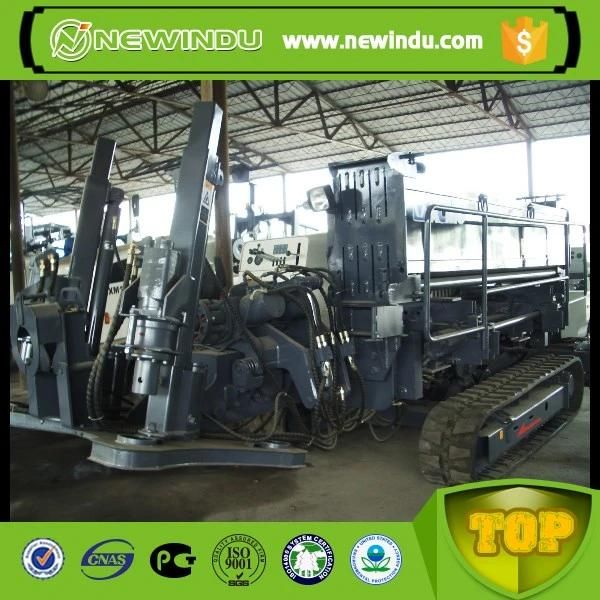

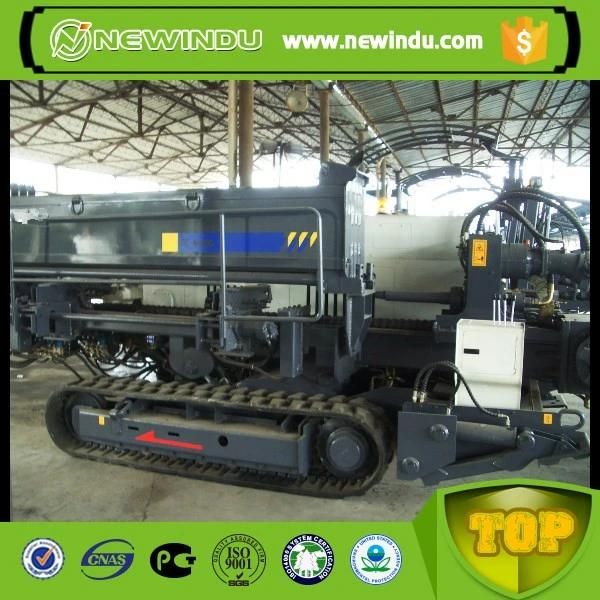

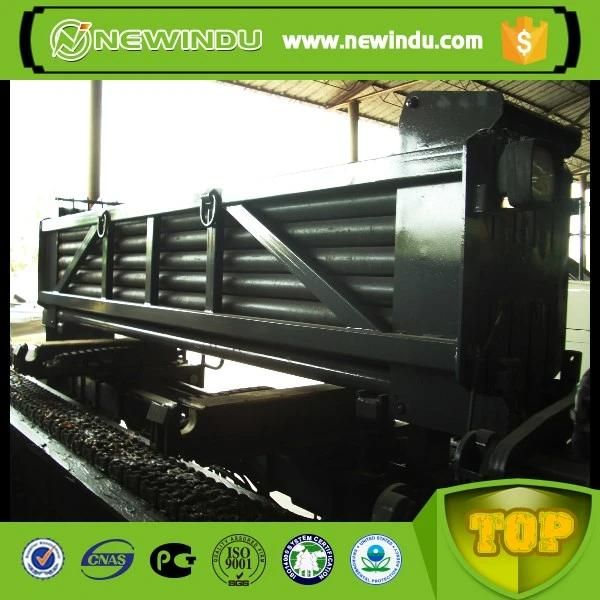

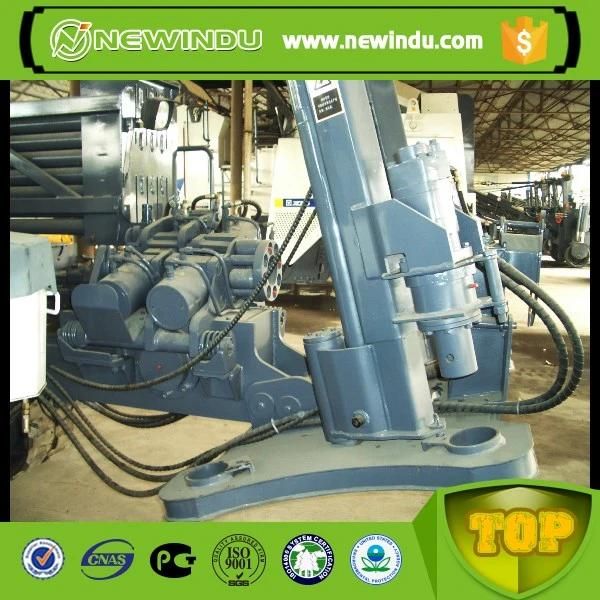

Pictures
