500m Depth Mounted Water Well Drilling Rig Machine for Sale

=== Base Info ===

=== Description ===

Basic Info.

Model NO. JK--DR500 Type Crawler Usage Water Well Voltage 24V Weight 11t Warranty 1 Year Power Type Diesel Product Name Water Well Drilling Rig Transport Package 20gp Specification 5900*2100*2850mm Trademark SDJK Origin Shandong HS Code 8430412100 Production Capacity 100 Pieces/Month

Product Description

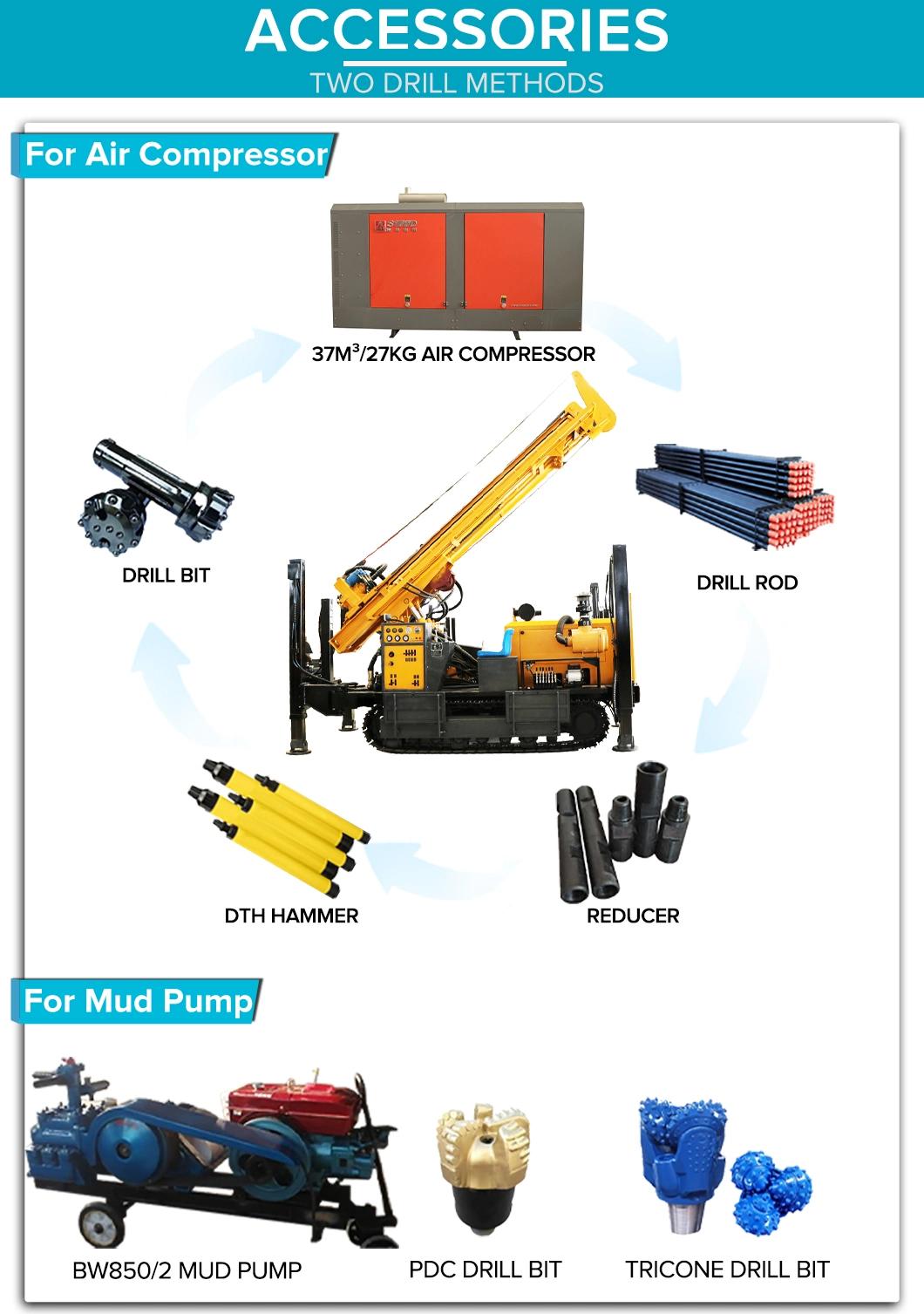

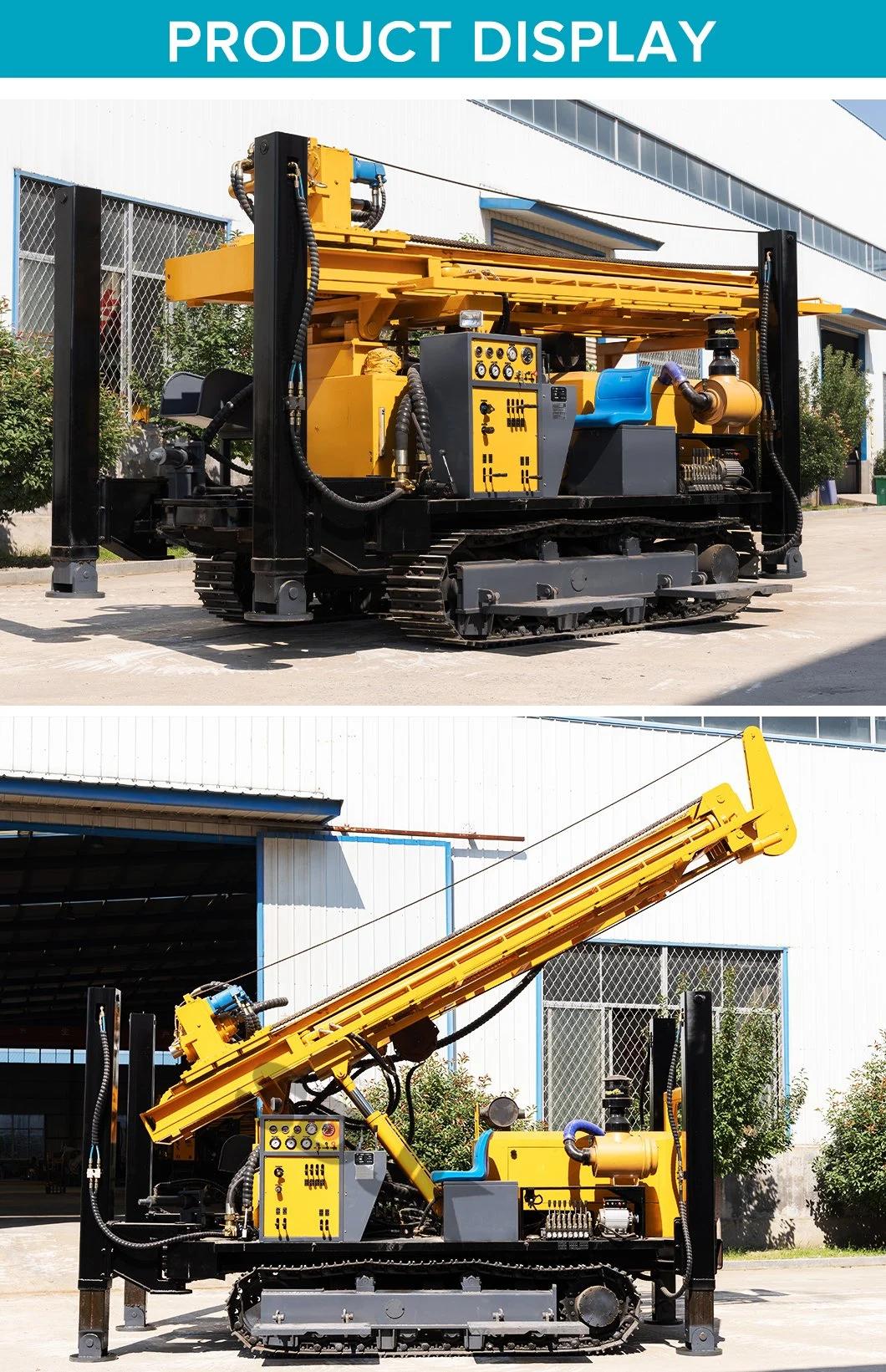

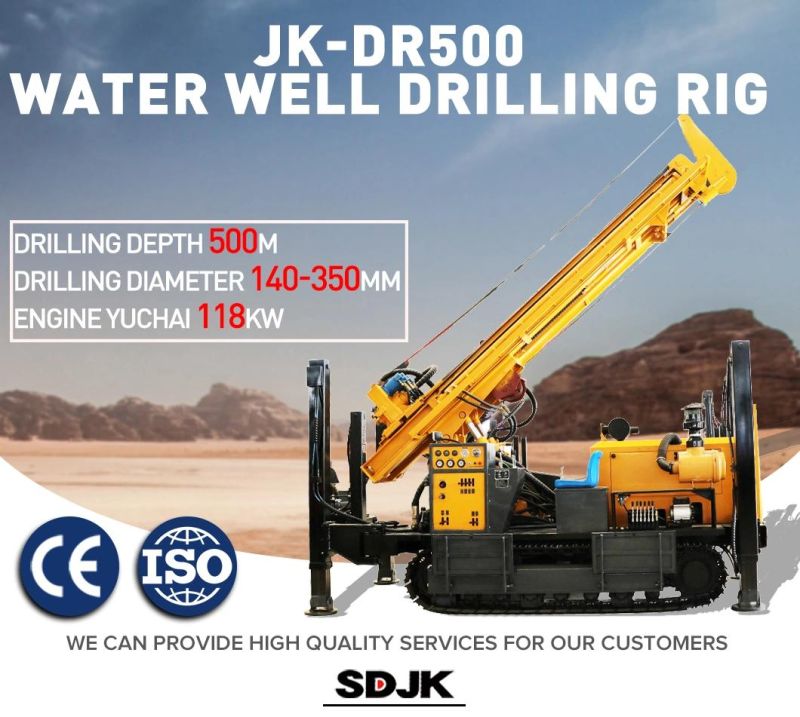

The JK-DR500 DTH drilling rig with AC(Air Compressor) method is capable of drilling upto 219mm diameter holes for pore-forming purposes to a depth of 500 meters.

JK-DR series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.

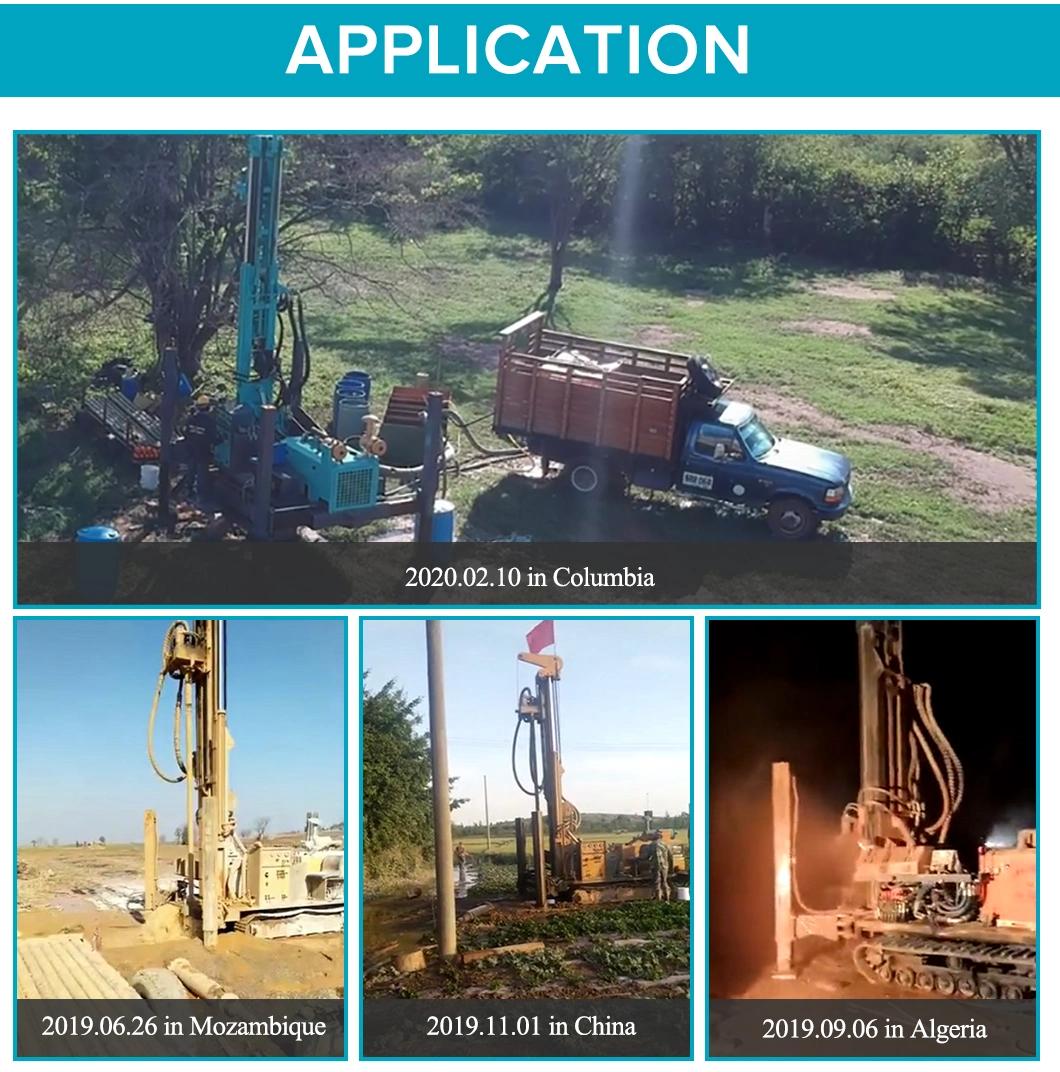

This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.

Model & Name	JK-DR500	Rated pressure	1.7-3.5 MPa
Weight	11.5Ton	Air consumption	17-42 m³/min
Bore diameter	140-350mm	Drill rod diameter	Φ102 / Φ108/ Φ114 mm
Drilling depth	500m	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m

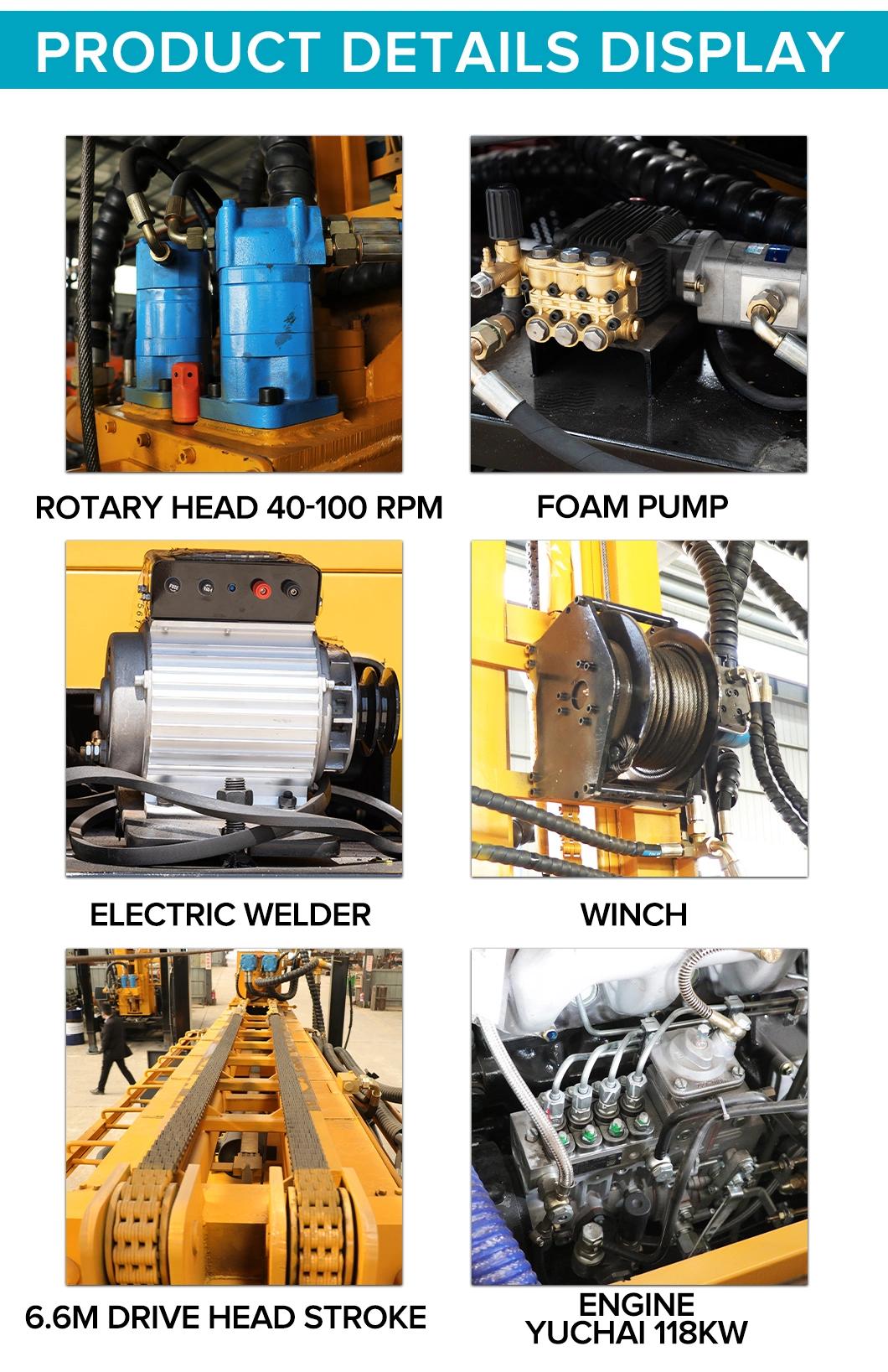

Engine Model	YUCHAI	Elevating capacity	26Ton
Rated Power	118 kW	Swing speed	40-100rpm
Stroke	6.6m	Swing torque	7500-10000N.m
Travelling speed	2.5km/h	Dimensions	6000*2200*2950mm
Gradeability	30%
