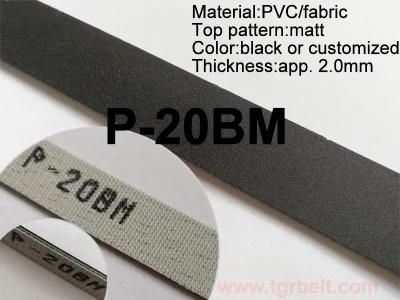

Customized Industrial Free Straight Conveyor Model Belt Conveyor for Carton Box Warehouse

• Power Source：Electric
• Certification：CSA, ISO9001
• Customized：Customized
• Top Material：PVC
• Bottom Material：Fabric
• Tension Member：Polyester

=== Base Info ===

• Model NO.：P-20BM
• Total Thickness：2.0mm
• Top Cover：Matt
• Hardness：90 Shore a
• Pull at 1% Elongation：8n,mm
• Minimum Diameter：40mm
• Working Temperature：-20,+80
• Roller Support：Roller,Plate
• Quality：Food Grade
• Characteristic：Lateral Stability
• Performance：Oil and Fat Resistance
• Transport Package：PE Film+Wear-Resistant Material
• Specification：material roll, open end or endless
• Trademark：TGRBELT
• Origin：China
• HS Code：5910000000
• Production Capacity：50000sqm,Monthly

=== Description ===
TypeP-20BMBelt thickness2.0mmColorblack SurfacemattHardness top90 shoreWeight2.4kg/m²0.491 lbs/ft²Force at 1% elongation8N/mm44.79 lbs/inTemperature range-20 to 80 ºC-4 to 176 ºFMin.pulley diameter40mm1.575inStandard roll belt width2000mm78.74 inMax.roll belt width3000mm181.11 in


Our Commitments
---  All products have passed rigorous factory test to ensure high quality.
---  We own patented products and SGS,ISO certifications.
---  High-efficiency assembly and production lines ensure on-time delivery.

Pre sale service:
▽  Technical communication with engineer.
▽  Factory and workshop visit.
▽  Making customized drawings patiently.

After sale service:
▽  Overseas and spare part support.
▽  Technical and spare parts support.
▽  OEM service please kindly email us.

FAQ:
Q: Could you provide sample ?
A: Yes,we could .
Q: What is your delivery time?
A: Delivery time normally is 3--15 days. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: Do you have any certifications?
A: Yes, we have SGS and many other laboratory tests; your special certificaion tests can be accepted.
Q: What is your terms of payment ?
A:Paypal,Money Gram,T/T,Western Union etc.
Q:Is customization avilable?
A:Yes.Our customized service is avilable.


Other Related Products
-machine tape
-spindle tape
-tangential drive belt
-OE rotor spinning belt
-twisting flat belt
-folder-gluer belt
-extruded round belt polycord
-conveyor processing belt

*Key Products : Light-duty conveyor fabric belts, flat power transmission belts, PU & rubber timing belts, high temperature PTFE belts,
   PU round belts & V belts, profiles & cleats.



FAQ:What's the advantage?
Expert of belting solutions for over 10 year!
QUALITY ASSURANCE
Guarantee that the commodity hereof complies in all respects with the quality and specification stipulated in the contract.
DELIVERY GUARANTEE
Ship the goods within the shipment time from the port of shipment to the destination in the contract.
FACTORY PRICE
Prices refer to the cost of raw materials directly from factory.
TEAM OF PROFESSIONALS
Offer experienced customer service and technical support including belts selection, calculation, application and after-sale service.
FABRICATION WORKSHOP
Provide belts cutting, jointing, as well as belt perforations, belt sealed, belt coated with rubber and sponge, belt guides, etc.
SERVICE NETWORK
Set up office, branches in Foshan, Suzhou, Wenzhou, Hongkong, etc, service locations for processing industrial belts in Foshan, Wuxi, Yongbo etc.
