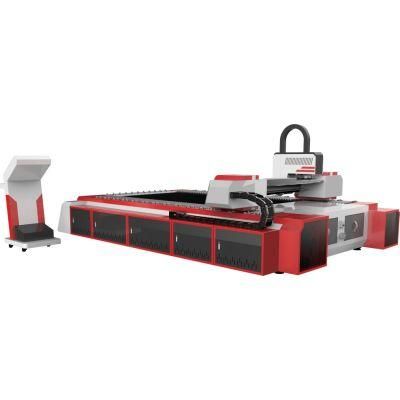

CNC Router Fiber Metal Laser Cutting Machine Industrial 1000W

• Application：Textile Machinery, Automotive Industry, Woodwork Industry, Machinery & Hardware
• Cooling System：Air Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Desktop
• Laser Technology：Laser Fusion Cutting

=== Base Info ===

• Model NO.：877
• Certification：CS, SGS, ISO 9001:2008
• Type for Cutting Machine：Laser Cutting Machine
• Warranty：2 Years on Laser Source
• Automation：Automatic
• Type：High-Power Laser Cutting Machine
• Condition：New
• Cutting Depth：0.2mm---8mm
• Cutting Area(mm)(L×w)：3000mm 1500mm
• Continuous Working Time：24 Hours
• Electrical Requirements：380V,50Hz.60AMP
• Transport Package：Wooden Box
• Specification：SGS,CE
• Trademark：Dapeng
• Origin：China Shenzhen
• HS Code：84561000
• Production Capacity：5set,Day

=== Description ===

ModelDPLC3015-500IDPLC3015-1000IMedium of laserSemiconductor pump continuous ytterbium doped fiberLaser wavelength 1070nmLaser output power500W1000WCutting area(mm)(L×W)      3000mm×1500mmMax cutting speed(m/min) 18 m/min24 m/minMin line width< 0.1mm< 0.125mmCutting depth 0.2mm---5mm       0.2mm---8mmDriving WayImported servo motorTranmission WayY-axis imported gear rack double driver,X-axis imported gear rackOperational Temp Range10 ~ 40ºCElectrical Requirements380V/50Hz.60AmpCooling ModeWater cooledContinuous working time24 hoursWarranty:2 years on laser source WeightAbout 3000kg                Outline size(mm)       4270mm×2420mm×1750mm  (L×W×H)
APPLICABLE MATERIALS:

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

APPLICABLE INDUSTRY:

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
