Powerful 2000W Continuous Fiber Laser Cleaning Machine for Metal Rust/Greasy Dirt/Oxidation of Paint
Shenzhen Fortress Industry Co., Ltd / 2022-06-23
- Warranty：1-2 Years
- Laser Power：2000W Fiber Laser, Raycus Brand
=== Base Info ===
- Model NO.：UG-2000LC
- Laser Wave Length：1070 Nm
- Fiber Length：Standard10m Maximum 15m
- Pulse Width：0.1-20ms
- Gas Source：Argon or Nitrogen
- Working Mode：Continuous or Modulate
- Cooling System：Water Cooling, Industrial Water Chiller
- Welding Speed Range：0~120 mm,S
- Welding Thickness Recommendations：0.5-4mm
- Scan Length：150mm
- Laser Head：Single Wobble Handheld Laser Head( Relfar)
- Controller：Touch Screen Laser Cleaning System( Relfar)
- Working Voltage：AC380V, 50,60Hz, Three Phases
- Transport Package：Plywood Case
- Specification：1650*720*1450mm, 341KGS
- Trademark：UPGOAL
- Origin：China
- HS Code：8515809090
- Production Capacity：300set Per Month
- Package size per unit product：133.00cm * 72.00cm * 145.00cm
- Gross weight per unit product：314.000kg
=== Description ===
Applications & Features
Professional touch screen laser cleaning system( RelFar brand) with large 150mm scanning width( can be customized into 200mm) : it has variety of fiber interface and can be adapted to various lasers; fast and simple replacement of protective lenses; with the optimized optical design, built-in water cooling can work steadily for a long time under high power.
Industrial Water chiller( Teyu S&A RMFL-2000): One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.
Connect with the Argon gas or Nitrogen gas before cleaning

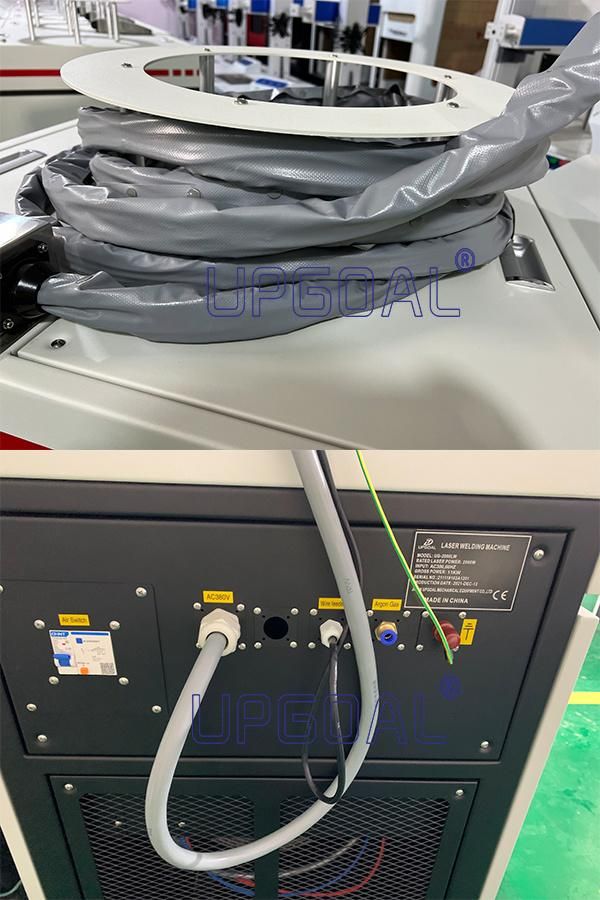

Fiber laser cable & power cable
Technical Parameters
Laser Power | 2000W(Raycus,RFL-C2000 model) |
Laser Wave Length | 1070 NM±20nm |
Laser Source | 2000W(Raycus,RFL-C2000 model) |
Fiber interface | QBH |
Fiber Length | Standard10M, maximum 15M |
Laser Pulse frequency | 1-20HZ |
Pulse Width | 0.1-20ms |
Cleaning head | Portable single wobble handheld cleaning head (RelFar brand, 0.83kg) |
Cleaning system | RelFar brand, ,7"display screen and V2 mother board |
Scanning width | 0-150mm |
Scanning speed | 20000mm/s |
Collimation focal length | 50mm |
Focus length | 600mm |
Focus adjustment range | -10mm~+10mm |
Clear aperture | Φ25 |
Gas source | Argon or Nitrogen ≥0.5~0.8Mpa |
Working mode | Continuous or modulate |
Beam quality | M2<1.2 |
Line width | <5nm |
Straight modulate | 0-5KHZ |
Cooling system | Water cooling, industrial water chiller,Teyu S& A brand, RMFL-2000 |
Working environment temperature | 15~35 ºC |
Humidity range of working environment | < 70%No condensation |
Working Voltage | AC380V, 50/60Hz, three phases for 2000W |
Total power | about 10,000W |
Reference Welding Cleaning Sample Photos
Accessories & packing
Working videos:
https://youtu.be/VMCy-2skEAc
For more information, just feel free to contact us!
