- After-sales Service:Online Service
- Warranty:in One Year
- Condition:New
- Customized:Customized
- Voltage:380V
- Composition:CIP Cleaning Machine
=== Base Info ===
- Model NO.:2000L CIP
- Processing Material:Natural Ingredients
- Process:Cleaning and Washing The Tanks
- Name:300L-2000L CIP Machine CIP System 1000L CIP Small
- CIP Machine Material:Stainless Steel 304,316
- CIP Cleaning System Capacity:200L to 3000L
- CIP System Control:Electric Control Board
- CIP Washing System:Wash The Juice, Milk Factory Tanks, Equipment
- CIP Contruction:Acid Tank, Alkaline Water Tank, Pure Water
- CIP Pump:Supplied
- Customized CIP Cleaning System:Accept
- After Sale Service:Engineers Able to Visit Abroad
- Motor Brand:Siemens ,ABB,China Brand
- Tool:Yes
- Warrantys:One Year
- Heating:Steam
- Control:Yes
- Packing:Wooden Box
- Transport Package:Standard
- Specification:CE
- Trademark:KQ
- Origin:China
- HS Code:8479820090
- Production Capacity:1000
=== Description ===
Basic Info.
Model NO.
2000L CIP
Processing Material
Natural Ingredients
Process
Cleaning and Washing The Tanks
Name
300L-2000L CIP Machine CIP System 1000L CIP Small
CIP Machine Material
Stainless Steel 304/316
CIP Cleaning System Capacity
200L to 3000L
CIP System Control
Electric Control Board
CIP Washing System
Wash The Juice, Milk Factory Tanks, Equipment
CIP Contruction
Acid Tank, Alkaline Water Tank, Pure Water
CIP Pump
Supplied
Customized CIP Cleaning System
Accept
After Sale Service
Engineers Able to Visit Abroad
Motor Brand
Siemens /ABB/China Brand
Tool
Yes
Warrantys
One Year
Heating
Steam
Control
Yes
Packing
Wooden Box
Transport Package
Standard
Specification
CE
Trademark
KQ
Origin
China
HS Code
8479820090
Production Capacity
1000
Product Description

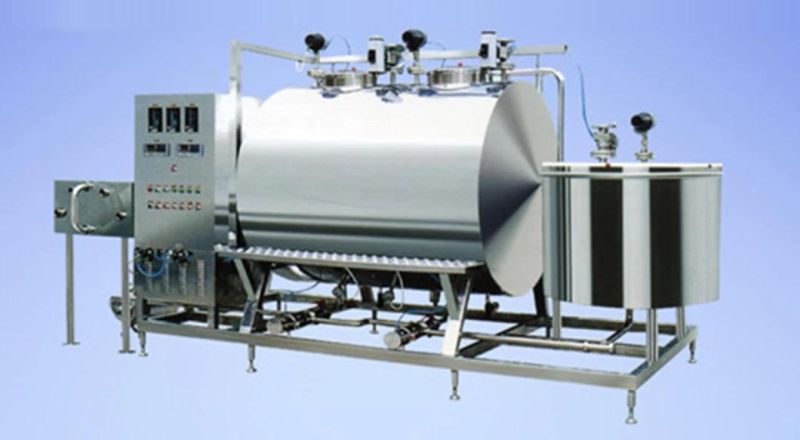

300L-2000L CIP Machine CIP System 1000L CIP Small CIP Machine
CIP cleaning system can not only clean machine, but also control the cleaning of microorganism method.
The CIP cleaning system has the following advantage:
1, make the production plan rationalize and the exaltation produce an ability.
2, can not only reach a good cleaning performance, but also can raise the quality of product.
3, can prevent cleaning homework from dangerous, economical labor force.
4, can save the steam, water and production cost.
5, can increase the usage time of the machine you want to clean and maintain.
6, This CIP cleaning system is detachable and movable,
Processing: | Washer,online Cleaning the beverage line | Condition: | New | Place of Origin: | JiangsuChina (Mainland) |
Brand Name: | ASIASTAR | Model Number: | CIP-300(AS-1636) | Voltage: | 380 |
Weight: | 1000kg | Dimension(L*W*H): | 2200*1000*1600mm | Processing Types: | Juice, carbonated beverage machine |
Certification: | CE,BV,SGS,UL | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Machine name: | electric cip cleaning system | Material: | SUS304,SUS316 | Feature: | Automatic, high quality |
Control: | Button | | | | |
Machine description:
(Cleaning In Place) System is used for the cleaning of pipeline and container of the filling system for milk, juice, beverage etc.
A centrifugal pump will be ued in CIP system to convey the cleaning liquid to the pipeline and containers, and then the cleaning liquid will be forced to circulate in the pipelines and containers.
with this kind of cleaning process, the filling system do not need to be aparted for cleaning.
CIP system is total-automatic self-case unit containing a water tank, an acid tank, a lye tank, some necessary pumps, valves and a set of monitor devices, such as temperature sensor, density sensor and liquid level sensor and so on. Technical not only supply customers a standard CIP unit, but aso manufacture a special CIP system following your special requirement.
CIP unit contains self-automatic control program, including completed cleaning process. The program includes all-process cleaning program, acid cleaning program and lye cleaning program. Both of the cleaning water and the dissolvent is acceptable for CIP system. The temperature and the desity of the cleaning water can be enacted and controlled accurately. What is more, the density of the cleaning solution can be mixed automatically.
Total-automatic control to provide safety operating interface.
Tota-automatic add acid/alkali depending on the density monitor, which self control the density of the dissolvent. So that it can reduce the demand of human resource, and make sure the safety of the human.
Adopt the tubular heat exchanger, bear high pressure resistance, no block, and few maintaince fee.
Optimized CIP cleaning function can reduce the times of CIP cleaning.
Reserved interface can be easily connected with the existing equipment.
Sanitary Stainless steel CIP Cleaning System
300L-2000L CIP Machine CIP System 1000L CIP Small CIP Machine
