3A Food Grade Sanitary Chocolate Rotary Cam Pump

  • Processing Material:Natural Ingredients
  • Application:Pet Food, Chocolate, Ice Cream, Vegetable, Fruit, Dairy, Beverage
  • End Connections:Butt-Weld, Tri-Clamp, Thread, Flange
  • Body Material:AISI 304 (1.4301), AISI 316L (1.4404),Iron Gear
  • Body Types:Horizontal Type (Tul) & Vertical Type (Tur)
  • Mechanisal Seal:Single Seal (Standard), Double Mechanical Seal (Op

=== Base Info ===

  • Maximum Temperature:150degree,302f
  • Product Name:Positive Displacement Rotary Lobe Cam Pump
  • Keyword:Positive Displacement Rotary Lobe Cam Pump
  • Transport Package:Wooden Case
  • Trademark:DONJOY
  • Origin:China
  • HS Code:8413810090

=== Description ===
Inlet & Outlet Sizes1″-4″ (DN25-DN100)End Connectionsbutt-weld, tri-clamp, thread, flangeBody MaterialAISI 304 (1.4301), AISI 316L (1.4404)Body TypesHorizontal Type (TUL) & Vertical Type (TUR)Mechanisal Sealsingle seal (standard), double mechanical seal (option), SIC/C, SIC/SICPower Supply0.75KW-15KWVoltageAC110V, 220-240V, 360-400V, 420-460V, 630-690V, 50/60HzMaximum Flow Rate90 m³/h, 395 GPMMaximum Pressure174psi, 12baMaximum temperature150ºC/302°FMaximum Revolution1450 RPMInternal FinishRa 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.External FinishRa 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.3A Certified Stainless Steel Sanitary Rotary Lobe Pump for Beverage Food Processing Pharmaceutical

High Purity, Low Noise
High pressure to 12 bar
Horizontal Type (TUL) & Vertical Type (TUR)
Variety of lobe options: butterfly, single, bi-wing, and tri-lobe.
Hygienic designed according to 3A standard
Sanitary mechanical seal, easy cleaning and maintenance
Applied to CIP cleaning and SIP sterilization

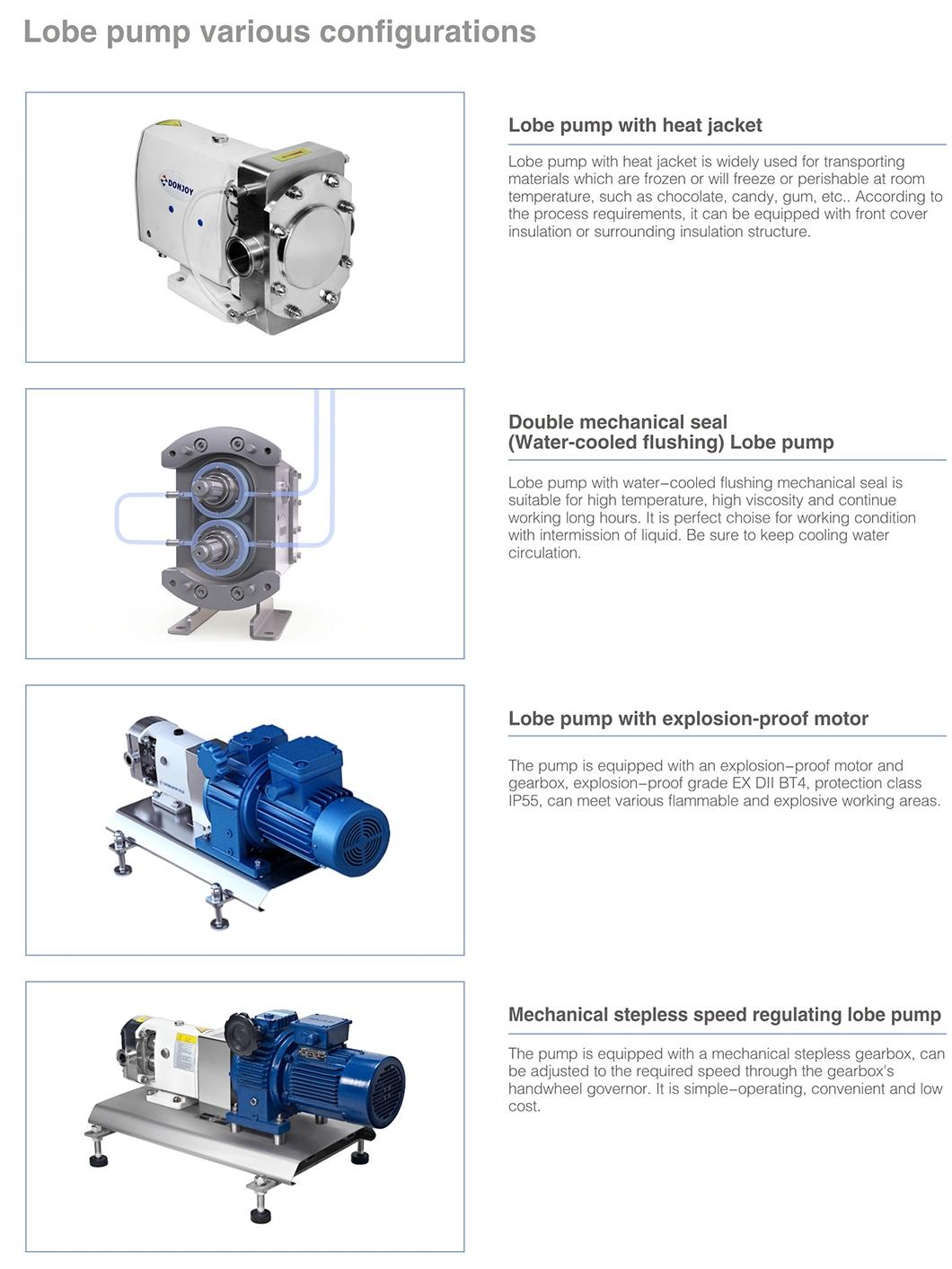

Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable - frequency motor adjustment
3) Fixed speed output transmission
Motor utilize the IEC EN IE2, PTC thermistor.
