Coffee Bean Microwave Drying Roasting Machine

• After-sales Service：Provide
• Warranty：13 Months
• Name：Coffee Bean Tunnel Microwave Drying Machine
• Voltage：110-440V Customization
• Function：Drying
• Feature：Low Energy High Speed

=== Base Info ===

• Model NO.：KLD-CBTMDM
• Control System：PLC
• Raw Material：Stainless Steel
• Cooling System：Water Cooling
• Transmission Speed：0-10 M,Min (Adjustable)
• Capacity：10-500 Kg,H
• Application：Drying&Sterilization
• Transport Package：It Is Usually Packed in Plastic Film, We Also Can
• Specification：Customized
• Trademark：KLD
• Origin：China ( Mainland ) Shandong
• HS Code：843880000
• Production Capacity：120-2500 Kg,H ( Customized )

=== Description ===

Basic Info.

Model NO. KLD-CBTMDM Control System PLC Raw Material Stainless Steel Cooling System Water Cooling Transmission Speed 0-10 M/Min (Adjustable) Capacity 10-500 Kg/H Application Drying&Sterilization Transport Package It Is Usually Packed in Plastic Film, We Also Can Specification Customized Trademark KLD Origin China ( Mainland ) Shandong HS Code 843880000 Production Capacity 120-2500 Kg/H ( Customized )

Product Description

Coffen Bean Microwave Drying Roasting Machine

Product Overview Introduction of microwave:

The microwave is an electromagnetic wave has a frequency of 300MHz-300GHz. The moisture in the heated mediu are polar mocules, under the cation of rapidly changing high-frequency electromagnetic fields, their polar orientation will change with the change of the external eletric field, causing molecular motion and mutual friction effects. At this time, the field energy in the microwave field is converted into thermal energy in the medium, so that the temperature of the material is increased, and a series of physicochemical processes of the heating and expansion are fenerated to achieve the purpose of microwave heating and drying.

Application of microwave machinery:

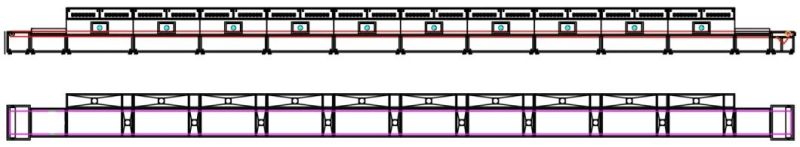

Equipment structure diagram:

  Detailed pictures:

 Adopt high-definition color display screen, workers can observe the inside of the tunnel at any time.
  Adopt Programmable Logic Controller (PLC) and sensitive touch screen make the operation of the machine simple and easy.
  There are two kinds of operating mode, can be setted in the operating system, automatic mode and manual mode. In the automatic mode, workers only need to check the operation of the equipment without operating the equipment, which can greatly reduce labor costs.
  The conveyor belt and opening can be selected according to the characteristics of raw materials.
  Water-cooled magnetron for continuous non-stop operation.
  This is air-cooled magnetron, can not work without interruption, but the price is lower than water-cooled magnetron. This type of magnetron is suitable for low power machine, or the areas with low ambient temperature.

Features and advantages
 Features and advantages of the microwave drying machine:


1. Efficient: Microwave can make the product produce heat effect very fast, the material will be heated for a short time, to avoid cause some unnecessary chemical reaction of the material.



2. High quality of finished product: Microwave sterilization can keep the product's color, fragrance, taste, physical appearance, and nutritional components, etc, to the maximum.



3. Safety: This machine is specially designed without microwave leakage.



4. Environment friendly: Adopt clean energy electricity as power source, it does not pollute the environment.



5. Easy operation: The operation is simple, stable, safe and friendly.

Machine Parameter


Model	Installed Power (KW)	Drying Capacity (kg/h)	Dimension (mm)
KLD-10GZ	10	10	7010*840*1750
KLD-20GZ	20	20	9350*840*1750
KLD-30GZ	30	30	11690*840*1750
KLD-40GZ	40	40	10520*1060*1750
KLD-50GZ	50	50	11690*1060*1750
KLD-60GZ	60	60	12860*1060*1750
KLD-70GZ	70	70	14030*1060*1750
KLD-80GZ	80	80	12680*1200*1750
KLD-100GZ	100	100	15200*1200*1750
KLD-150GZ	150	150	21050*1200*1750
KLD-200GZ	200	200	25050*1200*1750

FAQ

Q.What's the power source of the machine?



A: Eletricity



Q. What's the main matrial of the machine?

A: SUS



Q: What's the voltage of the machine?



A: The voltage can be designed base on your local voltage.



Q: What's the demension of the machine?



A: Machines with different power have different dimension. Bigger power, bigger dimension.
