1L 2L HDPE Plastic Chemical Bottle Making Blow Molding Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. ABLB65 Station Number Double or Single Machine Weight 5.5ton Condition New Export Port Shanghai Power(W) 28.5 Kw Company Attribute Manufacturer Guarantee Time 1 Year Delivery Time 55days Voltage Customer Specified Max. Product Volume 5liters Screw Diameter 65mm Screw L/D Ratio 24L/D Screw Drive Power 18.5kw Screw Heating Capacity 6kw Transport Package Film Packing Specification ABLB65 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

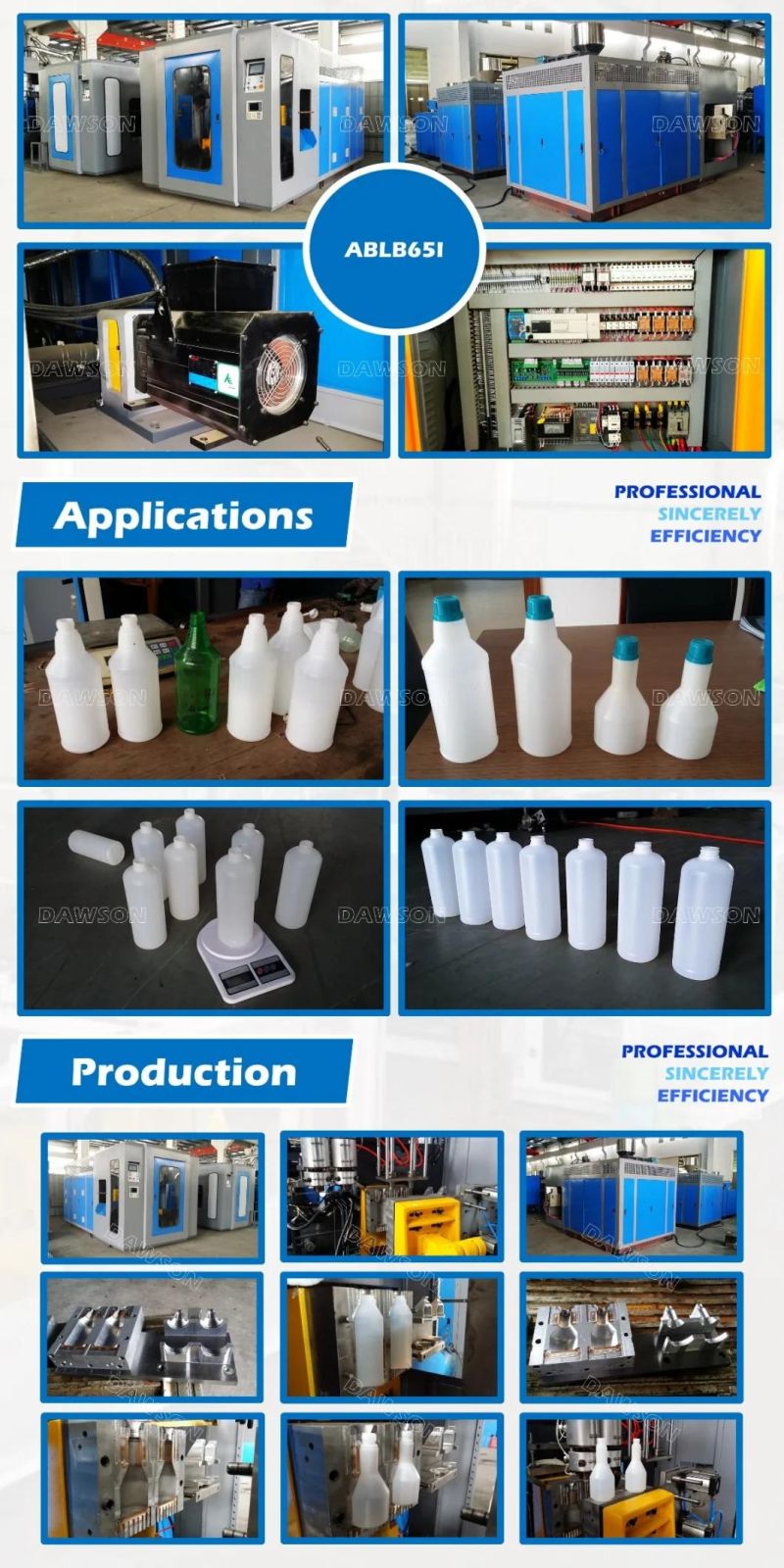

ABLB65 full automatic bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 5L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station two die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.

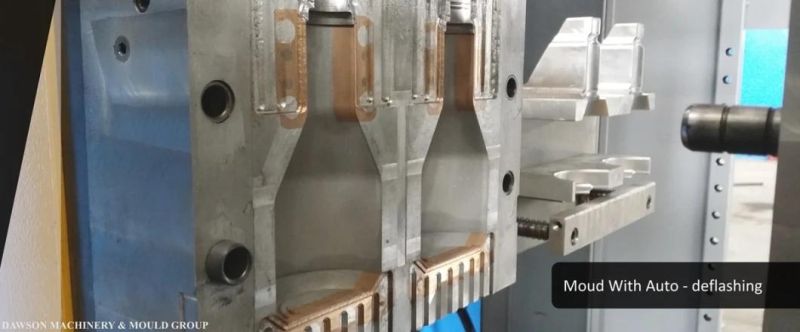

(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.




Max. Product volume	5Liters
Out put capacities	150~180pcs/h
Screw diameter	65mm
Screw L/D ratio	24L/d
Screw drive power	18.5kw
Screw heating capacity	6kw
Heating zones	3zones
HDPE output	80kg/h
Oil pump drive power	7.5kw
Clamping force	65kn
Mold max size	148-568mm
Mold stroke	330*370mm
Max die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6m³/min
Cooling water pressure	0.3mpa
Water consumption	50L/min
Machine size	3.1*1.5*2.7m
Machine weight	5.5ton
