Hw420 Crawler Mounted Portable Multi Functional Mechanical Top Drive Drilling Rig for Water Well

=== Base Info ===

=== Description ===

Diesel Engine Specifications

Rig Model

Engine Model

Rated Power

HW-420B

Yuchai YC4DK80

58 KW

HW-420B-1

Yuchai YC4DK80

58 KW (Dust collection system as
standard equipment)

General Specifications

Hole Depth

30m

Drill Pipe Sizes

76 X 3,000 mm

Drill Pipe Dia

90-130 mm

Rotation Torque (Max.)

2200 N.m

Rotation Speed

0 -150 rpm

Working Pressure

0.7 - 2.5 Mpa

F.A.D

8 - 20 m3/min

Feed Force

15KN

Pull Up Force

25KN

Feed Type

Hydraulic cylinder-chain

Tramming Speed (Max.)

2.5 km/h

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

4000 kg/4400Kg

Transportation Dimensions

5700 X 2130 X 2200 mm

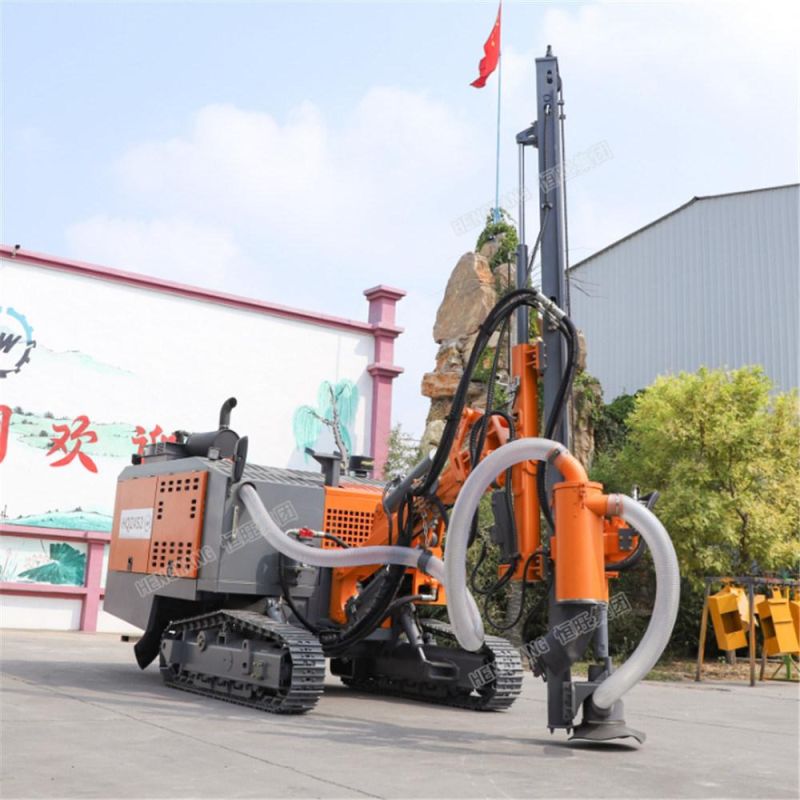

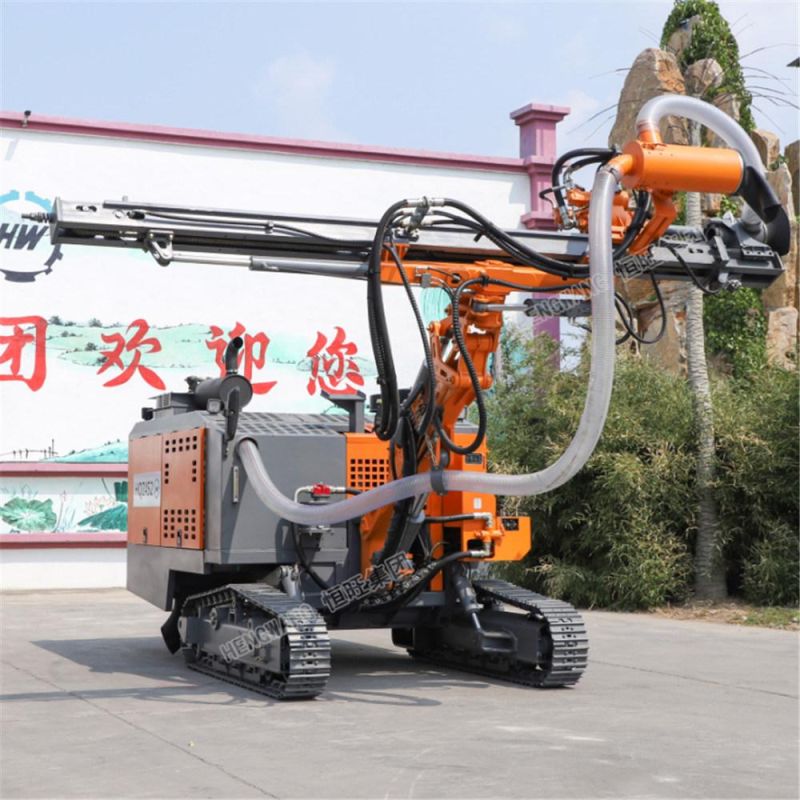

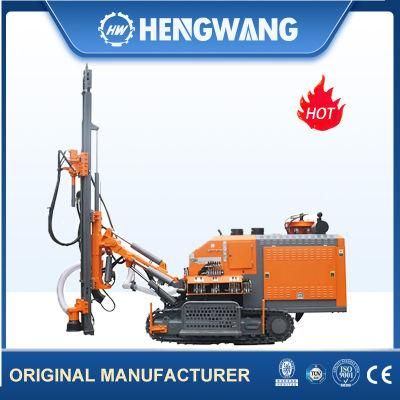

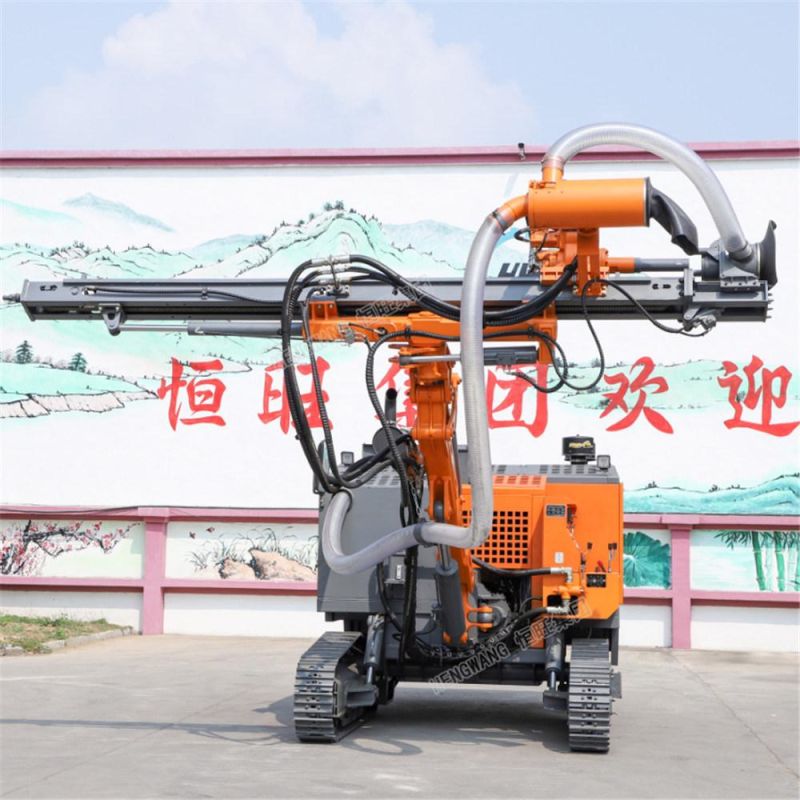

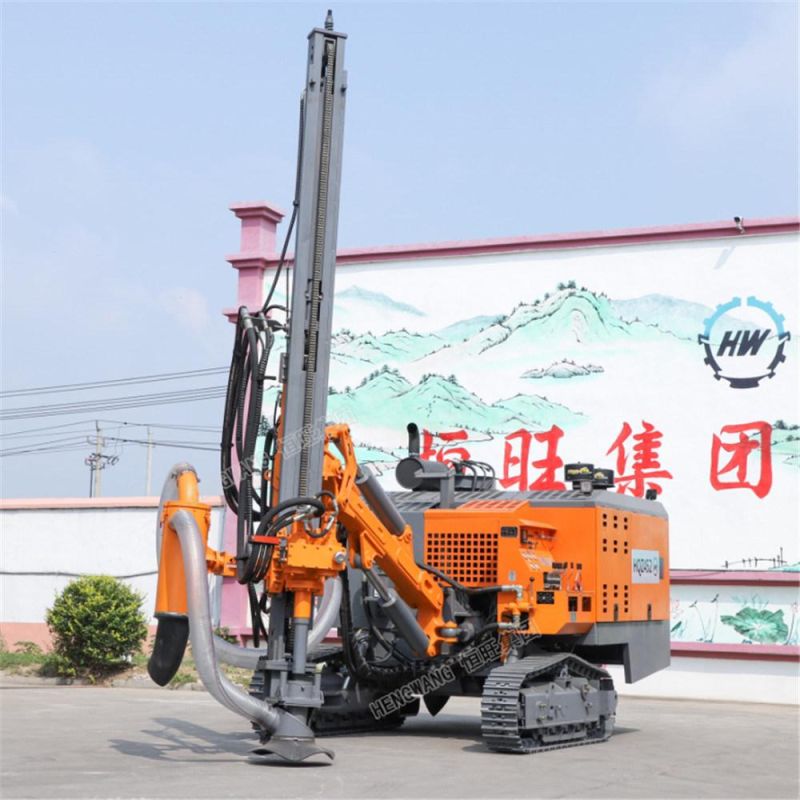

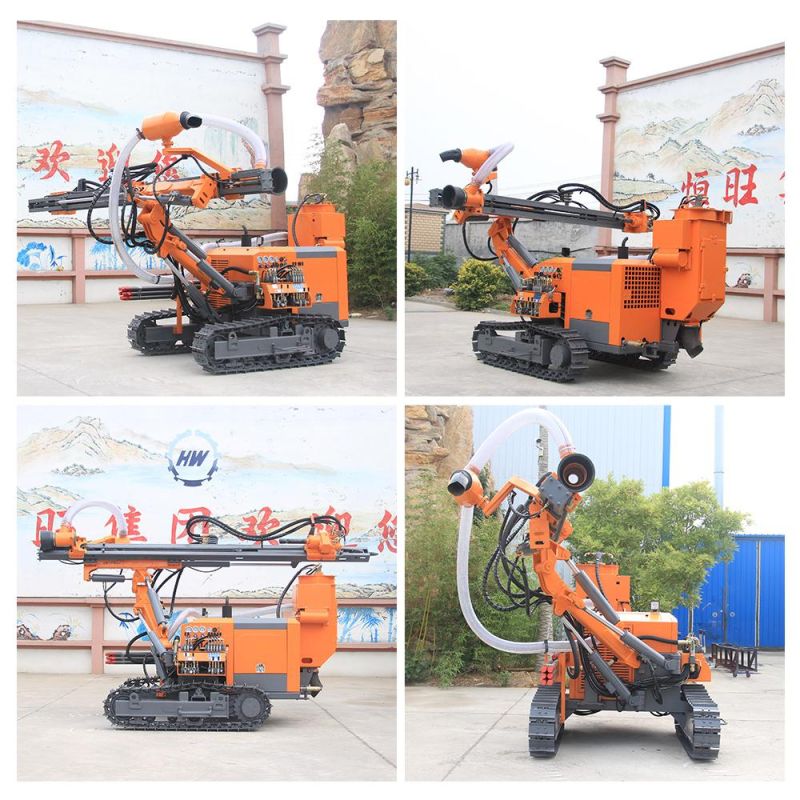

Picture:
