Fruit Juice Vacuum Deaerator Vacuum Degasser

• Brand Name：Brand Name: Jimei
• Type：Deaerator
• Processing Types：Fruit & Vegetable
• Processing：Vacuum Deaerator
• Transport Package：Wooden Case
• Origin：Wenzhou China

=== Base Info ===

• Model NO.：WY-05

=== Description ===

Basic Info.

Model NO. WY-05

Product Description

Fruit juice vacuum deaerator-500L/h

1.Capacity: 0.1-0.5T2.Cylinder Size: φ350*800mm3.Material & Plate Thickness: SUS304,3mm4.Vacuum Pump: 1.5Kw, Air sucking rate:0.8m³/min5.Screw Pump: 0.37KW6.Support stand: Stainless steel Material7. Structure: Oval top end enclosure & cone at bottom, top cover end enclosure is connected with the cylinder by flange.8. Accessories: DN60 sight glass, control box, vacuum pipe and the discharge valve.9.Voltage: 380V, 3phases, 50HZ <can be customized>

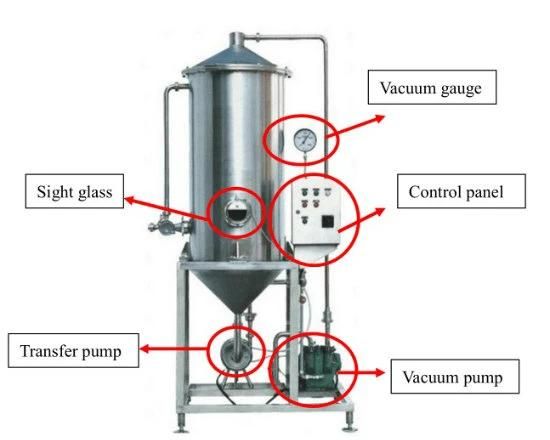

Vacuum degasser consist of vacuum pump, vacuum degassing tank and transfer pump.
Simple structure, convenient operation, easy maintenance, small size, beautiful appearance.

Production capacity: 0.5, 1.5, 2.5, 5T/h

model	capacity	Vacuum degree	power	size
WY-05	5t/h	6.4 ~ 8.7 * 10 4 Pa	5.5Kw	1.8*1*2.5m
