Abl90 Famous 100L~220L HDPE Drums Barrels Blow Molding Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. ABLD120 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Application Drums,Medical Bed,Tool Boxes,Life Floats,Jerry Can Max. Product Volume 250L Suitable Material HDPE,ABS Parison Control System Moog 100 Points PLC Japan Mitsubishi Invertor Taiwan Delta Servo System German Dmass Motor German Siemens Electrics France Schneider Hydraulic Japan Yuken Transport Package Film Package Specification 250L Trademark Apollo Origin Jiangsu, Suzhou HS Code 8477301000 Production Capacity 10 Sets/Year

Product Description

ABLD120L plastic drum making machine was specially designed for making plastic water tanks, chemical drums, plastic cans, lubricant oil drums, plastic drums, plastic toys and other plastic containers not over 220L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 220L.
(2)Single station single die head design, very easy to operate and maintenance.

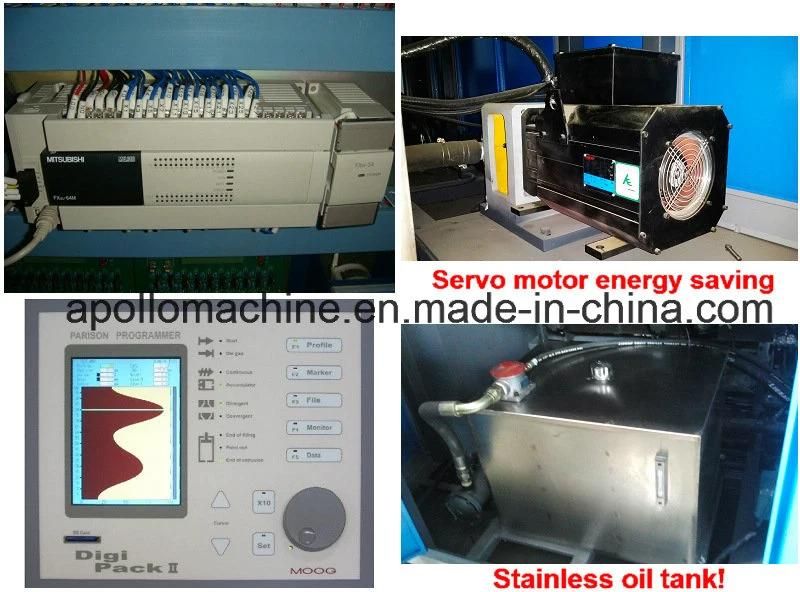

(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO



Technical Parameters: ( ABLD120L )


Max. Product volume	220 liters
Dry cycle	200pc/h
Screw diameter	150mm
Screw L/D ratio	28L/D
Screw drive power	90KW
Screw heating capacity	40KW
No.of heating zone	6zones
Output of HDPE	280 KG/H
Oil pump drive power	55KW
Clamping force	980KN
Max.size of mold	1400X1600mm
Mold stroke	700-1600mm
Max.die diameter	580mm
Die heating power	16KW
Die heating segments	6zones
Blowing pressure	1mpa
Air volume	1.8M³/MIN
Cooling water pressure	0.4mpa
Water consumption	220 L/MIN The main components of the machine.( ABLD120L )   electronic parts   Name Trader Micro computer control system Japanese MITSUBISHI  Temperature Controller TAIWAN YANHUA  PID Auxiliary Relay OMRON contactor Schneider from France Electric motor Three phase 220V or 380V Power Source TAIWAN MEANWELL Transducer TAIDA FROM CHINA hydraulic parts   Name Trader Oil pump TAIWAN HIGH-TECH Valve JAPAN YUKEN Oil pump and connection JAPAN YUKEN Sealed part HALLITE air control system   Name Trader Cylinder AIRTAC Air Valve FESTO     Technical Parameters: ( ABLD120L )   Max. Product volume 220 liters Dry cycle 200pc/h Screw diameter 150mm Screw L/D ratio 28L/D Screw drive power 90KW Screw heating capacity 40KW No.of heating zone 6zones Output of HDPE 280 KG/H Oil pump drive power 55KW Clamping force 980KN Max.size of mold 1400X1600mm Mold stroke 700-1600mm Max.die diameter 580mm Die heating power 16KW Die heating segments 6zones Blowing pressure 1mpa Air volume 1.8M³/MIN Cooling water pressure 0.4mpa Water consumption 220 L/MIN
