• Transport Package：Wooden Package
• Trademark：TGmachine,BCM machine

=== Base Info ===

• Model NO.：GD50Q
• Production Capacity：15sets,Year

=== Description ===

Basic Info.

Model NO. GD50Q Production Capacity 15sets/Year

Product Description

 GD50Q Automatic Gummy/Jelly Candy Depositing Line

FEATURES:
This is the smallest productionline for gummy candy new designed compact gummy machine was made for a pharmacy company we realized this is a new available small commercial machine for new confactionery investors the whole production line at most 5 meters at length, so a room of 6m length is enough and only 100pcs moulds required for this line.

The processing line is an advanced and continuous plant for making different sizes of gelatin-type soft candies. It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

CANDY SAMPLES :

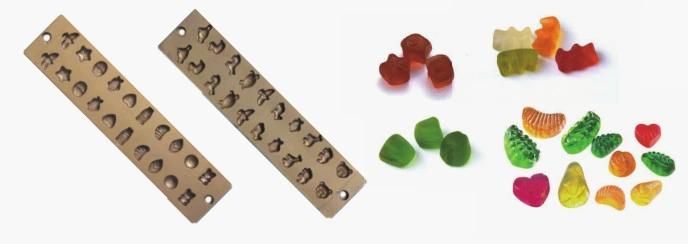

MOULDS PHOTO(you can also choose silicon rubber mould):

TECHNICAL SPECIFICATIONS:

Model	GD50Q
Production capacity   ( kg/h)	50-100
Rated depositing times(n/min)	25~55
Electric power needed	5kw/380V
Refrigerator	MT120   15,000 kcal/h
Compressed air consumption Compressed air pressure	0.20m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20-25 55
Length of the whole line   (m)	6
Gross weight           ( Kgs)	Approx.1000

FLOW CHART:
