PE/HDPE/LDPE Electrical Conduit Drain Corrugated Pipe Extrusion Making Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ90/33 Customized Customized Condition New After-sales Service 12monthes Tank Material Stailness Steel Power Supply 380V Three Phase Control System PLC Control System Inverter Schneider Intelligent Temperature Controller Omron From Japan Operator 2-3person /Shift After Sale Service Life Long with Professional After Sale Team Contactor Schneider Machine Color as Request Transport Package PE Film and Wooden Package Specification ISO9001 CE Trademark SUKE Origin Qingdao, China HS Code 84775900 Production Capacity 50sets/Year

Product Description

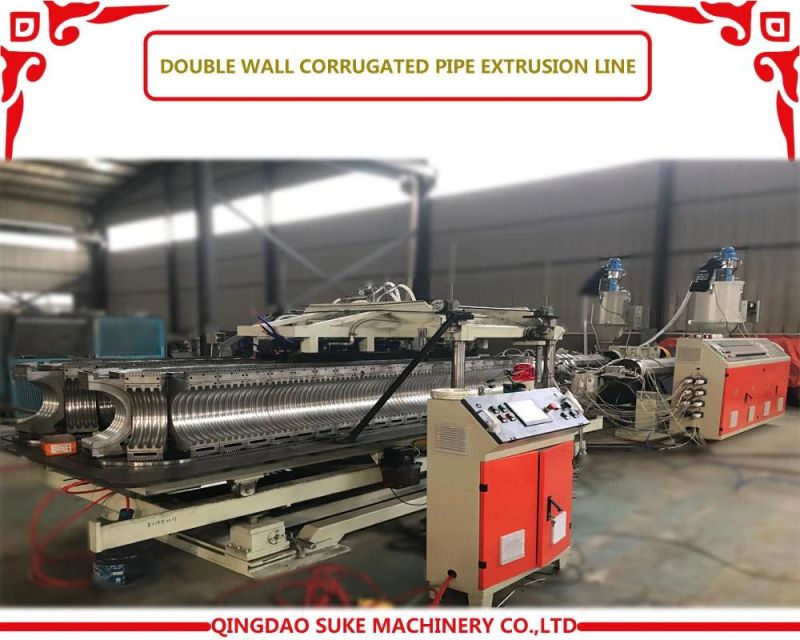

PE/HDPE/LDPE Corrugated Pipe Extrusion Making Machine


Description:
This line is used to produce pe corrugated pipe by single screw extruder.
The raw material is PE granule.
The type of extruder depends on the size of final products.

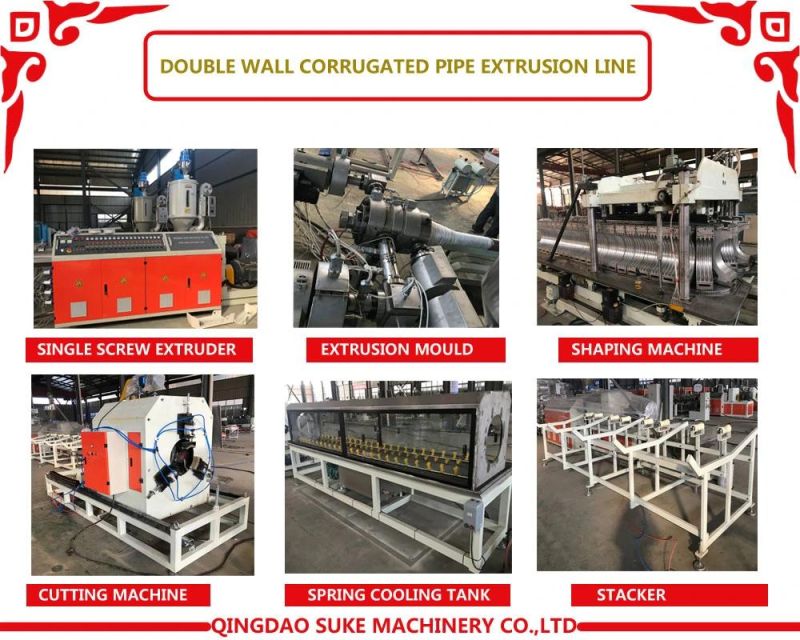

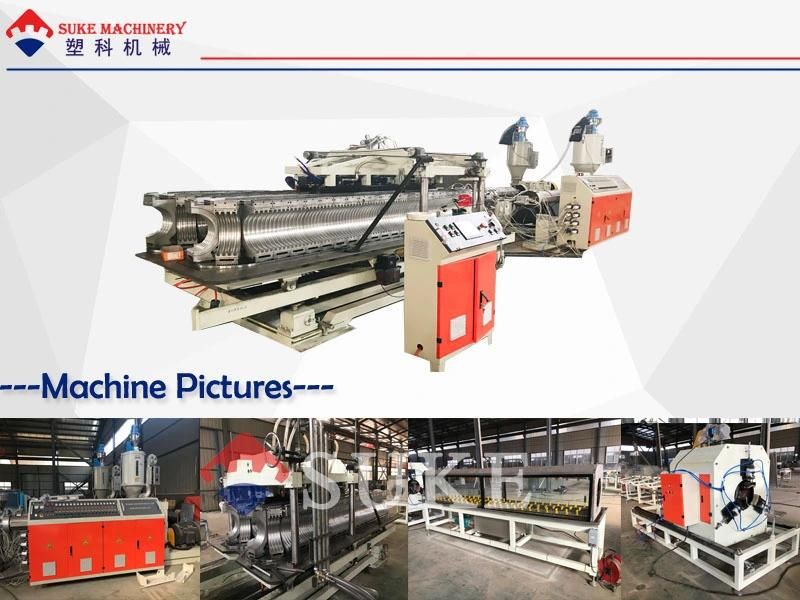

Equipment List:
1. Single Screw Extruder
2. Extrusion Mould
3. Forming Tank
4. Forming Module

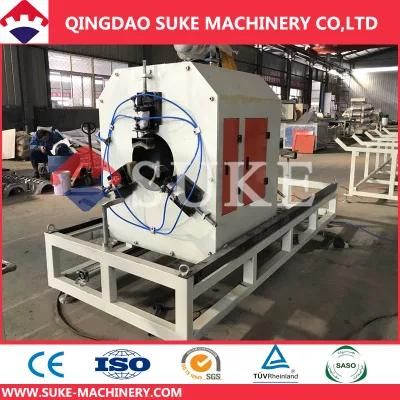

5. Cutting

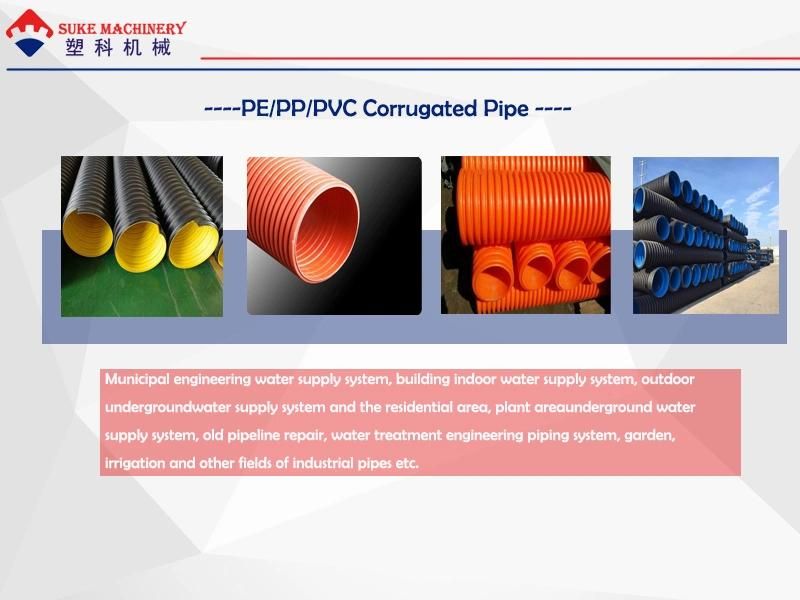

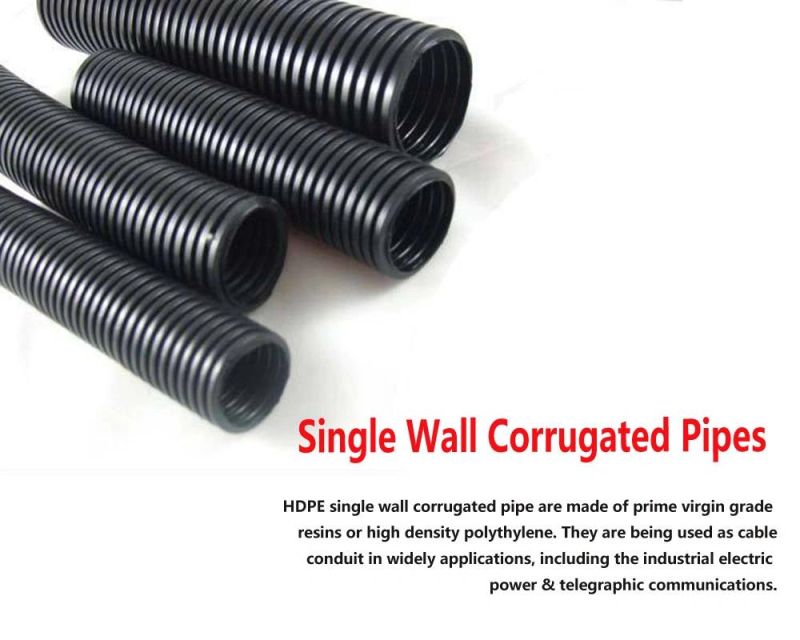

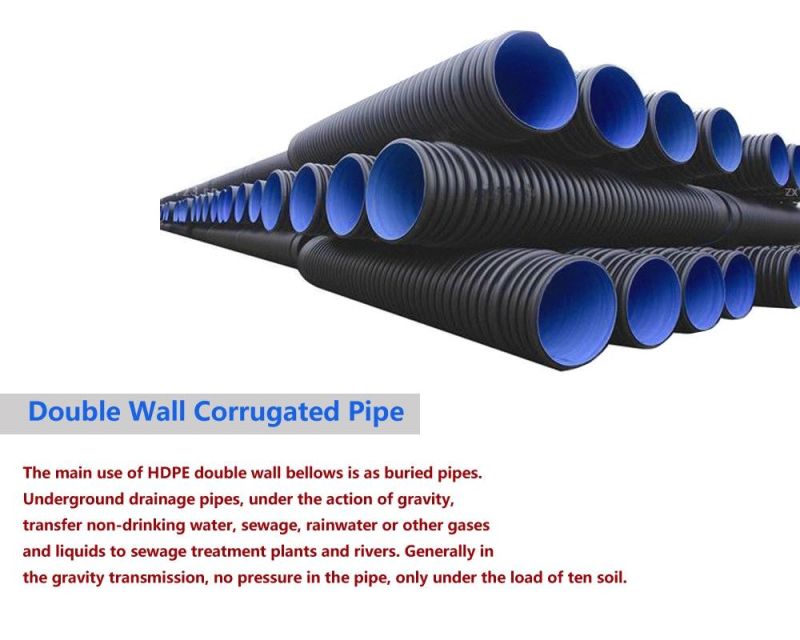

Features of Pipe
Good flexibility, corrosion resistant, light weight, aging resistant etc.


If you want more details about this Corrugated PE Pipe Extrusion Line, please contact us.
We would like to provide machine specification with quotation for you.




Extruder	SJ-65/25	SJ-90/25	SJ-120/25
Range of Pipe Diameter(mm)	16-25	65-115	115-175
Water Consumption (L/H)	2000	4000	5000
Water Pressure    (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6
Number of Mold Blocks (Pairs)	40	50	60
Total Length of Mold Blocks (mm)	2400	5180	6216
Speed of Mold Blocks (m/min)	1-8	1-12	1-8
Dimensions(LxWxH)(Approx) (M)	10x1.25x1.5	18x1.35x1.7	21x1.55x2.5
Total Weight(Approx)   (Ton)	2	6	9.5
