Parallel Twin Screw Spc Extrusion Line with a Daily Capacity of 4000-4500 Square Meter

=== Base Info ===

=== Description ===
SJSZ 138/32 parallel  twin screw extrusion lineNO.Machine ItemQtyUnit2.01138/32 parallel twin screw extruder 1Set2.02Five-Rollers Calendar 1Set2.03On-line EIR Hardware1Unit2.04Rollers oil Heating System1Unit2.05Wind Curtain Machines 6Set2.06Traction Machine1Set2.07Air cooling cabinet 1Set2.10Stainless steel roller conveyor1Unit2.11Slabs cutting machine1Unit2.12Automatic flipping & Stacking System1Unit2.13Automatic transposition stacking pallet1Unit2.141350mm extrusion T-die1Pc

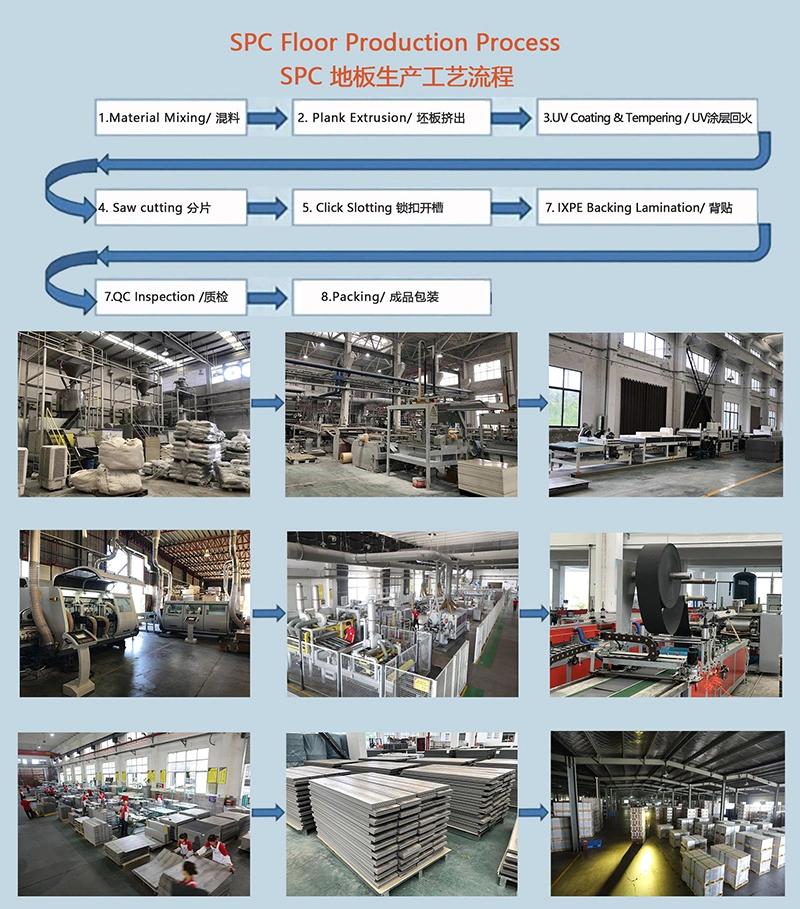

III.Production Flow

Material mixing → Extruder → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing





IV. Main Processing Steps

1. Material Mixing→ screw conveyor from 8m³  Silo (~5 Tons)  → Feeding  recipe material into the hopper loader → Extruder → Material Plasticizing →  Extrusion through T-die → Five Roller Calender

2. Plank extruded from T-die→ Five Roller Calender →Thickness calibration on 1# & 2 # rollers → Wearing film & decorative film  laminating on 3 # roller   → Temperature reduction on 4# silicon roller  → On-line embossing (EIR) on 5# roller  → Edges trimming

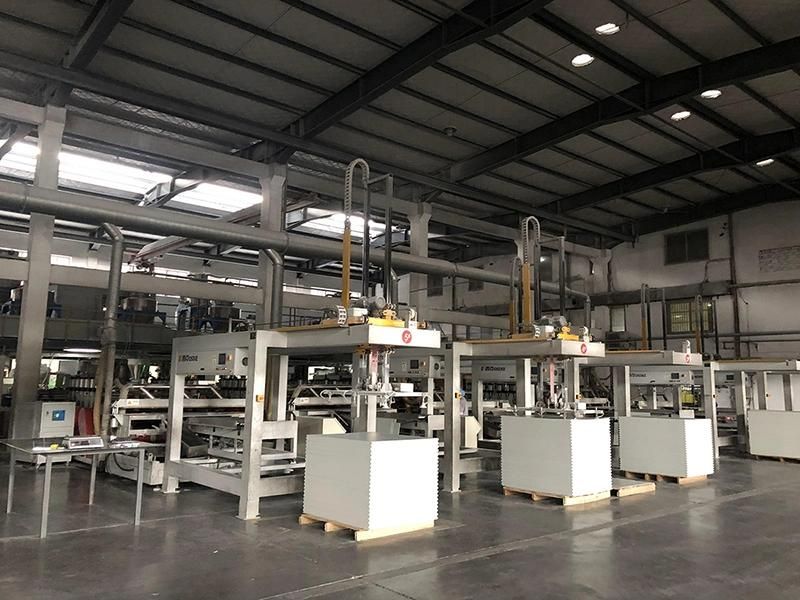

3. Plate conveying from 5 roller calender→ Edges  Trimming → Roller Cooling Bracket →Air Cooling Cabinet → Traction Machine→ Cut-to-length machine →Automatic Flipping & Stacking Machine

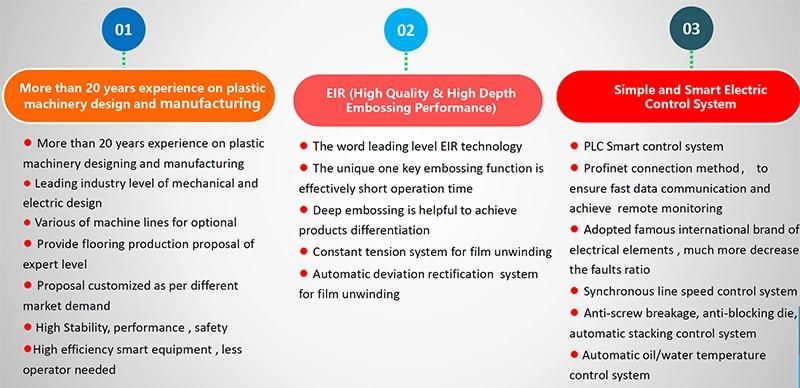

V. Advantages of BOYU WPC Production Machine Line




VI.Services

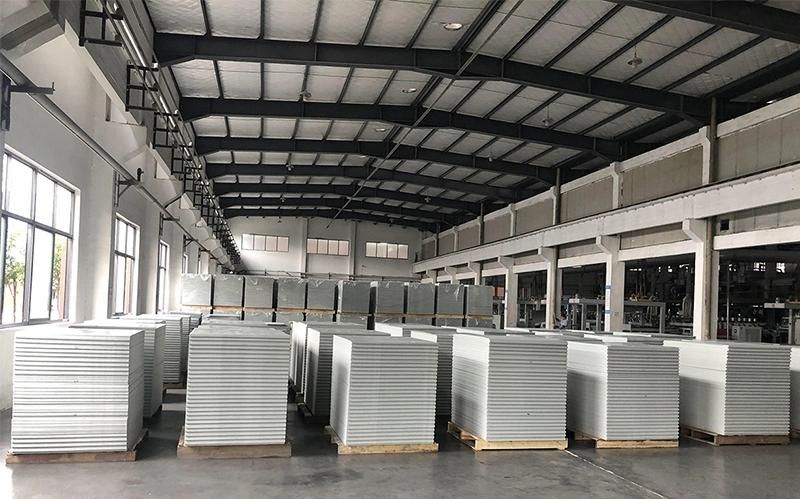

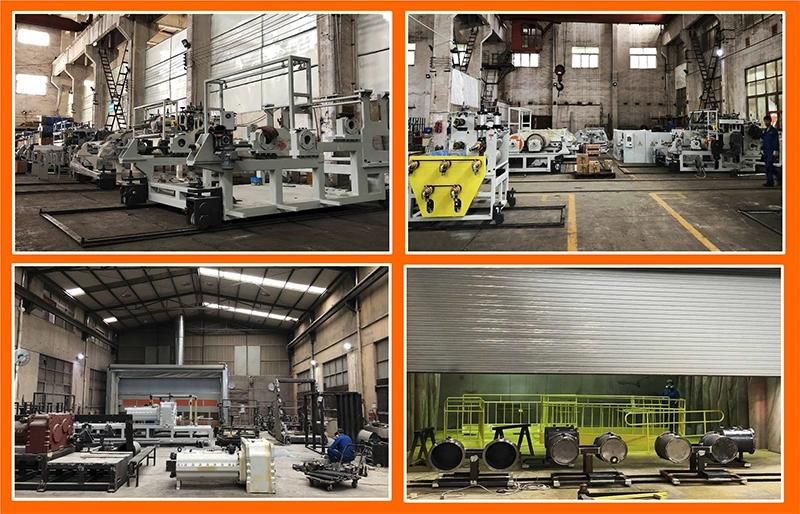

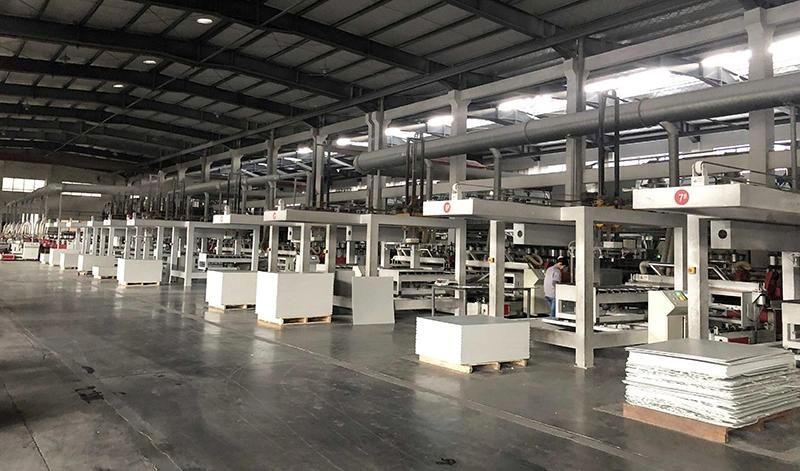

 VII. Project Case

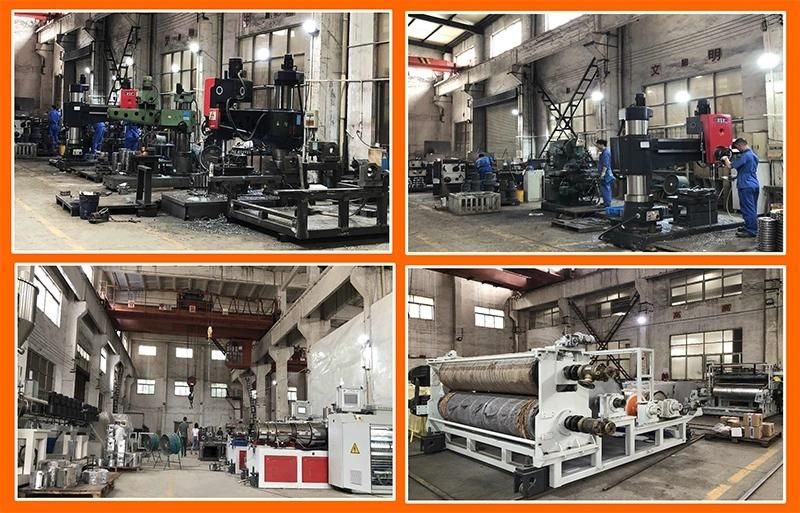

VII. Boyu Company Profile





VIII. Patents Certificates

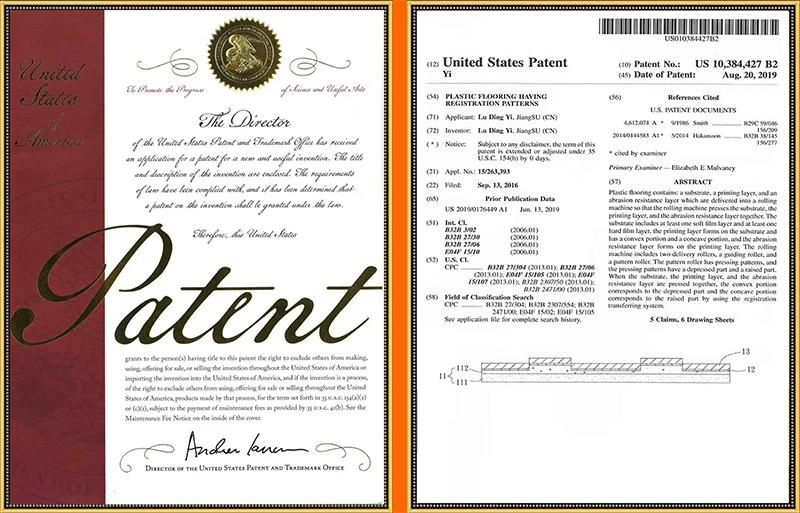

 BoYu On-line EIR Technology - United States Patent

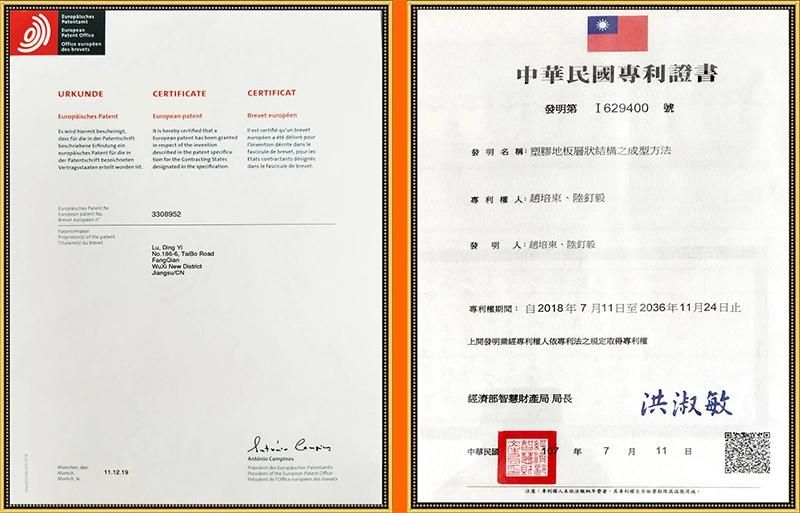

   BoYu On-line EIR Technology - Europe & Taiwan Patents
