=== Base Info ===
=== Description ===
Basic Info.
Model NO.
XLB-Q1200x1200x6/6.00MN
Usage
EVA Foaming Machine
Type of General Rubber Machinery
Laminating Machine
Transport Package
Wooden Box
Specification
CE ISO9001
Trademark
eenor
Origin
China
HS Code
84778000
Production Capacity
600 Sets/Year
Product Description
Features of EVA/PE/rubber foaming machine
*High rigidity, low deformation.
*Excellent pressure maintaining. High back pressure retaining.
*Fast open mould.
*Pressure relief when opening mould satisfy the technical needs for high, middle and low level products.
*Platen is special designed, which make temperature even on the platen.

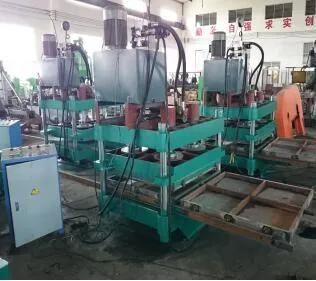

XLB-Q1200x1200x6/6.00MN hydraulic press
1. Total pressure: 6.00MN
2. Plate size: 1200X1200X70mm
3. Plate clearance: 150mm
4. Working layer: 6
5. Piston stroke: 900mm
6. Diameter of piston: 650mm
7. Number of piston: 1 sets
8. Plate pressure: 42kgs/cm2
9. Motor power: 22.5 Kw
10. Dimension: 1850*1200*4100
11. Weight: Approx 26 tons
12. Configuration: 4-pillars
13. Closing speed: >=12mm/s
14. Opening time: <5s
TYPE | XLB-Q1200*1200*6/6MN |
TOTAL PRESSURE | 6 MN |
PLATE SIZE | 1200*1200*70MM |
PLATE CLEARNACE | 150MM |
WORKING LAYER | 6 |
PISTON STROKE | 900MM |
DIAMETER OF PISTON | 650MM |
NUMBER OF PISTON | 1 |
PLATE PRESSURE | 42KGS/CM² |
MOTOR POWDER | 22.5 kw |
DIMENSION | 1850*1200*4100mm |
WEIGHT | 26T |
CONFIGURATION | 4- pillar |
CLOSING SPEED | >=12mm/s |
OPENING TIME | <5s |
