Alternative for Plasma Cutting Machine 1500W Metal Cutting Machine China Factory CNC Metal Steel 1000W Fiber Laser Cutter

Airbag Packing Co., Ltd. / 2022-06-23

After-sales Service：Online Support, Video Technical Support
Warranty：1 Year
Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry, Metalworking
Cooling System：Water Cooling
Technical Class：Continuous Wave Laser
Applicable Material：Metal

=== Base Info ===

Model NO.：FL-S3015
Structure Type：Gantry Type
Laser Classification：Fiber Laser
Laser Technology：Laser Cutting
Laser Power：1000W 1500W 2000W 3000W Optional
Working Area：3000*1500mm
Laser Source：Max,Raycus,Ipg Optional
Laser Head：Raytools,Ospri,Wsx,Precitec Optional
CNC Control System：Cypcut
Voltage：380V 50,60Hz
Max Moving Speed：80000mm,Min
Maximum Accelerated Speed：1.0g
X/Y Axis Position Accuracy：+-0.03mm,1000mm
X/Y Axis Repeat Position Accuracy：+-0.02mm
Max Loading Weight：800kg
Applications：Metalworking
OEM：Support
Water Chiller：Hanli,Fortune Laser
Machine Tool Accessories：Fortune Laser
Transport Package：Standard Wooden Case
Specification：3015
Trademark：FORTUNE LASER
Origin：China
HS Code：8456110090

=== Description ===
Alternative for Plasma Cutting Machine 1500W Metal Cutting Machine China Factory CNC Metal Steel 1000W Fiber Laser Cutter

Machine Characters

Servo dual-drive gantry structure: Bridge gantry structure, rack rail drive, the use of centralized lubrication device, easy maintenance;
Stable and practical: Reinforced welding bed, high-temperature tempering treatment vibration to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;
Industrial aesthetics design: Export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;
The operation is simple and easy to use: More than 20000 users, global technology-leading CNC laser cutting system, the flexible operation is simple, has the function of laser power adjustment, to ensure the quality of cutting, the operation is simple and convenient;
High-quality cutting: High-precision anti-collision professional laser cutting head, to ensure the best cutting effect;
Efficient material: Used in the standard specifications of metal sheet cutting, saving time and material;
Fiber laser: Use Maxphotonics laser(Other brands laser are optional), stable and reliable power in the domestic top brand, performance guaranteed;

Machine configurationModelFiber Laser Cutting Machine FL-S SeriesWorking Area3000mm*1500mmLaser source1000w MaxCNC Cutting SystemCypcut 1000 operating systemLaser headOSPRI Manual focusMachine bedFortune LaserX/Y axis gear rackFortune LaserPrecision linear guideROUSTMotor DriveJapan Yaskawa Servo motor (X750W/Y750W/Z400W)Electronic componentsFrance Schneide rReducer systemPHILANDEPneumatic componentsJapan SMCMachine bed accessoriesFortune LaserWater chillerHanliWaste recycling equipmentFortune Laser
Note: This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget. Please feel free to contact us for more details. Alternative for Plasma Cutting Machine 1500W Metal Cutting Machine China Factory CNC Metal Steel 1000W Fiber Laser Cutter

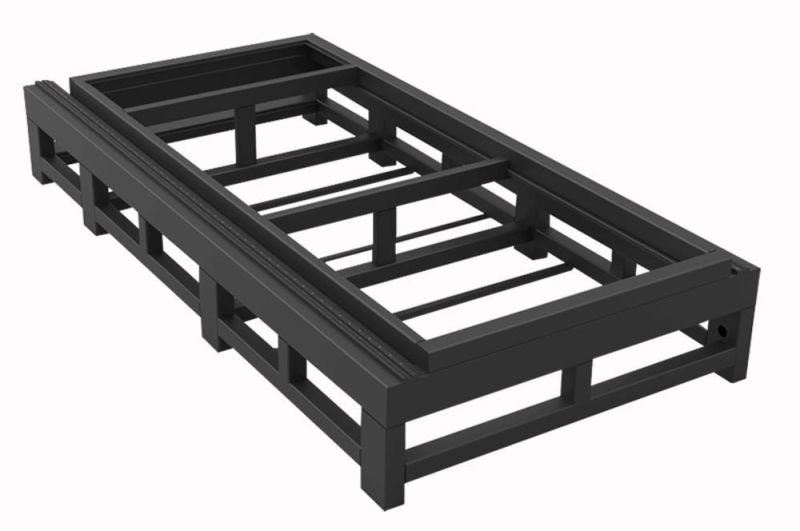

Strong machine lathed bed

The lathed bed is after aging treatment: 1600ºChigh temperature heat treatment, 24 hours with furnace cooling and precise co2 protection welding, which ensures along-term stability and no deformation.Aerospace-grade aluminum gantry

Aerospace-grade aluminum light quality, high speed, good dynamic response, fast acceleration.
Beam as a whole by the finite element analysis optimization of high rigidity, lightweight design, and durable. Alternative for Plasma Cutting Machine 1500W Metal Cutting Machine China Factory CNC Metal Steel 1000W Fiber Laser Cutter

OSPRI laser head

(1). Famous brand in China.
(2). Laser cutting head with high precision fiber laser dedicated anti-collision cutting head to ensure high cutting accuracy and cutting efficiency. Cypcut control system

Cypcut controller is designed for sheet metal processing industry launched a full-featured open-loop control system.

Easy installation, easy adjustment, excellent performance, and complete solutions are popular fiber laser cutting machine control systems. Alternative for Plasma Cutting Machine 1500W Metal Cutting Machine China Factory CNC Metal Steel 1000W Fiber Laser Cutter

Laser Source- MAX 1000W
100,000 hours lifetime More stable and cost-efficient Free maintenance1kW/1.5kW/2kW/2.5kW/3kW/4kW/6kW/8kW/10kW/12kW/15kW/20kW
Applications
Suitable for processing metal sheets such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, inconel, titanium alloy, etc.
Alternative for Plasma Cutting Machine 1500W Metal Cutting Machine China Factory CNC Metal Steel 1000W Fiber Laser Cutter
