Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price

Guangzhou Beka Auto Accessories Co., Ltd. / 2022-06-23

  • After-sales Service:Whole Life Technical Support
  • Warranty:24 Months
  • Laser Visibility:Visible
  • Applicable Material:Metal
  • Cooling System:Air Cooling
  • Technical Class:Pulse Laser

=== Base Info ===

  • Model NO.:MLF-20W,30W,50W,60W,100W
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Solid Laser
  • Type:Optical Fiber Laser Marking Machine
  • Marking Method:Scanning Marking
  • Power:20W
  • Transport Package:Plywood Package
  • Specification:Working area 150*150mm, 175*175mm, 300*300mm
  • Trademark:Minglan
  • Origin:China
  • HS Code:845611
  • Production Capacity:5000000 Sets Per Year

=== Description ===

Basic Info.

Model NO. MLF-20W/30W/50W/60W/100W Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Power 20W Transport Package Plywood Package Specification Working area 150*150mm/ 175*175mm/ 300*300mm Trademark Minglan Origin China HS Code 845611 Production Capacity 5000000 Sets Per Year

Product Description

MINGLAN Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price

Application Advantages

Scribing, Drilling

Surface treatment

Sheet metal cutting, Welding

Marking on fly

Metal surface processing, Peeling coating,


Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines PriceMinglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines PriceColorful laser marking machine equipped with JPT mopa M7 laser,

JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications



Applicable Industries of colorful Fiber laser marking machine:
Fiber laser marking machine is suitable for processing fields that need high marking depth, smoothness and accuracy.

Fiber laser marking machine is widely used in: mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, medical device industry, glasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Electronic ComponentsResistance, capacitance, chips, printed crcuit boards, computer keyboard
Apparatus And MeterPanel signs, precision equipment,etc
InstrumentPanel signs nameplate, precision equipment, etc
Hardware ToolsKnives, tools,measuring tools, cutting tools, etc
Automobile PartsFistons, piston rings, gears, shafts, bearings, clutch, lights, etc
Mechanical PartsBearings, gears,standard parts, motors, etc
Daily NecessitiesHandicrafts, zipper,key holder, sanitary ware, etc
Jewelry RingsJewelry, gold, silver, etc
Food,drinking packingPlastic, packings, etc

Compared with the traditional mechanical marking, chemical corrosion, screen printing, printing ink etc., Fiber laser marking machine carving has the advantages of low cost, high flexibility, environmental protection; It's easy to control and operation by the computer system. The laser beam on the workpiece surface generated by the strong permanent marker is its outstanding characteristic.

Details of Minglan fiber laser marking machine
Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines PriceMinglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines PriceMinglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price

Technical Parameters of colorful laser marking machine

Model:
MLF-20W
MLF-30W
MLF-60W
MLF-70W
MLF-80W
MLF-100W

Laser Source: Mopa M7

Output cable length: 2M

Main board and control software: Genuine EZCAD

Average output power :
MLF-20W> 20W
MLF-30W> 30W
MLF-60W> 60W

Center Wavelength: 1064nm

Power range(%): 0%-100%

Standard Marking Area:
110×110 mm
150*150mm
1758175mm

Marking Depth: 0.01~0.06mm

Marking speed: 2000mm/s

Positioning speed 10m/s

Pulse width(ns): 6~ 350 ns

Output stability: < 5%

Maximum pulse energy: 0.8mJ

Min. linear width: 0.001mm

Min. Character size: 0.1mm

Repetition Accuracy: 0.001mm

Repetition Frequency range (Khz):1 ~ 4000kHz;

Frequency adjustable range  1-4000Khz

Output Beam Diameter(mm): 7±0.5

Beam Quality m2: < 1.3

Graphic format supported: .bmp, .jpg, .tga,. png, .tif, .ai, .dxf, .dst, .plt, etc

Supply voltage: AC 110/220V, 50/60Hz

Cooling way : Air cooling

Operating Temperature(ºC): 0-40

Package dimension: 83*79*50cm

Package gross weight: 68KGS

CE Certificate : Approved

FDA certificate : Approved

ROHS certificate : Approved

Application domain of colorful laser marking machine::

Widely used in integrated circuit chip, computer accessories, industrial bearings, watches and clocks, electronic and telecommunication products, aerospace devices, all kinds of auto parts, home appliances, hardware tools, mold, wire and cable, food packaging, jewelry, tobacco, and protection and many other fields of graphics and text markup, and mass production line operations.

Applicable material of colorful laser marking machine:

Metal and metal oxide, high hardness alloy, oxide, plating stripping layer, ABS, epoxy resin, engineering plastics, etc.

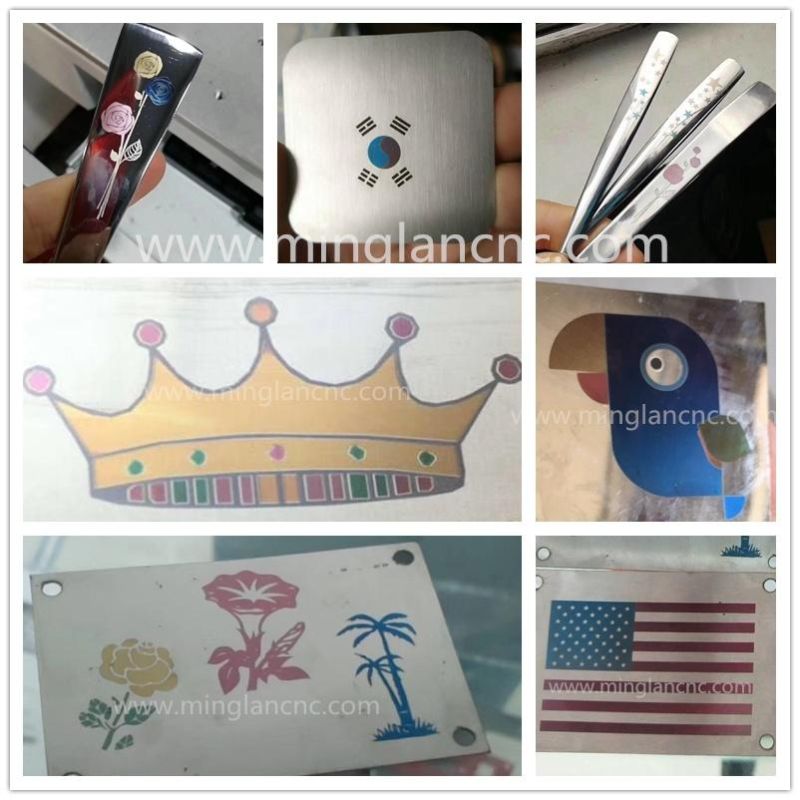

Samples photos of colorful Fiber laser marking machine:
Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines PriceMinglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines PriceMinglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price
Package of
of colorful laser marking machine:
Standard export package, plywood package, could perfect protect machine.
Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price
Our laser marking machine plant:
Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price
Customers visit us:
Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price
Good feedback from customers:
Minglan Laser-20W 30W 50W 100 Watts Metal Stainless Steel Brass Ipg/Raycus/Max/Jpt/Mopa Wuhan Fiber CNC Laser Marker Engraving Marking Etching Machines Price
Our service of Fiber laser marking machine,
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;

During sale:
We would deal with all the production and shipping affairs, after everything is ready,we would tell you everything goes well here;

After sale:
1.We would provide English Version working manual.

2.If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.

3.Machine warranty is 2 years, Raycus source is 2 years.
So if your machine has any unintentional damages,we would provide parts for free.


4.If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.

5. Could be remote control, if you need.

Thank you for reading !
