High Performance CNC Fiber Laser 1000W 1500W Laser Welding Machine

• Warranty：2 Years
• Application：Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
• Technical Class：Continuous Wave Laser
• Control：Automatic
• Power Density：Deep Fusion Welding
• Laser Classification：Optical Fiber Laser

=== Base Info ===

• Model NO.：laser welding machine 1000w
• Type：Automatic Laser Welding Machine
• Name：Laser Welding Machine
• Laser Source：Raycus
• Laser Power：1000W 1500W 2000W
• Material：Metal
• Laser Wavelength：1070nm
• Laser Welding Depth：Max 4mm
• Laser Welding Frequency：≤100Hz
• Adjusting Range of Light Spot：0.1-3.0mm
• Integrity Power：Max 8kw
• Power Supply：3phase 380V
• Sighting Positioning System：Automatic Wire Feeding Machine
• Cooling：Water Cooling
• Optical Fiber Line Length：5m
• Master Unit Dimensions：1440*840*1360mm
• Transport Package：Plywood Case Packaging
• Specification：1440*840*1360mm
• Trademark：Baokun Brand
• Origin：Weifang, Shandong, China
• HS Code：8456110090
• Production Capacity：200sets,Month

=== Description ===

Basic Info.

Model NO. laser welding machine 1000w Type Automatic Laser Welding Machine Name Laser Welding Machine Laser Source Raycus Laser Power 1000W 1500W 2000W Material Metal Laser Wavelength 1070nm Laser Welding Depth Max 4mm Laser Welding Frequency ≤100Hz Adjusting Range of Light Spot 0.1-3.0mm Integrity Power Max 8kw Power Supply 3phase 380V Sighting Positioning System Automatic Wire Feeding Machine Cooling Water Cooling Optical Fiber Line Length 5m Master Unit Dimensions 1440*840*1360mm Transport Package Plywood Case Packaging Specification 1440*840*1360mm Trademark Baokun Brand Origin Weifang, Shandong, China HS Code 8456110090 Production Capacity 200sets/Month

Product Description

                            High performance CNC fiber laser 1000w 1500w laser welding machine

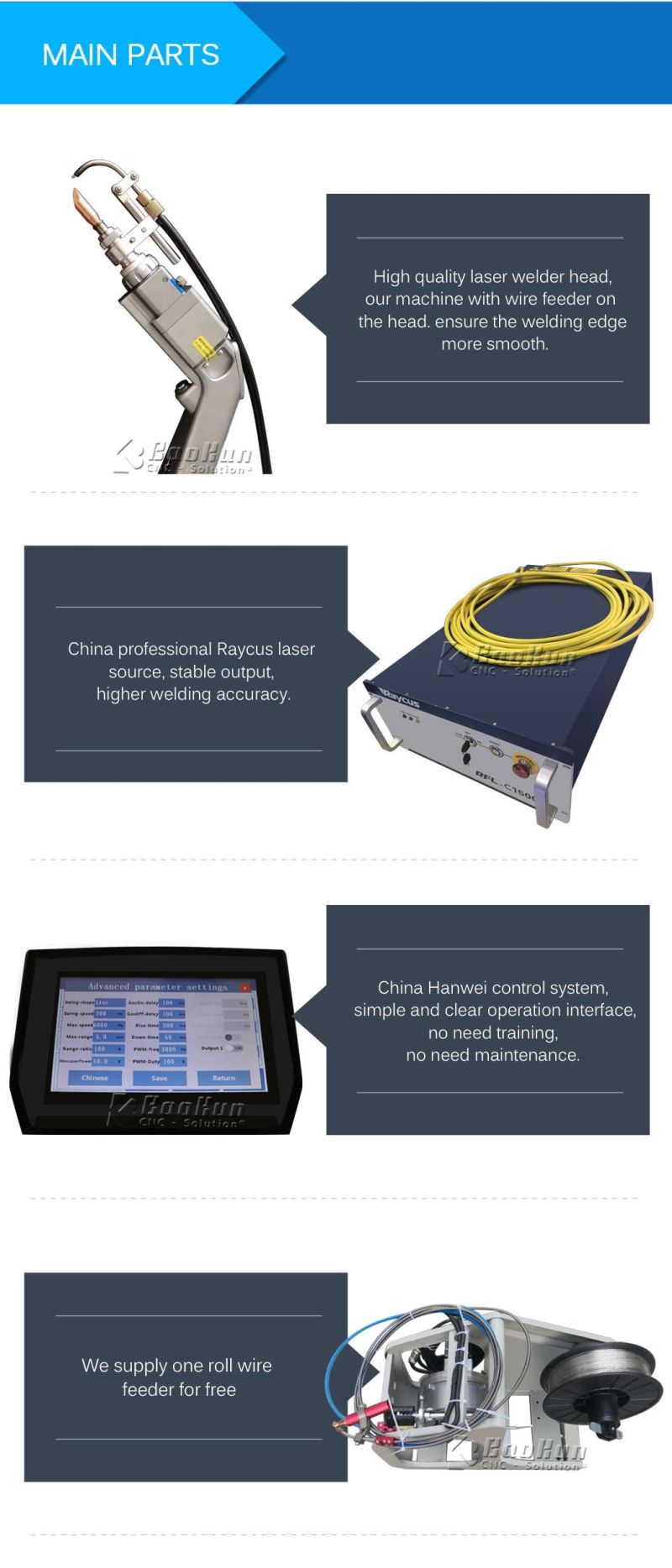

Baokun  laser welding machine adopts the latest generation of fiber laser and is equipped with self-developed welding head. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. It can perfectly replace the traditional metal materials such as thin stainless steel plate, iron plate and galvanized plate,The equipment has high reliability and can be continuously and stably processed in 24 hours. The compact design ensures a minimum floor space and is easy to move.

Name	laser welding machine
Maximum laser power	1000/1500w
Laser wavelength	1070nm
Laser welding depth	≤4mm
Pulse width	≤20ms
Laser welding frequency	≤100Hz
Adjusting range of light spot	0.1-3.0mm
Size of light spot	0.2-3.0mm
Integrity power	≤8KW
Power supply	380V/3-phase/50Hz/60A 220V/Single phase/50Hz
Maximum bearing of standard work bench	≤100kg
Optical fiber line length	5m
Repeating precision of work bench	±0.01mm
Positioning precision of work bench	±0.02mm
Sighting positioning system	automatic wire feeding machine
Cooling method	Water cooling

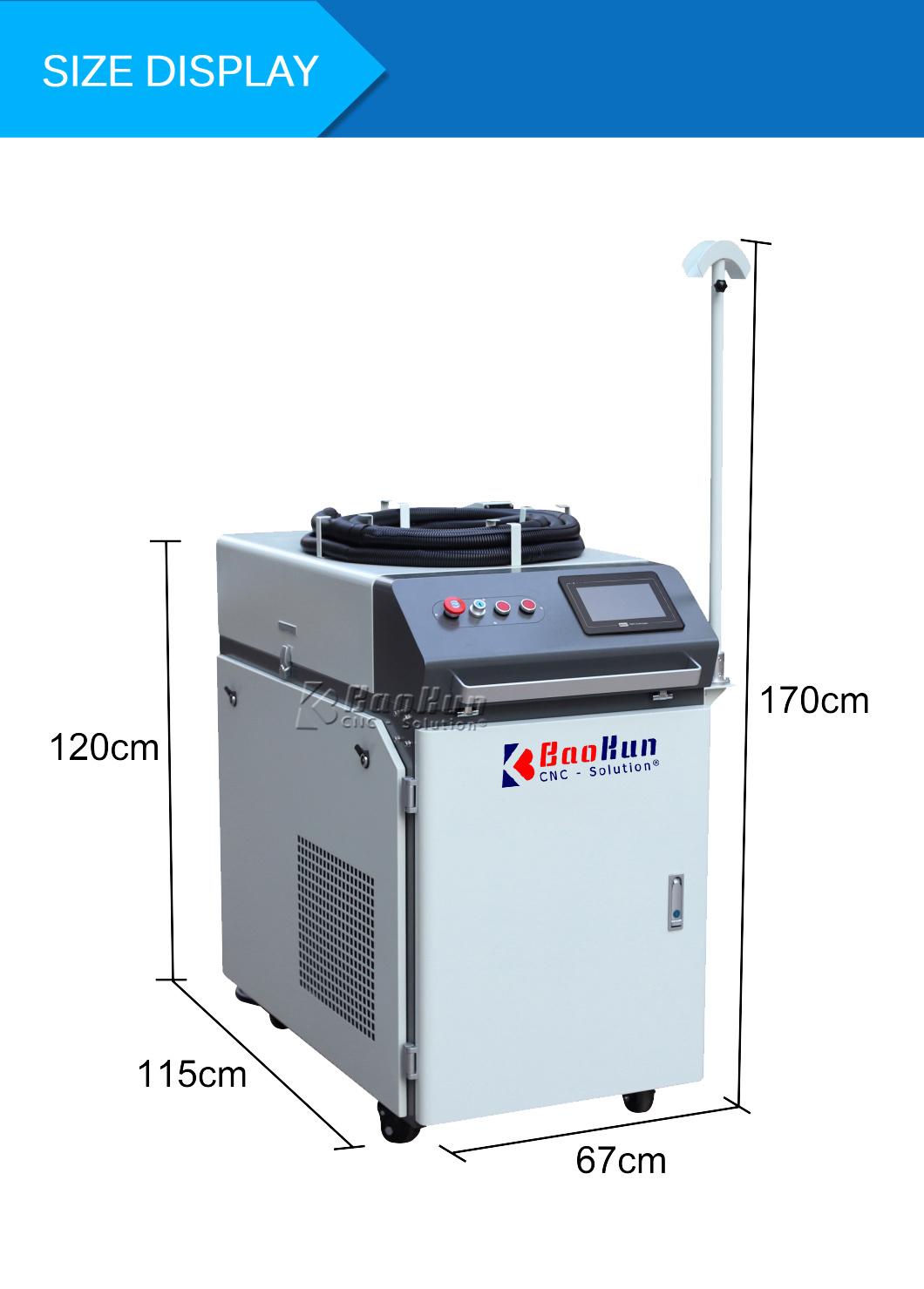

Master unit dimensions	1440*840*1360mm

Different welding of non-standard metal parts, manual welding is more flexible;

Perfect welding quality, small deformation, high penetration depth, no weld penetration;

A variety of welding processes, spot welding, seam welding, welding, etc.;

High welding efficiency, replacing traditional TIG welding equipment;

The largest welding benefit cost, no consumables energy saving and environmental protection



1.What is the guarantee period?

2 years warranty for whole laser welding machine , we will free take charge of any problem within guarantee
period (except man-made damage and consumable parts). outside the period we will still do our best to help to keep the
machine running well.


2. How to use the machine?

Operation instruction and video will help you to use the machine, also our engineer will teach you any time
by email when you are confused.


3.How pay?

TT, Paypal, Western Union. L/C Other payment need confirm with us.


4. About the after-sale service:

1.Any question with prompt reply 24 hours online.

2.we support video meeting for solve the problem you meet.
