Exploration Drilling Machine 150m Mining Diamond Core Drilling Rig Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. BJ-150 Drilling Way Rotary Drilling Angle 0 ° -360 ° Drilling Diameter Φ36.5mm Φ46.5mm Spindle Speed 400-1400 R / Min Spindle Output Torque 87-300 N.M Rated Pulling Force 30 Kn Rated Pulling Speed 0.85 M / S Fuel Supply Method Double Gear Pump Rated System Pressure P 16 MPa Oil Pump Model Cbf-40 / 10 Hydraulic Oil Model Anti-Wear Hydraulic Oil Yb-N46 / Yb-N32 (Winter) Motor Model Manual Variable Motor A6V55mA Motor Specifications Y180m-4, 18.5 Kw Equipment Weight Host 166kg;Pillar 40kg; Operating Platform 86kg; P Transport Package Wooden Packaging Specification 166kg Trademark Beijun Origin China Production Capacity 1000 Set a Month

Product Description

Exploration drilling machine 150m mining diamond core drilling rig machineBJ-150 Hydraulic Prospecting Core Drilling Rig
 Full hydraulic rig, tunnel rig, metal mine full hydraulic rig, metal mine prospecting rig, Underground Prospecting Rig, Surface Prospecting Rig, Surface Drilling Rig, Core Drilling Rig, Diamond Core Drilling Rig
1, The characteristics of BJ-150 full hydraulic drilling rig
1) HD-150 full hydraulic drilling rig has good dismantling performance, convenient relocation and transportation, flexible drilling rig layout, and mechanized drilling and unloading of drill rods, which can reduce the labor intensity of workers, improve work efficiency, and can be adjusted steplessly.
2) BJ-150 full hydraulic drilling rig has linkage function, centralized operation through the console, simple and safe, rotary shaft adopts through-hole structure, the length of the drill pipe is not limited by the drilling process, and can also be used for diamond rope extraction Core drilling.
3) BJ-150 full hydraulic drilling rig adopts full hydraulic operation, which makes the structure more reasonable and more complete. It adopts variable motor and has a wide range of speed adjustment. It is suitable for high-speed drilling of alloy steel and low-speed drilling of hard alloy and is suitable for tunnels. Drilling at any inclination angle, or surface drilling.
2, BJ-150 Full Hydraulic Rig Structure

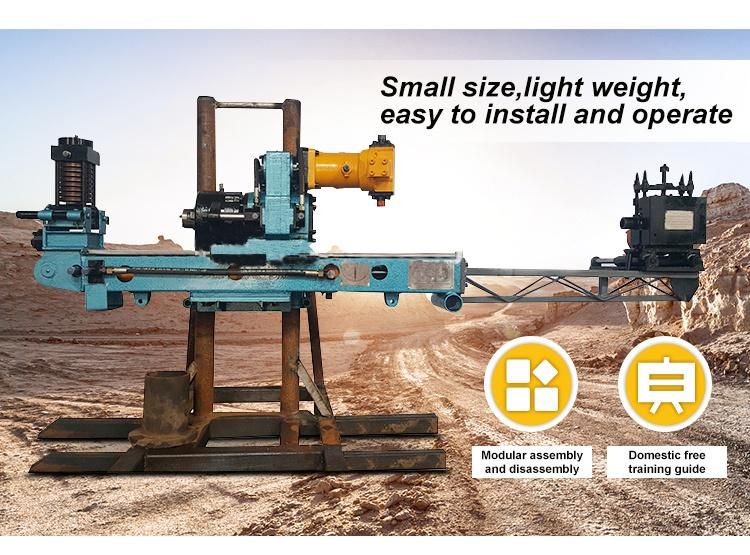

BJ-150 full hydraulic drilling rig adopts  full hydraulic power head structure, which is composed of three parts: main machine, pump station and console.
3, BJ-150 full hydraulic prospecting rig parameters

Model	BJ-150
Drilling angle	0 ° -360 °
Drilling diameter	Φ36.5mm Φ46.5mm
Drilling depth	150 (ø33 steel drill pipe); 120 (ø43 steel drill pipe);150 (ø43 aluminum alloy steel drill pipe)
Spindle speed	400-1400 r / min
Spindle output torque	87-300 N.m
Rated pulling force	30 KN
Rated pulling speed	> 0.85 m / s
Fuel supply method	double gear pump
Rated system pressure P	16 Mpa
Oil pump model	CBF-40 / 10
Hydraulic oil model	anti-wear hydraulic oil YB-N46 / YB-N32 (winter)
Motor model	manual variable motor A6V55MA
Motor specifications	Y180M-4, 18.5 KW
Equipment weight	Host 166kg; Pillar 40kg; Operating platform 86kg; Power car 210kg
