Hydraulic System of Machine Tool Equipment

• Pressure：Low Pressure
• Work Temperature：Normal Temperature
• Voltage：380V
• Installation：Vertical
• Material：Alloy Steel
• Transport Package：Nude Paackage

=== Base Info ===

• Model NO.：HPM
• Trademark：HYPHEN
• Origin：Wuxi
• HS Code：8412291000
• Production Capacity：3000

=== Description ===

Basic Info.

Model NO. HPM Trademark HYPHEN Origin Wuxi HS Code 8412291000 Production Capacity 3000

Product Description

Application:
Hydraulic Compact power packs HPM type are designed to drive and control hydraulic actuators. They are suited for
operate in both industrial and mobile applications. MH type power packs are available with different assembly variants for
electric motors, pumps and tanks. Modular design allows to realize thousands of configurations, optimized with small
dimensions
Design:

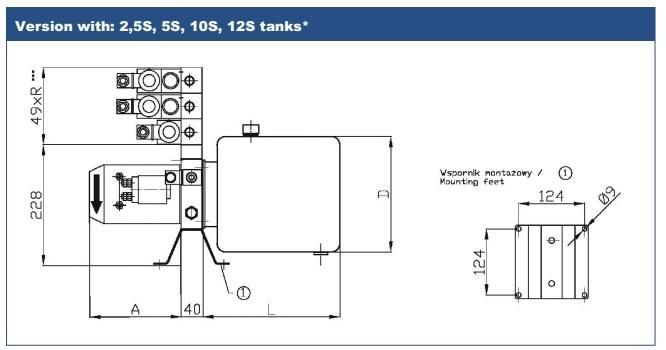

In standard version, HPM power pack is composed of vertical motor-pump unit, steel or aluminium reservoir with return
filter (with visual clogging indicator), flow and pressure control valves, and solenoid operated directional valve. In order to
meet requirements of specific hydraulic systems, standard version may be modified by using additional valves and
blocks.

Basic version may be modificated by using monoblock valve or by complete removal of directional valves. On customer's
demand or when it is necessary, it is possible to upgrade HPV type power pack to special executions as follows:
1 - with proportionals
2 - with heat exchangers ( coolers and/or heaters)
3 - with multiple pumps or several independent pump units
4 - with fixed or variable displacement vane or piston pumps
5 - with additional hand pump
6 - with control valves in sizes: NG 16, NG25, NG 32
7 - with optional: pressure switches, transducers, pressure filters
8 - with other single-phase motor or DC motors
9 - with stainless steel elements
