PVC Water Plastic Pipe Making Manufacturing Machine

=== Base Info ===

=== Description ===

model

uPVC63

uPVC160

pipe range(mm)

20-110

110-160

capacity(kg/h)

100

150-200

center height(mm)

1000

1000

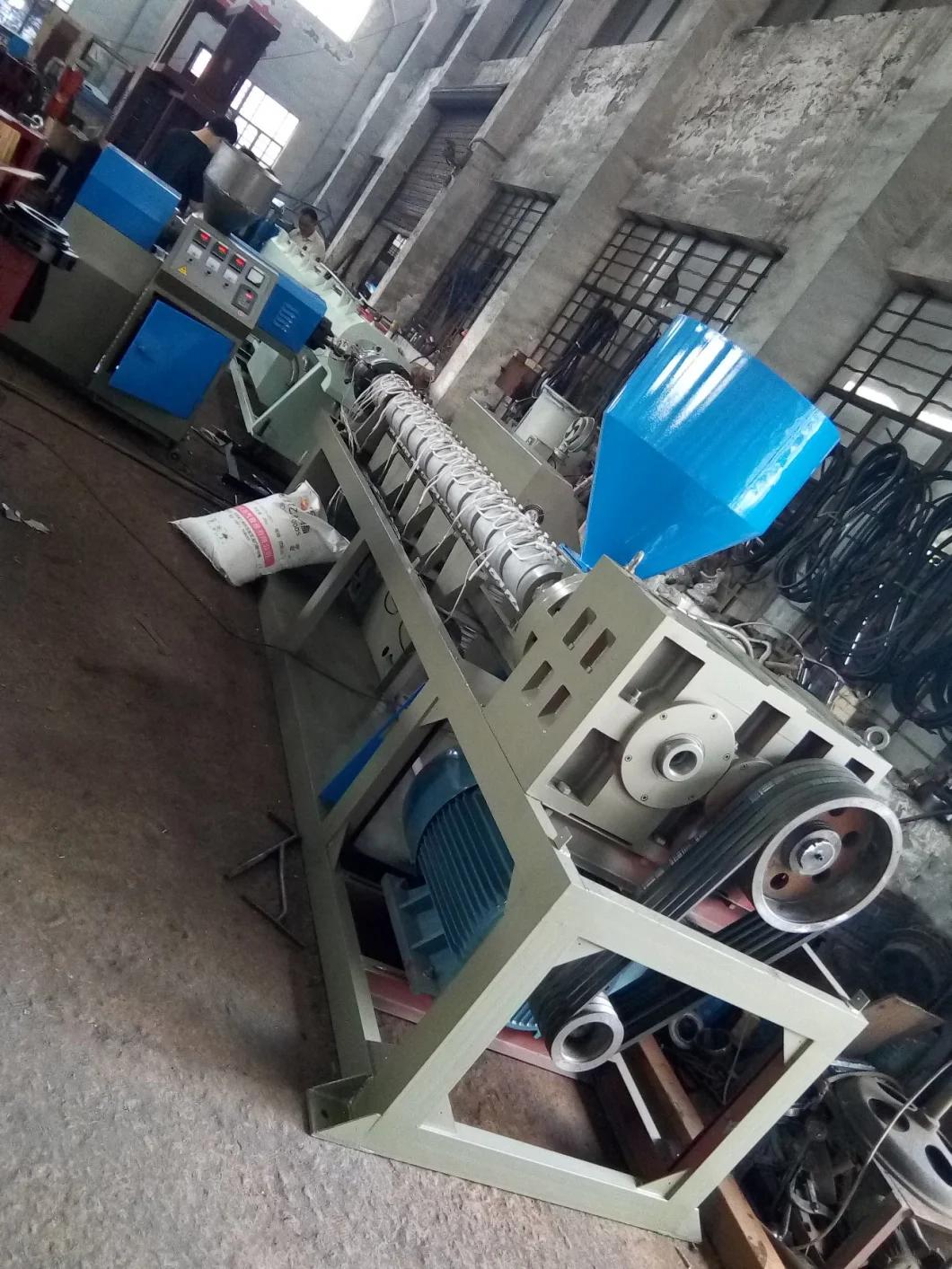

single screw
extruder

extruder model

SJ65

SJ90

screw diameter(mm)

 65

90

L/D

 25:1

25:1

Screw rotation speed(rmp)

 80

100

motor power(kw)

 22

37

heating power(kw)

 16

36

cooling blower power(kw)

0.75

0.75

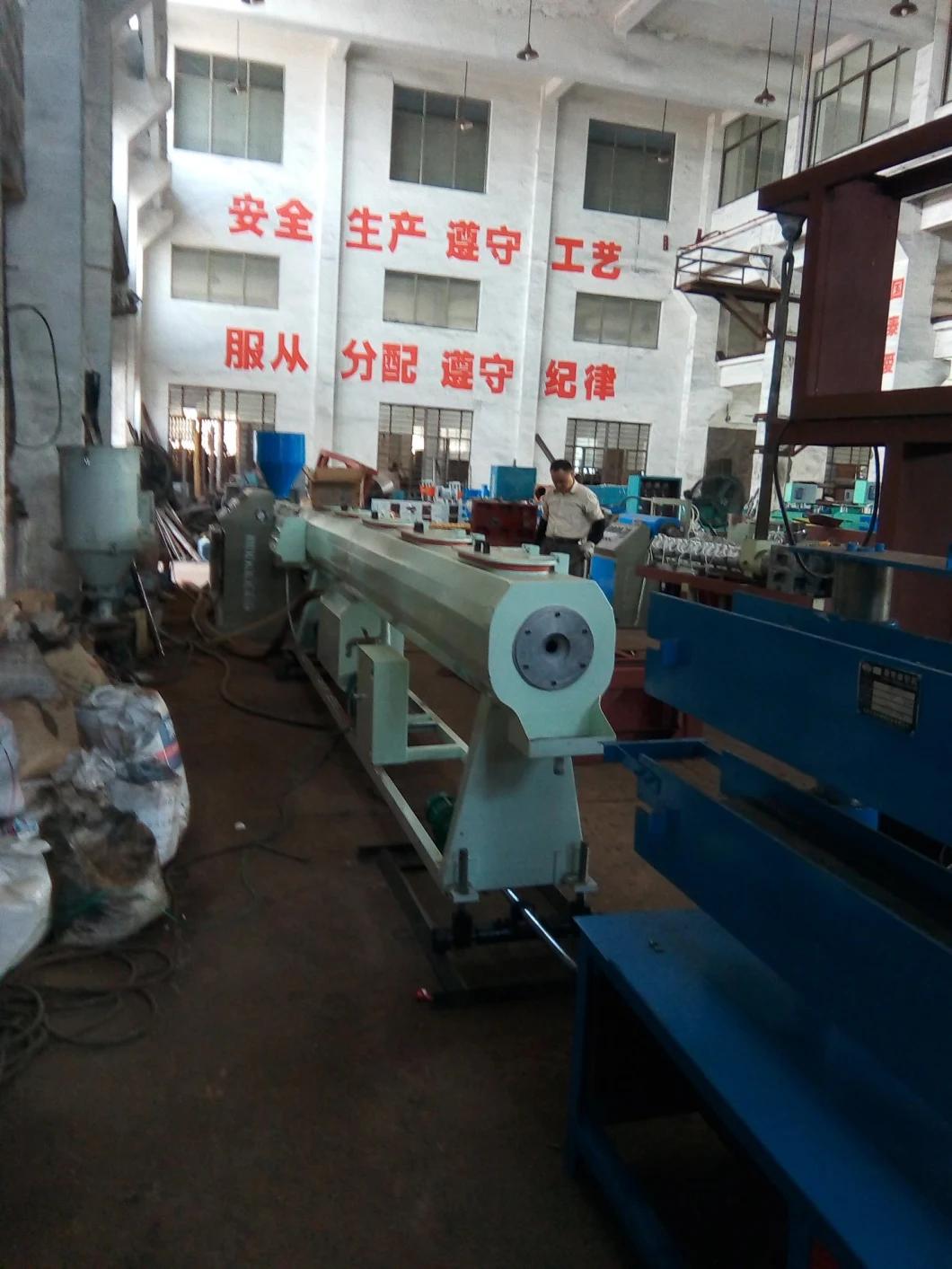

vacuum calibration tank

length of calibration case(mm)

6000

 6000*2

vacuum degree(mpa)

0-0.1

0-0.1

absorbing gas speed(m3/h)

60

 60*2

water pump power(kw)

4

4

longitudinal moving motor power(kw)

1.1

 1.1

 Spray cooling tank

length of spraying tank(mm)

4000-6000

6000-8000

water pump power(kw)

4

 5.5*2


haul off machine

driving power(kw)

2.2

4

max pull(N)

7000

12000

effctive haul off length(mm)

1500

2000


Pneumatic blade type cutter

blade diameter(mm)

350

500

driving power(kw)

1.1

 1.1

working air pressure(mpa)

0.7-0.7

0.7-0.7

            stacker

length(mm)

6000

6000
