Width 400mm Sheet PVC Edge Banding Production Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ-65/132 Raw Material PVC+Chemicals, Additives as Per Production Process Inverter Taiwan Teco Products Intermediate Relay Japanese Omron Products Breaker,Contactor Siemens Products Buttons France Te Products Transport Package Export Standard Packing Specification SJSZ-65/132 Trademark Weier Origin Qingdao, China HS Code 84772090 Production Capacity 20 Sets/Month

Product Description

We export our machines to about 40 countries,welcome to visit us.We aim to do long term business with our clients                                               Extruder machine to make pvc furniture band

Equipment Discreption

1)PVC single and multi edge banding production line ,using to extruding single strip edge band ,Mainly use PVC granule as material,after machining ,can produce wood grain,single /double /three color products ,it's one kind product to protect ,deck and beautify the furniture .



2)It is applicable to mechanical banding of solid furniture,composite doors and wpc doors.

Process flow of pvc edge banding machine
1. pvc sheet edge banding extrusion line ( twin screw extruder---T type die---three roller calender--cooling bracket--haul off-winder,etc)

2. slitting machine

3. three color printing machine or hot stamping machine for choice

Equipment lists

No	item	Quantity
1	Screw loader for extruder	One set
2	SJSZ-65/132 conical twin screw extruder	One set
3	Hanger type mold	One set
4	Electric control system	One set
5	Three roller calender	One set
6	Roll temperature regulator	One set
7	Cooling transmission bridge	One set
8	Side trimming unit	One set
9	Haul off machine	One set
10	Length metering machine	One set
11	Gluing unit	One set
12	Haul off machine	One set
13	Double position winder	One set
14	Spare parts	One suit

Summarization

No	item	parameter
1	Suitable resin	PVC process flow formula
2	Max.Sheet width	400mm
3	Sheet thickness	0.4-2mm adjustable
4	Capacity	Max.180-250kg/hr
5	Power supply	380V 3phase 60HZ or as per your request
6	Air consumption	80L/min
7	Water consumption	100L/min

Auxiliary machines

1	Splitting system
2	Hot stamping unit (online type)--edge band surface pattern
3	SWP-360 plastic crusher
4	SMP-500 plastic milling-milling pvc powder
5	SHR-300/600 Mixer-mixing raw material

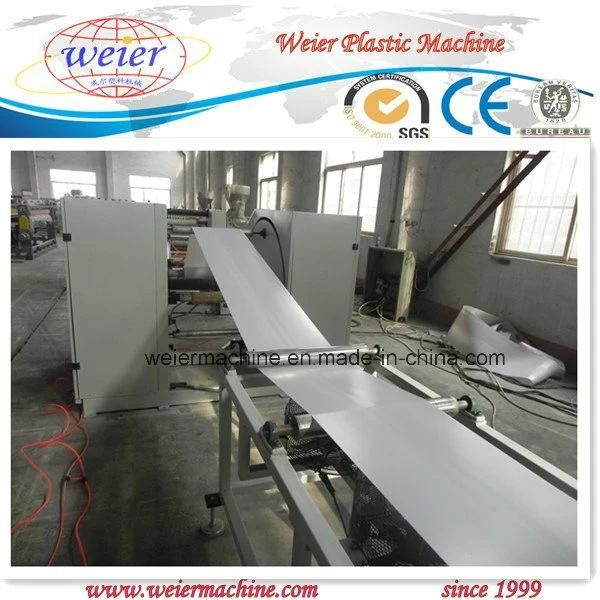

Machine pictures

More details  about  our services:

The supplier provide service manual and maintenance instruction of main electric appliance ,limb , usage manual of equipment We also supply water,electricity,gas of equipment and installation drawing.


The supplier is responsible for installation,debug and training, we will realize guarantee of repair; replacement of substandard products within one year. After the machine leaves factory. Fittings of the machine will supply at preferential price after one year .


The seller will send one or two technician to the buyer'plant  to debugging,and the tickets ,eating ,transportation and visa fee will be paid by the buyer ,also including 50USD salary/person /day



If anyting intertst ,please contact us at  your best convenience,we can produce the overwhelming majority of plastic extrusion machines



Contact person:Victor



Phone number:0086-13705422741

"Excellent Quality and Reasonable Price" is our company's quality policy;
"Honest Service and Win-win Cooperation" is our company's core concept.
we offer turn key project, with lifelong after sale service!

we have ready machines in factory for your test and visit! sincerely welcome all friends to visit our factory!



Its my honour to  do something for you.
