ASA PMMA Coated PVC Composite Tile Making Machine for Colonial Tile/Bamboo Tile/Synthetic ...

=== Base Info ===

=== Description ===

Basic Info.

Model NO. ACE80/156 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Cavity Single Cavity Gearbox High Torque Vertical Type Bearings NSK/SKF Motor Brand Weg, Siemens Extrusin Speed 1.0-2.0m/Mi Screw and Barrel Bimetallic Barrel & Screw PLC Controller Siemens/Schneider Transport Package Wood Pallet and Film Covered Specification 880mm/1040mm Trademark ACEEXTECH Origin China HS Code 8477800000

Product Description

ASA PMMA coated PVC composite tile making machine for colonial tile/bamboo tile/synthetic Resin Tile
 Product Description:

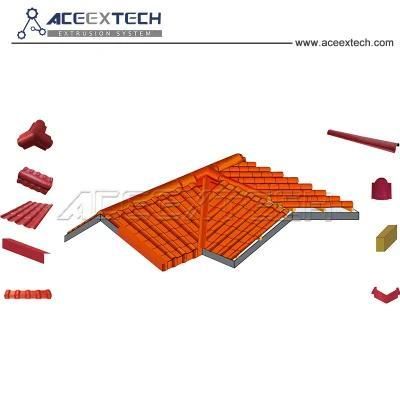

for production of variety of classic shapes, such as colonial style in Brazil, bamboo style in China and European
big wave style which are consistent access to the customers; Bimetallic screw and barrel can meet 60-120phr
high fill formula production requirements.

Advantages:1.Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic
   screw and barrel can guarantee perfect solution;2.Co-extruder equipped with dehumidifying and drying system can be applied to produce PMMA/ASA composite
   material, which ensuresthe good performance and high quality of final product;3.T-die adopted hanger style can be applied to produce single PVC melt material or multi-layer compound
   material, and flow surface adopts polish and electroplated treatment;4.Calibrator usually adopts 18-22couples cast aluminum module and each one is composed of bush & mandrel,
   completely occlusion, ensures the shape and size of the product, also cooling method adopts frozen cooling
  air which greatly improve cooling effect;5.Guillotine cutter ensuing flat and chip free cutting, and tracking cutter especially for thick and high filler product.6.Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;

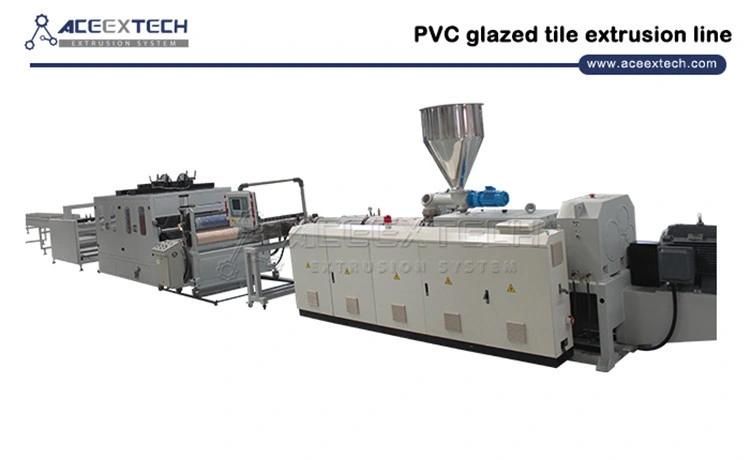

Work flow and detailed information:

Feeder	-To feed material into extruder;

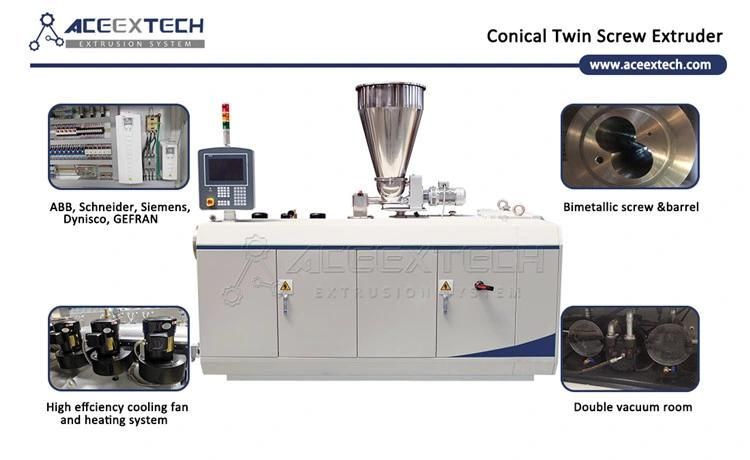

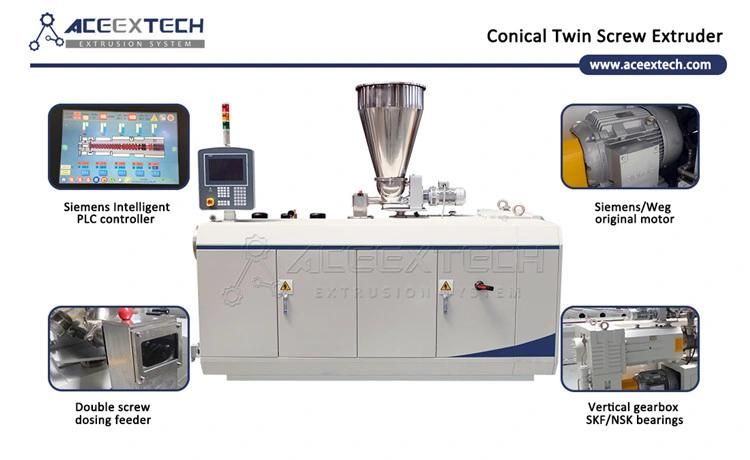

Extruder	-World famous brand electrical component such as Siemens,Schneider,  ABB etc; -High torque gearbox with adopts NSK/SKF bearing; -Siemens/WEG original motor achieved global after service; -Bimetallic screw and barrel; -Intelligent PLC controlling system with human-friendly interface.
Co-extruder	-World famous brand electrical component such as Siemens,Schneider, ABB etc; -High torque gearbox with adopts NSK/SKF bearing; -Siemens/WEG original motor achieved global after service; -Intelligent PLC controlling system with human-friendly interface.

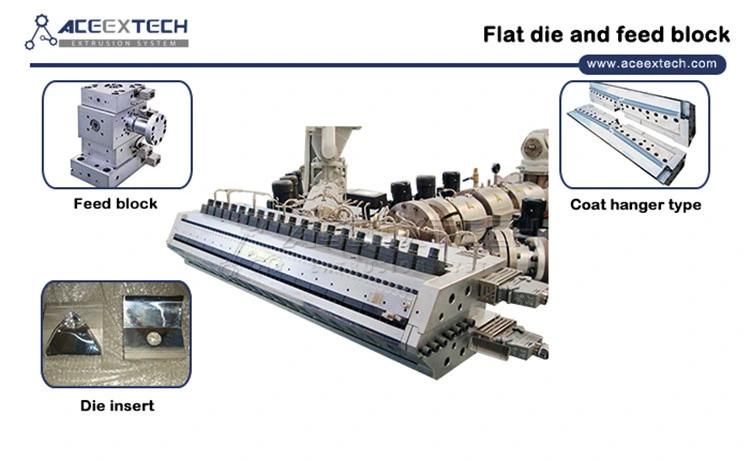

Flat die and feed block	-Coat hanger type -5CrNiMo steel and P20 material -Apply to single layer and muti layer with top layer adopts PMMA/ASA co-extrusion -Support trolley is include
Embossing roller	-Speed driving by frequency inverter -Compacting control by pneumatic -Offer the pattern on surface of product

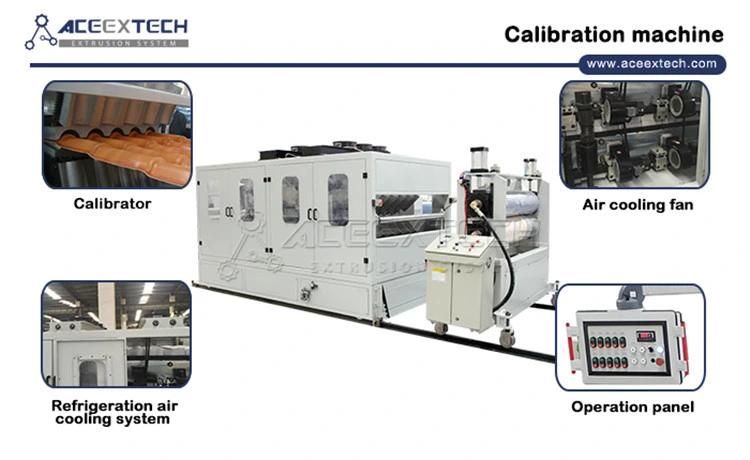

Calibration table	-Speed driving by frequency inverter -Calibrator usually adopts 18-22couples cast aluminum module and each one is composed of bush andmandrel, completely occlusion, ensures the shape and size of the product -Cooling method adopts both air fan and frozen cooling air which greatly improve cooling effect -Independent operation panel for convenient operation

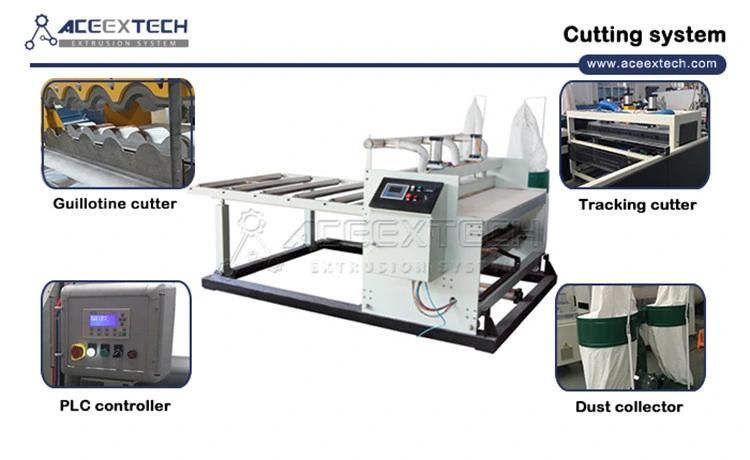

Cutting system	-Guillotine cutter ensuing flat and chip free cutting -Tracking cutter especially for thick and high filler product. -Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently

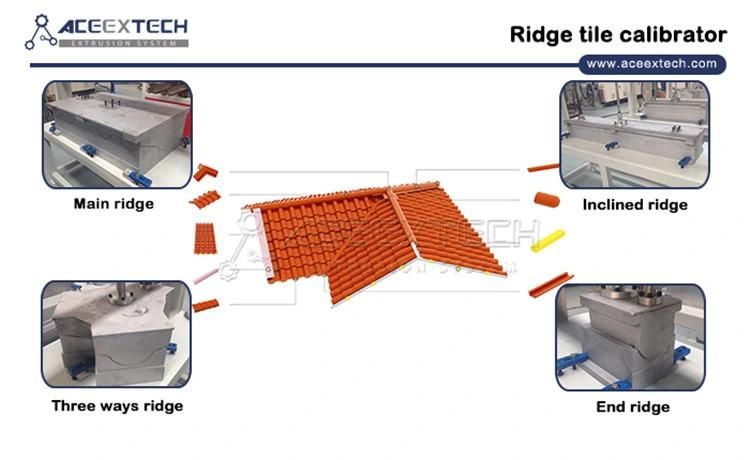

Ridge tile calibrator	-Hydraulic driving -High quality cast aluminum material -Double station heating oven is include
Stacker	-Stainless steel304 as touching material

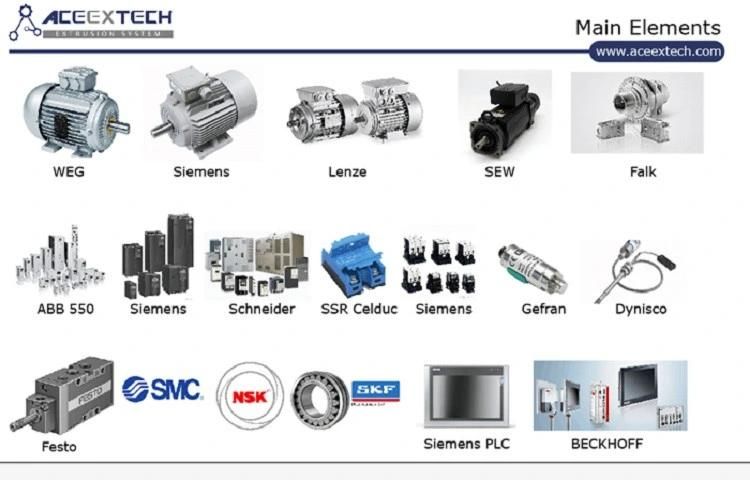

Main elements brand:-Motor: Siemens, WEG, SEW-Gear reducer: SEW, FALK-Bearing: SKF, FAG, NSK-Air cylinder: Festo, SMC, AirTac-PLC interface and module: Siemens, Schneider, Beckhoff-Frequency inverter: ABB, Schneider, Siemens-Servo motor: Lenze, Delta-Pressure sensor: Dynisco, Gefran-Low voltage component: Siemens, Schneider, Omron, LS-Temperature controller: Omron, RKC-Solid state relay: Crydom, Celduc



Technical Parameter:


Material	Width	Thickness	Extruder Model	Designed Output
ASA/PMMA+PVC	880/1040mm	1.8-3.0mm	ASS50/30+ACE80/156	350-400kg/h
ASA/PMMA+PVC	880/1040mm	1.8-3.0mm	ASS50/30+ACE92/188	500-550kg/h

Our service:

1. Ability to provide the customized plastic extrusion solutions;
2. Turn-key solution is pleased to be provided include plant layout and design, formula, production support etc;
3. Complete sales system covering the pre-sales, sales and after service jobs;
4. Professional sales team with local language speaking ability for English,Portuguese,Spanish, Turkish and Russian markets;
5. Commissioning & installation service in customer plant and free training to client labors.

In order to provide you the specific proposal, please advise:

1. Basic drawing of final product request to be provided;
2. Output capacity will be need;

Largely Advantages:

1. *Excellent machenical design
2. *Automatic intellegent control system
3. *Top brand components
4. *High safety protection system
5. *High efficiency
6. *High output
7. *Low energy consumption
8. *Less-labor cost

Service and support:

*Before-sale:
Introduce products professional
Project engineering

*During manufacturing:
Provide layout and engineering conditions
Inform the schedule of production
Make sure the product designed in accordance with technical document
Test machine before delivery
Provide photos before shipping

*After-sale:
Build customers database. All machines are traceable.
Overseas installation, commissioning and training are available
Speed up service and spare parts supply.
Visit customers and make quality trace periodically
