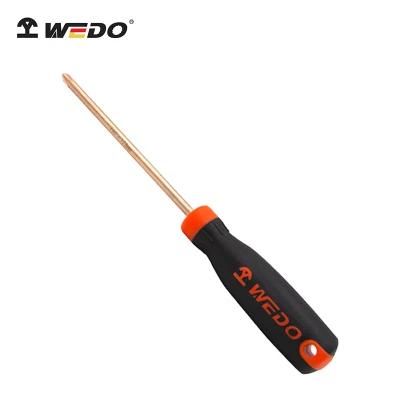

WEDO Non-Sparking Screwdriver Beryllium Copper Phillips/Cross Screwdriver Anti-Slip Handle Bam/FM/GS Certified

• Type：Phillips Screwdriver
• Material：Beryllium Copper
• Screw Head Type：Phillips
• Structure：Straight Type
• Brand：WEDO
• Size：Common

=== Base Info ===

• Model NO.：BE261
• Use Place：Inflammable and Explosive
• Adjusted：Unadjustable
• Folded：Unfolded
• Application Age：Adult
• Transport Package：Plastic Bag,Box,Carton,Pallet
• Trademark：WEDO
• Origin：China
• HS Code：8205400000
• Production Capacity：30000 Piece Per Year

=== Description ===
SIZE Beryllium CopperL1(mm)L(mm)Size(mm)N.W. (g)BE261-100250134035BE261-100475159170BE261-1006100205175BE261-10081252402100BE261-10101502652110BE261-10122003273165BE261-10142503773185BE261-10163004274245BE261-10183504774270BE261-10204005504295BE261-10224506004320Above item no. is only for Beryllium Copper material, Besides Beryllium Copper, WEDO also supply in Aluminium Bronze below are differences of two material.
Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%

To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC,  hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.
The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.

DETAILS AND APPLICATION
