Automatic Pet Bottle Blowing Machine for 5L One Cavity

=== Base Info ===

=== Description ===

Basic Info.

Model NO. GM-A1-5 Raw Material Pet Making Method of Parison Stretch Blow Automation Automatic Computerized Computerized Transport Package Wooden Case Specification 1cavity Trademark GM Origin China HS Code 8422301090 Production Capacity 20sets/Year

Product Description

Machine description

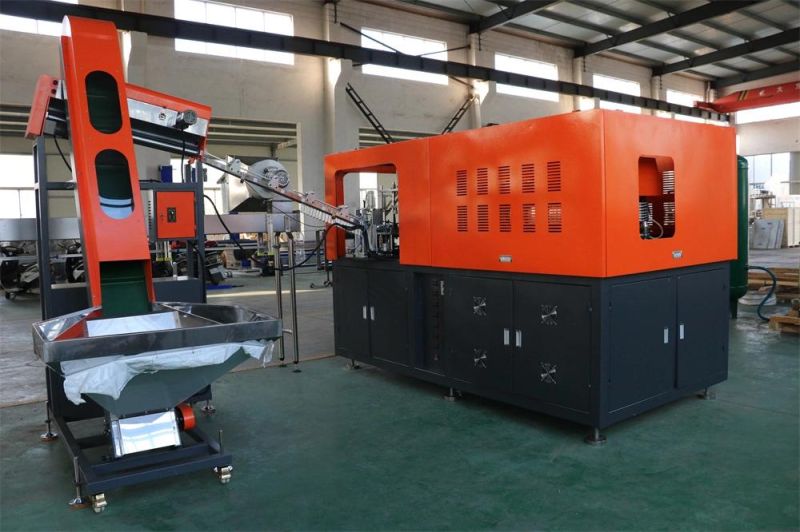

GM-A1-5 PET BOTTLE BLOWING MOLDING MACHINE
Suitable bottle :3L-6L
main parameters for blowing machine

model	GM-5L-1
Theoretical output	600pcs/h
Cavity	1
Max size	6L
Max neck diameter	50mm
Max container diameter	175mm
Total power	40kw
Use power	20kw
Working pressure	1.0Mpa
Low pressure consuming	1600L/MIN
Blowing pressure	<=3.5Mpa
High pressure consuming	2000L/min
Machine dimension	2.5x2.0x2.0m
Machine weight	2000kgs
Feeding loader dimension	2.0x1.0x2.2m
Weight of loader	22kgs

Glory machine in the world :
Russia, India ,Vietnam , Panama , ,Mongolia, Tajikistan ,Colombia ,Paraguay ,Guatemala  etc
