Deep Well Borehole Hydraulic Water Well Drill Rig

Hangzhou Aochi International Co., Ltd. / 2022-06-23

Deep Well Borehole Hydraulic Water Well Drill Rig

=== Base Info ===

=== Description ===

Basic Info.

Model NO. TZ-500 Drilling Way Impactor Type Crawler Power Hydraulic Configuration Portable Warranty One Year Transport Package Export Standard Specification 5400x1800x2480mm Trademark TZ Origin Guangxi Liuzhou HS Code 8430412900 Production Capacity 100

Product Description

Our TZ series water well drill rig is uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency,Reasonable overall layout uses the tractor-mounted or all terrain chassis for the transportation with good maneuverability.very flexible in difficult roads,it can be widely used in many fields,such as resource exploration of hydrology wells,coal bed methane,shallow layer of shale gas,terrestrial heat,ect,and can also be used for coal-mine gas exploitation or salvage work.TZ series well drilling rig have been exported to many countries

The top-mounted driving head principal shaft have a great drift diameter,which is suitable for many kinds of construction work such as mud pump drilling,air drilling and air foal drilling,meeting the demands of well drilling in different terrain strata

ModelTZ-400TZ-450TZ-550
Max drilling depth400m450m550m
Drilling diameter105-350mm105-400mm105-450mm
Adaptation conditionF=6-20F=6-20F=6-20
Recommendation Working pressure1.2-3.5MPa1.2-3.5MPa1.2-3.5MPa
Recommendation air consumption16-55m3/min16-55m3/min16-55m3/min
Drill Rod length3/6 m3/6 m3/6 m
Drill rod diameter89/102mm89/102mm102/114mm
Maximum propulsion8T8T10T
Maxumum lifting force18T20T25T
Fast forwarding speed55m/min55m/min55m/min
Fast lifting speed30m/min30m/min30m/min
Maximum  Rotation speed80/160r/min90/180r/min80/160r/min
Maxumum rotation torque7800/3900Nm9000/4500Nm10000/5000Nm
Drilling speed10-35m/h10-35m/h10-35m/h
Winch lifting force1.1T1.1T1.1T
Working speed2.5km/h2.5km/h2.5km/h
Grade ability212121
High leg stroke1.6m1.6m1.6m
Dimension5400x1800x2480mm5600x1900x2620mm5600x1900x2620mm
Drilling methodAir drilling  or
 Mud pump drilling
Air drilling  or
 Mud pump drilling
Air drilling  or
 Mud pump drilling
Engine88Kw92Kw110Kw
Total weight8.2T10.2T10.4T
Our component list:
Deep Well Borehole Hydraulic Water Well Drill Rig

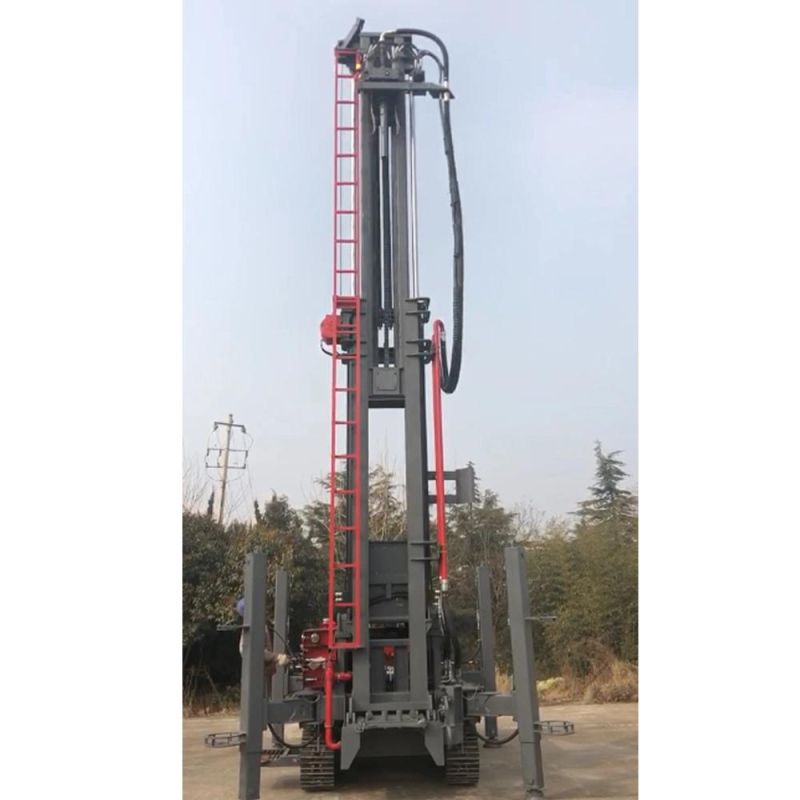

Products display:
Deep Well Borehole Hydraulic Water Well Drill Rig
Deep Well Borehole Hydraulic Water Well Drill Rig

Deep Well Borehole Hydraulic Water Well Drill Rig

Deep Well Borehole Hydraulic Water Well Drill Rig
