Customized Size Satinless Steel Chocolate Paste Storege Tank

• After-sales Service：Online
• Warranty：1 Year
• Certification：CE, ISO9001
• Power Source：Electric
• Process：Thermal Processing
• Automatic Grade：Automatic

=== Base Info ===

• Model NO.：BWG
• Application：Chocolate
• Customized：Customized
• Name：Chocolate Storage Tank
• Capacity：500L
• Driven Type：Electric
• Certificates：SGS, Ce, ISO9001
• Jacket Temperature：40~65ºC
• Outer Dimension：ø1000*1380mm
• Weight：350kg
• Motor Power：1.5kw
• Usage：for Storage Chocolate Paste
• Transport Package：Standard Wooden Case
• Specification：CE, ISO9001-2008
• Trademark：Gusu Machinery
• Origin：Suzhou, Jiangsu, China
• HS Code：8438800000
• Production Capacity：500sets Per Month

=== Description ===

Basic Info.

Model NO. BWG Application Chocolate Customized Customized Name Chocolate Storage Tank Capacity 500L Driven Type Electric Certificates SGS, Ce, ISO9001 Jacket Temperature 40~65ºC Outer Dimension ø1000*1380mm Weight 350kg Motor Power 1.5kw Usage for Storage Chocolate Paste Transport Package Standard Wooden Case Specification CE, ISO9001-2008 Trademark Gusu Machinery Origin Suzhou, Jiangsu, China HS Code 8438800000 Production Capacity 500sets Per Month

Product Description

 Customized Size Satinless Steel Chocolate Paste Storege Tank

Size:Customized Volume;
Motor: Semens Beide or ABB or other international brand;
Material: stainless steel

Chocolate tanks are a crucial step in chocolate production - between the tempering and final molding phase. If you want delicately molded chocolates, the chocolate must be kept at the correct consistency and temperature. A highly advanced chocolate tank is the only way to achieve such results and exactly why you should choose GUSU as your machine suppliers.

From 100L to 5,000L and higher in the standard range of vertical tanks. Larger capacity vertical and horizontal tanks can be built to suit your specific need. These fully China made storage tanks are used to store finished liquid masses like chocolate, at a required temperature and are continuously moved by means of the stirrer in one direction. A heavy duty stirrer guarantees a continuous agitation of the mass. Water temperature in the jacket is controlled by means of a thermostat control which is governed by the setting on the control panel.


Technical Parameter:

Model	Capacity(L)	Motor power(kw)	Weight(kg)	Outer Dimension(mm)
BWG50	50	0.75	120	Φ490*750
BWG100	100	0.75	150	Φ600*900
BWG200	200	0.75	190	Φ700*1220
BWG300	300	0.75	200	Φ940*1000
BWG500	500	0.75	350	Φ988*1520
BWG1000	1000	1.5	470	Φ1220*1620
BWG2000	2000	3.0	950	Φ1510*2060
BWG3000	3000	4	1300	Φ1830*2080
BWG5000	5000	5.5/7.5	3500	Φ1930*2720
BWG6000	6000	5.5/7.5	4200	Φ2130*2785
BWG7500	7500	11	5200	Φ2600*3050

About Gusu

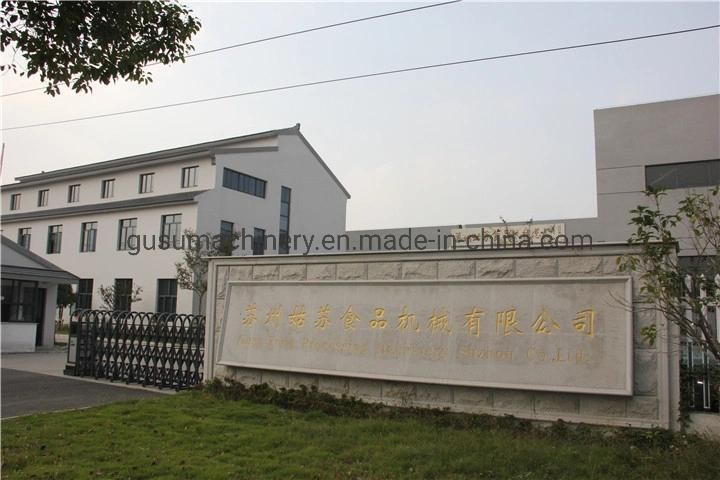

Gusu Food Processing Machinery Suzhou Co.,Ltd., formerly known as Gusu General Works of Food Processing Machinery Suzhou, founded in 1969, is also the first enterprise making complete sets of chocolate machinery in China and honored as "the Mother of Chocolate in China".

FAQ:

1 How to Order
1. Customer send us an inquiry.

2. Confirmmachine type, order quantity, price, lead time, payment term etc.

3.Our sales send the Proforma Invoice with company seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time

6. Production products photos will send to you for approval.

7. Clients make payment for balance and Ship the goods .

8. Order is finished when you receive the goods and satisfy with them .

9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service

Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping

We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service

24 hours online to solve any problem .

Your email will be reply within 12 hours .

Your satisfy is our pursuit .sincerely hope our cooperation
