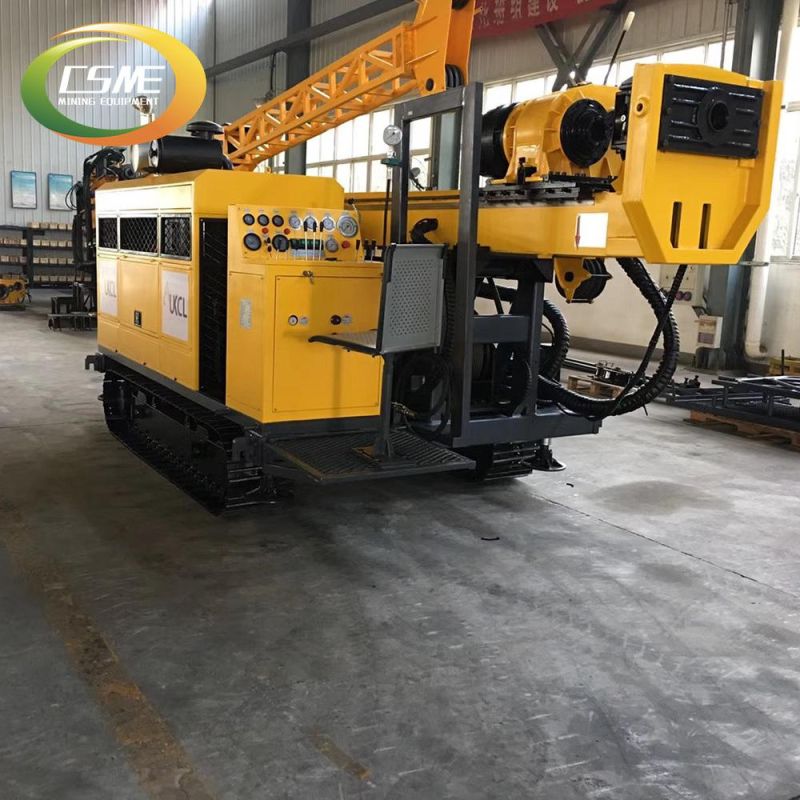

Track Mounted Diamond Hydx-5A Core Drilling Rig for Hot Sale

Guangzhou Sunrise Digital Technology Co., Ltd / 2022-06-23

Track Mounted Diamond Hydx-5A Core Drilling Rig for Hot Sale

=== Base Info ===

=== Description ===
Diesel EngineModelCummins 6CTA8.3-C195 (turbocharged and charge water cooled)Displacement8.3L (2.19 US Gallons)Power145kW (195HP)Rated RPM(Factory setting)1900rpmDrilling CapacityBQ1500 m(4920 feet)NQ1300 m(4264 feet)HQ1000 m(3280 feet)PQ680 m(2230 feet)Drill HeadRotation MotorDouble Hydraulic Motors -variable and ReversibleRPMTwo Shifts/ Stepless Change 0-1145 RPMRatios1st     8.776:1Head Openersidewise sliding way with hydraulic driveHydraulic Chuck(PQ)Hydraulically opened, Disc Spring Clamping, Normally Closed TypeMax. Torque4650 N·m(3427 lbf·ft)Hold Diameter121 mm(4.76 inch)Max. Lifting capacity of Spindle150 kN(33720 lbf)Max. Feeding Power75 kN(16860 lbf)Capacity of Main HoistHoisting Speed (single wire)38-70m/min(bare drum)Hoisting force (single wire)77kN(17310 lbf)Steel Wire Diameter18 mm(0.71 inch)Steel Wire Length50 m(164 feet)Capacity of Wireline HoistHoisting Speed (single wire)164m/min (bare drum)Hoisting Force (single wire)12 kN(2698 lbf) (bare drum)Steel Wire Diameter6 mm(0.24 inch)Steel Wire Length1500 m(4920 feet)MastMast Height12m(39.37 feet)Mast Adjusting Angle0°-90°Drilling Angle45°-90°Feeding Stroke3800 mm(150 inch)Slippage Stroke1100 mm(43.3 inch)Feed Pull15000kg(33075 lb)Feed Thrust7500kg(16538 lb)Rod Pull3m or 6m(9.84feet or 19.68feet)Mud PumpTypeReciprocating Pump Triplex PlungerModelBW250Stroke100mm(3.9 inch)Output volume250,145, 90, 52 L/minDischarge pressure2.5, 4.5, 6.0, 6.0 MpaFoot ClampClamping Scope55.5-117.5 mm(2.19-4.63 inch)OtherWeight12500 Kg(27558 lb)Dimensions (L × W ×H )6250×2220×2500mmTransport WaySteel CrawlerTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot SaleTrack Mounted Diamond Hydx-5A Core Drilling Rig for Hot Sale
