Automatic Roll Metal Coil Cut to Length Line Laser Cutter Machine

• After-sales Service：Lifelong
• Warranty：12 Mouths
• Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry, Auto, Steel Industry
• Cooling System：Natural Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal

=== Base Info ===

• Model NO.：ZCL-4x1600
• Structure Type：Desktop
• Laser Classification：Laser Cutter Machine
• Laser Technology：Cut to Length Machine
• Material Thickness：4mm
• Material Width：1600mm
• Finished Length：5000mm
• Length Accuracy：0.3mm
• Diagonal Accuracy：0.5mm
• Leveling Accuracy：1mm,M2
• Line Speed：60m,Min
• Coil Weight：25 Tons
• Equipment Colour：Customized
• Option：Film Applicator, Stick Paper Machine
• Colour：Customized
• Transport Package：Seaworthy
• Specification：30m L X 10m W
• Trademark：ZeYe
• Origin：China
• HS Code：84623120
• Production Capacity：60

=== Description ===

Basic Info.

Model NO. ZCL-4x1600 Structure Type Desktop Laser Classification Laser Cutter Machine Laser Technology Cut to Length Machine Material Thickness 4mm Material Width 1600mm Finished Length 5000mm Length Accuracy 0.3mm Diagonal Accuracy 0.5mm Leveling Accuracy 1mm/M2 Line Speed 60m/Min Coil Weight 25 Tons Equipment Colour Customized Option Film Applicator, Stick Paper Machine Colour Customized Transport Package Seaworthy Specification 30m L X 10m W Trademark ZeYe Origin China HS Code 84623120 Production Capacity 60

Product Description

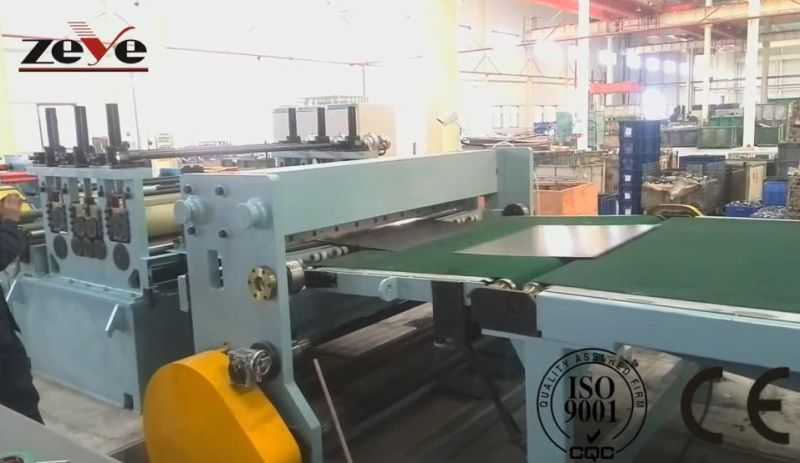

Cut to length line ZCL series
Cut to length line is mainly used for jobs like uncoiling, leveliing, measuring, cutting to length and stacking of kinds of materials, such as cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.

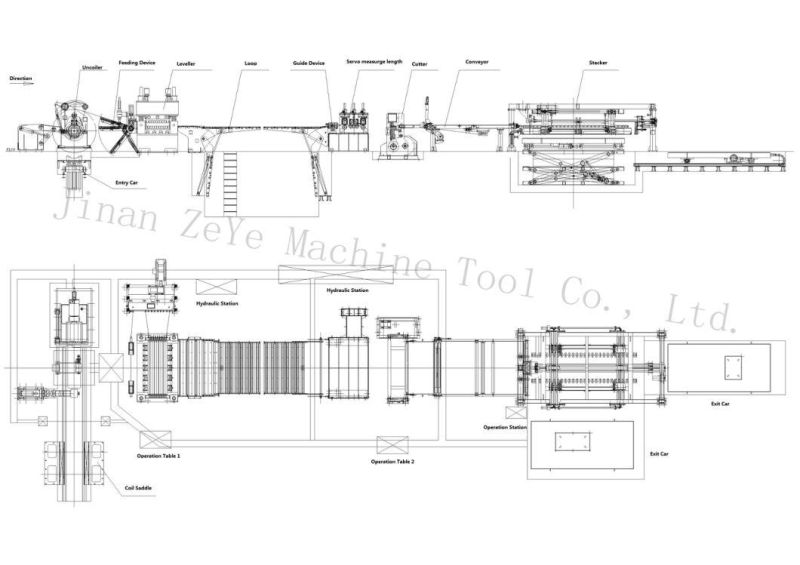

Main Units

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Feeding device	1 set
4	Precision leveler	1 set
5	Looper	1 set
6	Side guide	2 sets
7	Servo measure the length	1 set
8	Shear	1 set
9	Conveyor belt	1 set
10	Stacker	1 set
11	Blower	1 set
12	Exit coil car	1 set
13	Hydraulic system	1 set
14	Electrical system	1 set

Main Technical Parameters

Model	ZCL-1	ZCL-2	ZCL-3	ZCL-4
Material thickness	0.2-1.0mm	0.3-2.0 mm	0.4-3.0 mm	0.5-4.0 mm
Material width	300-1250 mm	300-1600 mm	300-1800 mm	300-1800 mm
Finished length	300-3000 mm	300-3000 mm	300-4000 mm	400-6000 mm
Length accuracy	<±0.3 mm	<±0.3 mm	<±0.3 mm	<±0.3 mm
Diagonal accuracy	<±0.5 mm	<±0.5 mm	<±0.5 mm	<±0.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1 mm/m2	<1 mm/m2
Line speed	70 m/min	60 m/min	60 m/min	60 m/min
Coil weight	5,10,15 t	10,15,20 t	15,15,20 t	20,25,30 t

Our advantages

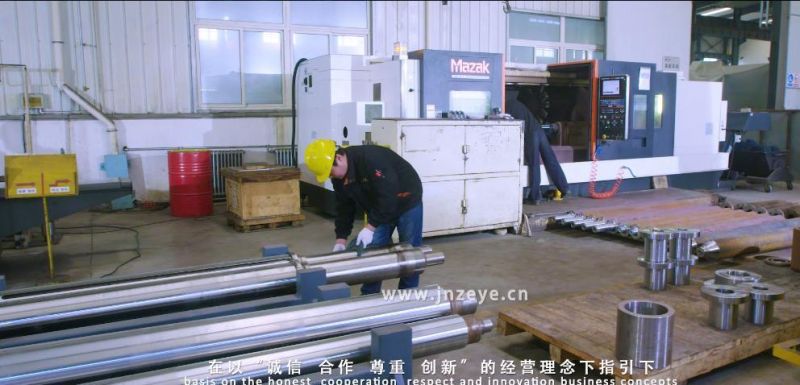

1. Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced
processing equipments. Which can ensure to produce out high precision parts.

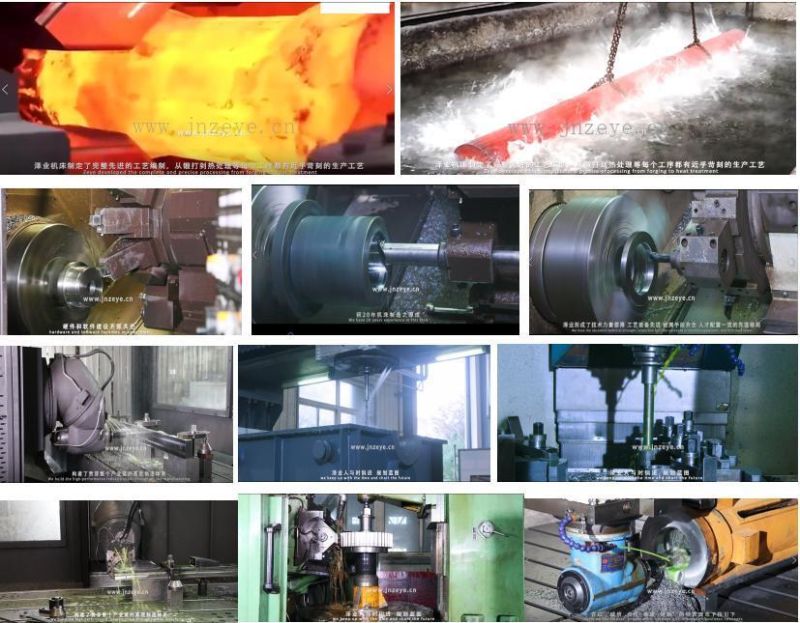

2 Every part has been finished it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.

3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.

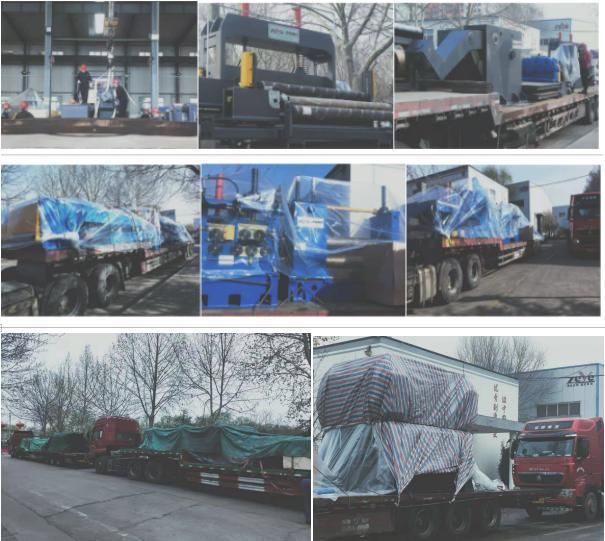

Packing and Delivery




Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

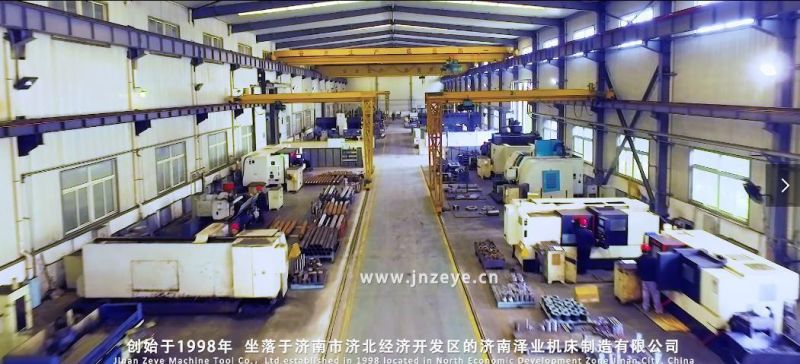

Company introduction



Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.

We have one professional technical team and after sales service team, we are ready to serve you at any time.





Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.


Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
