Manufacturer of Fiber Laser Cutting Machine and CO2 Laser Engraving Cutting Machine
Hangzhou Mig Packaging Co., Ltd. / 2022-06-23
- Warranty：2 Years
- Application：Leather Industry, Carpentry, Printing & Packaging, Crafts Industr, Advertising Industry
=== Base Info ===
- Model NO.：FLC1390N
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Automatic
- Applicable Material：Nonmetal
- Type：Oscillating Mirror
- Laser Classification：Gaseous Laser
- Engraving Method：Vector Engraving
- Certification：CE
- Usage：Wood, Acrylic, Leather, Paper, Rubber, Marble.
- Working Area：900*600mm,1300*900mm
- Laser Power：CO2 60W-500W
- Cooling Way：Water Cooling
- Location Precision：Less Than 0.01mm
- Focusing Way：Auto Focus
- Delivery Time：in 7 Days
- Transport Package：Plywood
- Specification：9060,1390,1325
- Trademark：FLYING
- Origin：China
- HS Code：8456100090
- Production Capacity：100PC,Month
- Package size per unit product：168.00cm * 118.00cm * 128.00cm
- Gross weight per unit product：450.000kg
=== Description ===
Uses color property to set function, speed, and laser power Advantages: 1) Materials can extend through the front and rear doors to allow for a larger work product. 2) Red-Dot pointer to help you see the expected laser beam position. 3) Auto Focus laser head makes higher precise cutting and let operation more convenient. 4) Wifi receiver is more convenient for the operator to transmit the files to the machine. 5) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise. 6) The new laser power supply has a voltage regulation function, which is more reliable and safe, and has a longer life. The newly developed improved current control method has more stable light output, fast engraving response and sufficient cutting power. 7) New laser tubes with the latest technology, improves the stability of the product structure, and improves the beam-spot output mode. Compared to other products, it has features of "excellent beam spot, longer beam-convergence, and easy installation".
Machine details :
Quiet design
Self-lubricating cleaning system, low friction coefficient during back-and-forth movement, to achieve mute effect.High precision
The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and high precision.
Fast Speed & Long Lifespan
Light weight, small inertia, stable operation, fast acceleration & deceleration response. High rigidity material to ensure high straightness. The slider of the linear module and the guide rail are matched with zero clearance to ensure its long service life. New Intelligent Laser Power Supply
The new laser power supply has a voltage regulation function, which is more reliable and safe, and has a longer life. The newly developed improved current control method has more stable light output, fast engraving response and sufficient cutting power.
High quality laser head
Beautiful appearance, easy to use and adjust, small slit, good engraving and cutting effect. With auto focus function it can let your work more convenient. Newly Developed Laser Tube

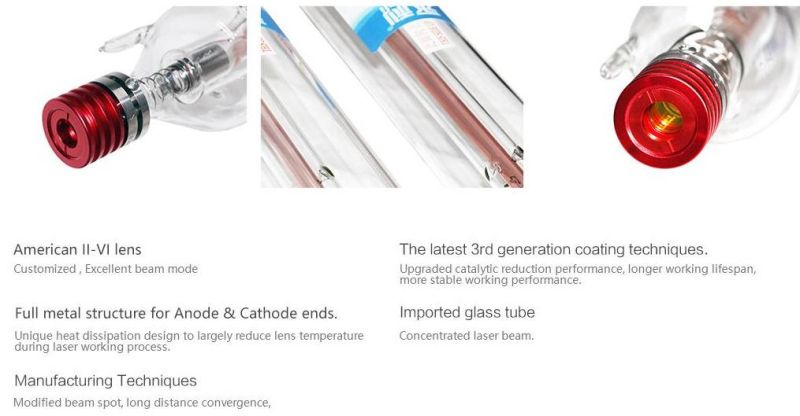

Adopt the latest technology, improves the stability of the product structure, and improves the beam-spot output mode. Compared to other products, it has features of "excellent beam spot, longer beam-convergence, and easy installation".
We offer the most complete lineup of laser machines on the market today. Our machines are capable of handing about any material imaginable. Take a look at some of the most popular materials and applications.
FAQ: 1. Q: Can the machine engrave and cut? A. Yes, even on the same Job, you can do settings with different colors in the software and also can make holes. 2. Q: Can the machine cut metals? A. Co2 laser with high power(180w, 300w, 500w) can cut max 2-3mm steel, if you want to cut thicker metals, we suggest fiber laser, please contact us for solutions. 3. Q. Is the machine must work with computers? A. Must connect with computer with USB cable when you change the settings of the machine. for the design files, you can transfer the file with a USB memory stick to the machine, Or can download it to the machine directly with a USB cable from the computer, also the machine support WIFI.. 4. Q. Can the machine be split so it can fit into my doors? A. Such as laser engraving cutting machine model of FLC9090, FLC1390, which can the legs separate from the main body of the machine. 5. Q. How long has the laser tube been working well? A. Around 10,000 working hours for co2 laser tube and 100,000 hours for fiber laser 6. Q. Can you explain what the differences are between the different watt Co2 laser tubes? A: Usually, the power of the laser tube is decided by two parameters: 1. The length of the laser tube( The longer the laser tube, is the more powerful). 2. The Diameter of the Laser tube (The bigger the laser tube, the more powerful). AND bigger watt laser tube can cut thicker materials, however, a bigger watt has a big laser beam, therefore, For engraving, It's better to use small watt laser tube-like 60watt, 80watt or 100watt.) 7. Q.How do I know the laser tube is nearly used up? A: The normal color of the laser beam is purple while working. When a laser tube is dying the color will become white 8. Q. I knew nothing about this machine, what kind of machine i should choose? A:Just tell us what material you want to do by using the laser machine, then let us give you perfect solutions and suggestions. 9. Q. How about your payment terms? A: You can transfer 30% or 50% advance payment to us, we start to make the machine for you, and when the machine finish, we will show video or photo to you, you pay the balance payment to us, here we arrange the shipment for you. 10. Q. Who can help me transport the machine? A: Just tell us what material you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions. 11. Q. When I got this machine, but I don't know how to use it. What should I do? A: We will send teaching video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype/whatsapp and e-mail. 12. Q. If some problems happen to this machine during warranty period, what should I do? A: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
